Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock
Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock
Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock
Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock
Specifications
Brand Name :
VIANS
Model Number :
VI-702
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T , , Paypal
Supply Ability :
10,000pcs per month
Delivery Time :
2-5working days after received your payment
Packaging Details :
60 pcs/cartons
Lock Size :
124Lx32Wx33H(mm)
Security Mode :
lock or Open when power off(NO or NC)
Input Voltage :
DC12V±10%
Working Current :
220mA
Signal :
Optional
Material of Housing :
Stainless Steel
Suitable for :
Wooden & Aluminum & Glass & Fireproof &Metal door
Warranty :
1 year
Description

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

The VIANS Electric strike door lock has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.

Product Parameter

Name Electric Strike Door Lock
Shear strength 1600Lbs(800kg)
Lock Status Sensors Optional
Rated Operating Voltage DC12V
Standby Current 220mA
Security Type Locked when energized / open when energized
Face place material Stainless Steel

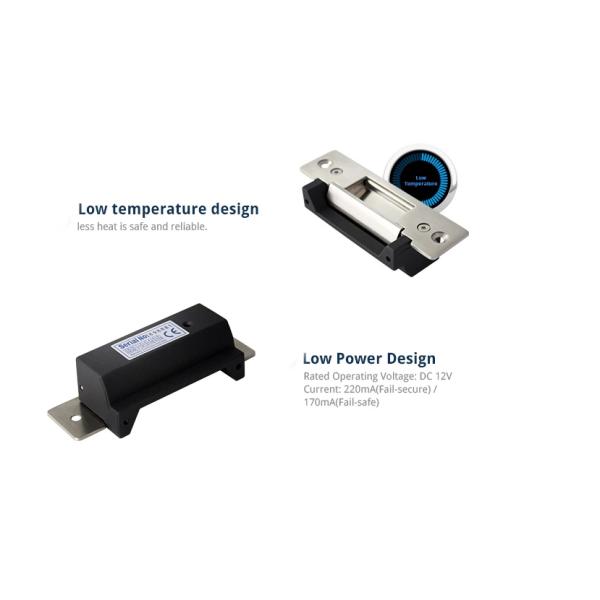

Surface Temp Low Temperature
Ambient temperature in °C -10°C - +55°C
Suitable for Wooden & Aluminum & Glass & Fireproof &Metal door
Weight 0.34kg


Product Feature

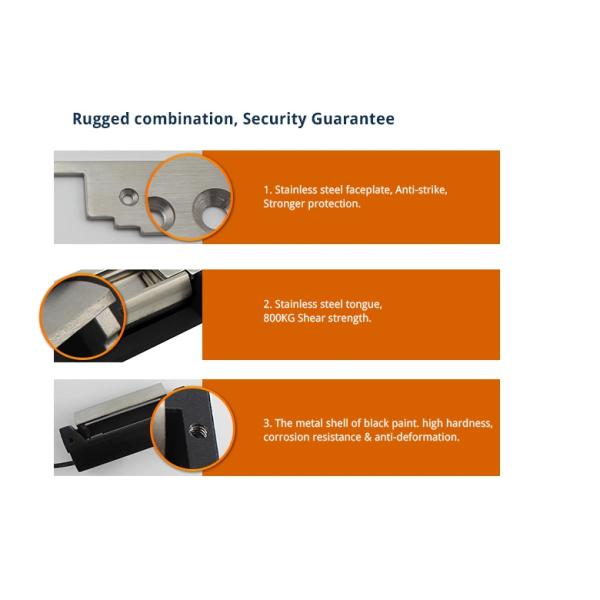

1. Bear 800kg impact pressure electric strike door lock.

2. Special design, the lock bolt can adjust the distance.

3. It is especially suitable for the metal frame with hole for directly installation.

4. Pass the 500 000 times of aging test.

5. Products pass the CE, FCC and ROHS certification.Fire Test report.

​6. Two modes optionally: Fail safe or Fail secure

7. Suitable for US Market:ANSI standard electric for US Market

Deails Show:

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

Stainless Steel Fail Safe 1600Lbs Electric Strike Door Lock

FAQ

Q: How do I pay for my purchase?
A: we accept the following payment methods:T/T;/PAYPAL in advance.

Q: How much does it cost to ship to my country?
A: Please tell us your receive goods address, we will check the shipping cost for your reference

Q: Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q: Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q: I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!

Locked when energized / open when energized
