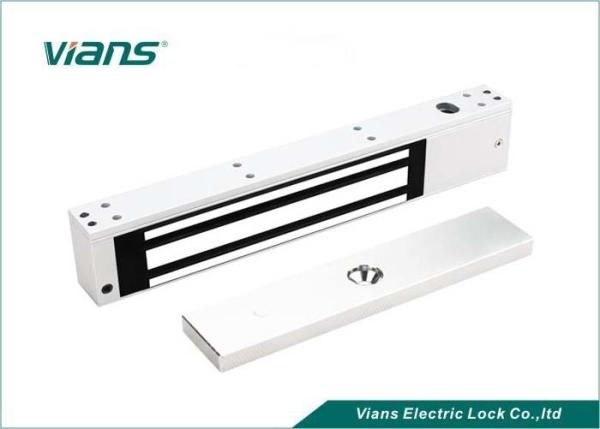

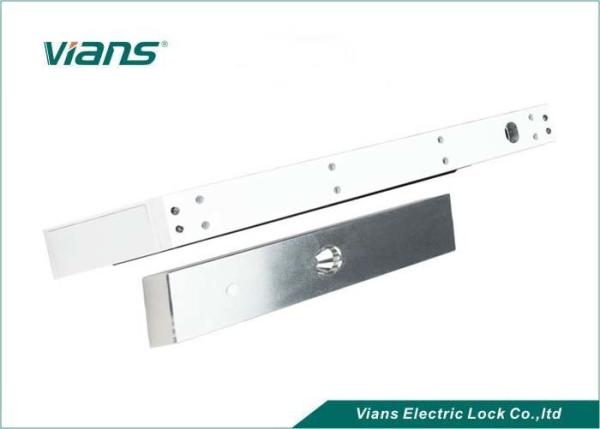

600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
600Lbs 280KG Electric Magnetic Door Lock For Intelligent Buildings
Specifications
Brand Name :
VIANS
Model Number :
TK-280AS
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, ,PAYPAL
Supply Ability :
20000PCS/MONTH
Delivery Time :
3-7 Working days
Packaging Details :
12PCS/CARTON
Name :
Electric Magnetic Door Lock
Lock Size :
250L*47W*26H(mm)
Armature Plate Dimension :
180L*38W*11H(mm)
Holding Force :
280kg(600Lbs)
Signal output :
LOCK signal + Door signal output
Input Voltage :
DC12V or DC24V
Working Current :
12V/480mA 24V/240mA
Door Type Applicable :
Wooden door , Glass door ,Metal door , Fireproof door
Time Delay :
YES or NO for option
Security Type :
Power off to open
Weight :
2kg
Description
high quality 280kg 600lb magnetic lock with sensor for sliding glass door magnet lock

Magnetic locks can be customized in large quantities in acceptable colors and sizes. Our 14years of lock-making experience will escort your product quality.

The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic,when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. magnetic lock are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become
convenient, fast and intelligent tool for global users, gain good reputation from the customers.

Advantage of the products
Shell is made of high-strength aluminum alloy, Anodized.
1. Increase the holding Force, Dual Insulative Hosing.
2. MA certified products of China / CE certification of EU.
3. Complete electromagnetic suction working no mechanical failure.
4. Collinear Load Test 280KG(600Lbs).
5. Dual Voltage 12 or 24 VDC(optional).
6. Built-in reverse current protection device (MOV).

7. Anti residual magnetism design, anti-wear manufacturing materials.

Specification
Product Parameter
Parameter Description
Lock Size
250L*47W*26H(mm)
Armature Plate Dimension
180L*38W*11H(mm)
Holding Force
280kg(600Lbs)
Signal output
LOCK signal + Door signal output
Input Voltage
DC12V or DC24V
Working Current
12V/480mA 24V/240mA
Door Type Applicable
Wooden door , Glass door ,Metal door , Fireproof door
Time Delay
YES or NO for option
Security Type
Power off to open
Weight
2kg
Product Description

Packing & Delivery
