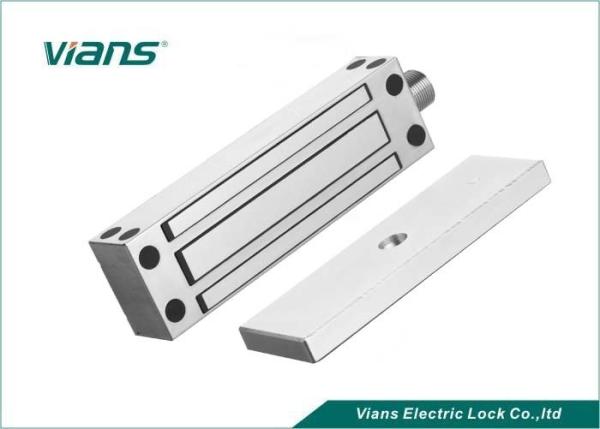

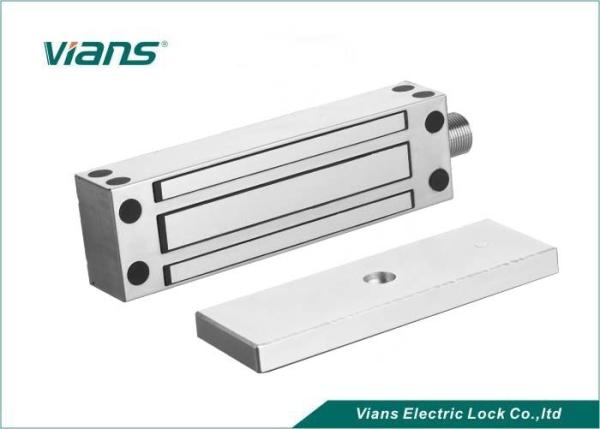

280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock
280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock
280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock
280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock
Specifications
Brand Name :
VIANS
Model Number :
VI-280ASW
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, ,PAYPAL
Supply Ability :
20000PCS/MONTH
Delivery Time :
3-7 Working days
Packaging Details :
10pcs/carton
Lock Size :
210L*42W*28.5H(mm)
Armature Plate :
185L*38W*12H(mm)
Input Voltage :
DC12V or 24V
Working Current :
460mA/220mA
Operating Temp :
-10~+55(14-131F)
Humidity :
0~90%(non-condensing)
Door Type :
Wooden door/ Glass door/Metal door/Fireproof door
Weight :
2.3kg
Description

280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock

280kg waterproof single door electromagnetic lock magnetic locks for outdoor lock

The design of magnetic locks is the same as the electromagnet.By using the principle of electomagnetic,when current passes through the silicon steel sheet,magnetic locks will produce powerful suction,thereby help to tightly absorb iron plate.Every small current produce huge magnetic force,which can effectively control the door.

Vians magnetic locks adopt international leading production equipment and packaging technology,which not only makes our locks' antioxidant capacity of the surface reach the international leading level ,but also helps to increase the holding force(higher 20% than other manufactures).

Feature:

1. Two Years Warranty

2. CE/FCC/RoHS certifications, and UL listed.

3. Pin-type PCB, easy for maintainance.

4. High-strength aluminum alloy, Anodized.

5. Holding force: 250-280KGS for 280KG(600Lbs) standard.

6. Optional Bracket: ZL,L, U Bracket

Specification
Lock Size
210L*42W*28.5H(mm)
Security Mode

Power off to open

Voltage

DC12V or DC24V

Working Current

12V/460mA or 24V/220mA
Armature Plate Dimension

185L*38W*12H(mm)
Holding Force

280kg(600lbs)
Lock signal output
Yes
Door Applicable

Wooden/Glass/Metal/Fireproof door
Certificate

CE/FCC/ROHS

Our Company

Company Information

Our factory has been in this industry for more than 14 years. Thanks for the trust of all of our customers, we have developed rapidly in the last ten years. Now we have succeeded in gained UL mark for some of our product. UL has approved the quality of our factory and products. Our products are strictly according to UL standard. Bellow is the screenshot from UL official website, and you can also check by yourself on UL official website.

280kg Waterproof Electric Magnetic Lock Single Door Outdoor Lock

To promote Vians brands and talk with more friends face to face in this industry, we are trying to attend to many exhibitions in China and abroad. Now more and more people in this industry has known Vians and some of them have established a business relationship with us.

FAQ

Q:Are you a trading company or a manufacturer?

A: We are a manufacturer in Shenzhen,Guangdong, China expertised in smart lock for over 13 years.

Q: Can I get a catalogue of your door lock?

A: Yes. Please send us a message or request in the form below.
We will e-mail our comprehensive brochure in PDF to you very soon.

Q: Can I have our own logo on product and packing?

A: Yes. We can imprint or laser the logo on product, and can print/sticker the logo on packing as well.

Q:When is your delivery date?

A: The delivery time is about 3-5 days after receiving the payment.

Q: What kind of transportation will you choose to dilivery the goods?

A: We support various transportation like post, express, by air or by sea.
