Touch Free Electric Gate Operator 60dB Auto Door Closer
Touch Free Electric Gate Operator 60dB Auto Door Closer
Touch Free Electric Gate Operator 60dB Auto Door Closer
Touch Free Electric Gate Operator 60dB Auto Door Closer
Specifications
Brand Name :
VIANS
Model Number :
VI-PW180
Certification :
CE/ROHS/FCC
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T,Paypal
Supply Ability :
5000 one month
Delivery Time :
4-7 days
Packaging Details :
2pcs/carton
Name :
Electric Gate Operator Automatic Door Closer
Max. torque force :
80Nm
Opening Direction :
Single
Max. Door Weight :
100KG
Max. Door Width :
1200mm
Working Current :
45W
Input Voltage :
220V, 110V option
Working Life :
>=200 Ten Thousand Times
Opener Size :
330*80*120mm
Certificate :
CE,ROHS,FCC
Description

Touch Free Electric Gate Operator 60dB Auto Door Closer

Product Overview:

Electric Gate Operator Automatic Door Closer is the best partner for intelligent access control system. With the development of technology and the continuous improvement of people's living standards, Outdoor swing gate operator have been increasingly used in dailylife. VIANS PW180 Outdoor swing gate operator becomes the excellent solution for the the problem of the transition from ordinary doors to fully automatic doors,that make you open the door easier,more convenient and safer. It is widely used in many smart building, convenient for all of us.

Production Features:

1) Specially designed for residential unit doors and pedestrian access doors.
2) Automatic door closer for access control system.
3) Opening/closing speed, opening angle, time can be adjustable.
4) No noise, faster and convenient.
5) Waterproof design.
6) Perfectly working with any access control system and electric magnetic lock and electric bolt lock.
7) 90 degree windproof mode, when opening in correct position, it can prevent the wind from stopping the door.
8) Brushless dc motor, can run continuously without interval.

Details of Electric Gate Operator Automatic Door Closer

Electric Operator:

Touch Free Electric Gate Operator 60dB Auto Door Closer

Unit parameter sheet:

Model Light type(VI-PW180)
Torque force 80Nm
Arm Length Short arm or long arm
Max door width 1.2m
Max door weight 100kg
Installation type Plug-in
Noise ＜60dB
Elctroc lock output 12V,500mA
Opening door speed 3-8S
Staying time 1-30S
Power supply 220V±10%,50Hz
Rated current ＜1A
Max power 45W
Standby power ≤6W
Operating temperature -40～85℃
Working life Continuous operation 2 million times without failure
Protection level IP66
Unit size 330×80×120mm

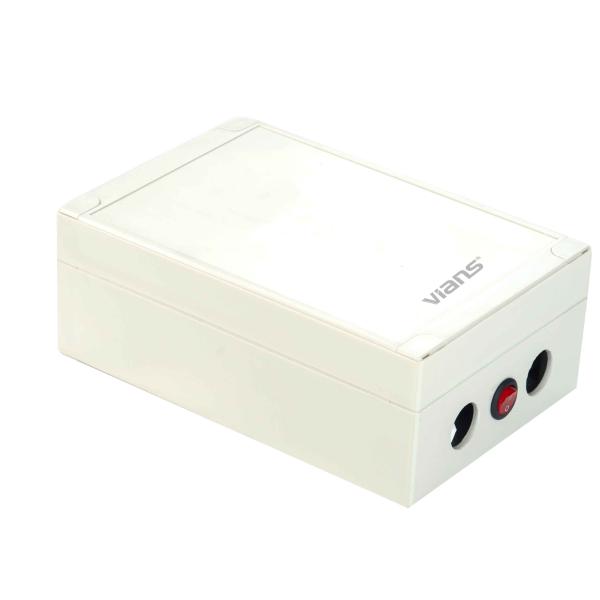

Control box

Touch Free Electric Gate Operator 60dB Auto Door Closer

Touch Free Electric Gate Operator 60dB Auto Door Closer

Control box parameter sheet:

Model MPC-1100
Opening door time 3-8S Adjustable
Opening range 45°- 135°Adjustable
Elctroc lock output DC12V NO/NC contact
Power supply 220V±10%,50Hz
Rated current ＜1A
Standby power ≤6W
Max power 45W
Operating temperature -40℃-85℃
Control box size 240×160×90mm

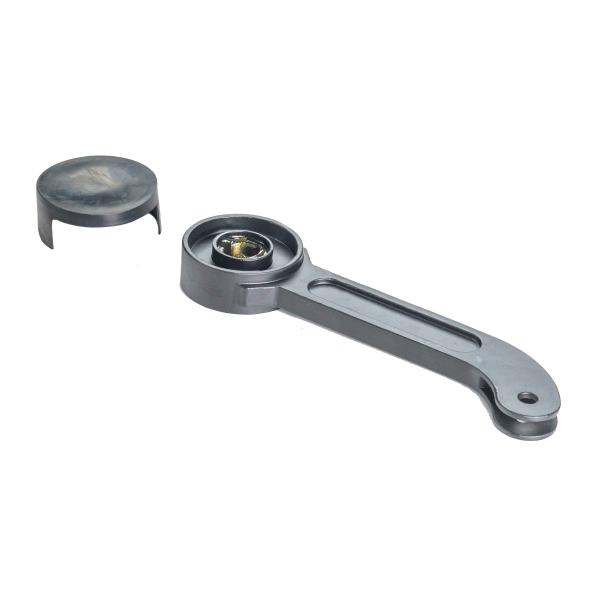

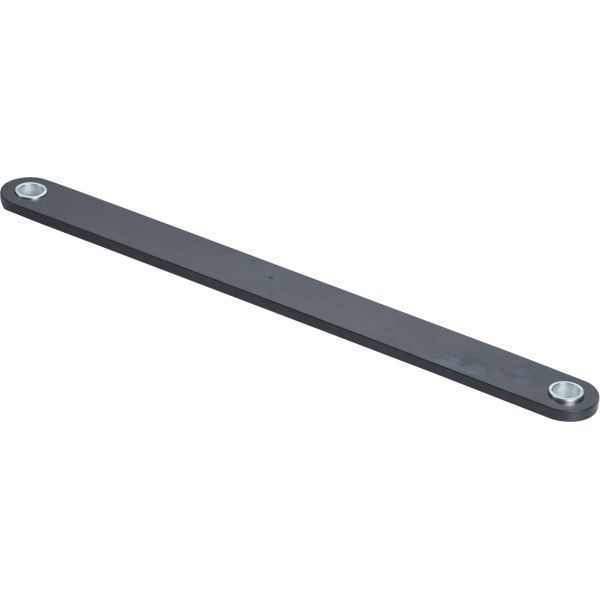

Accessories

Touch Free Electric Gate Operator 60dB Auto Door Closer

Touch Free Electric Gate Operator 60dB Auto Door Closer

Touch Free Electric Gate Operator 60dB Auto Door Closer

Optional accessories:

Touch Free Electric Gate Operator 60dB Auto Door Closer

Company profile

Shenzhen Vians Electric lock Co., Ltd is one of the leading of professional electric locks manufacturers in China, which was established in 2007.we are dedicated to Magnetic lock, Electric Bolt, Electric Strike, Electric rim lock, Magnetic Lock Bracket, Automatic door opener, Switch and so on. Vians is an integrated company with independent design, development, production, sales as well as services. Vians electric lock owns advanced production equipment. All of our products passed CE and the related quality inspection and test of ministry of Public Security by our country. They complywith international standards and security requirements. Now our products are widely used in airport, subway, banks, prisons, intelligent building, intelligent community and other important places. It provides convenient, fast, intelligent access management for the global customers. Compared with other company’s electric lock, we have more stable performance, more competitive price and more personalized service. So far our electric locks have been exported to more than 60 countries and areas successfully and have obtained an extensive recognition from clients in our domestic and abroad.

Company show

Touch Free Electric Gate Operator 60dB Auto Door Closer

FAQ:

Q:How do I pay for my purchase?
A:we accept the payment methods as follow: cridet card; moneybooker;T/T;.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A:Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?

A:We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A:Hi,very glad to get your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
