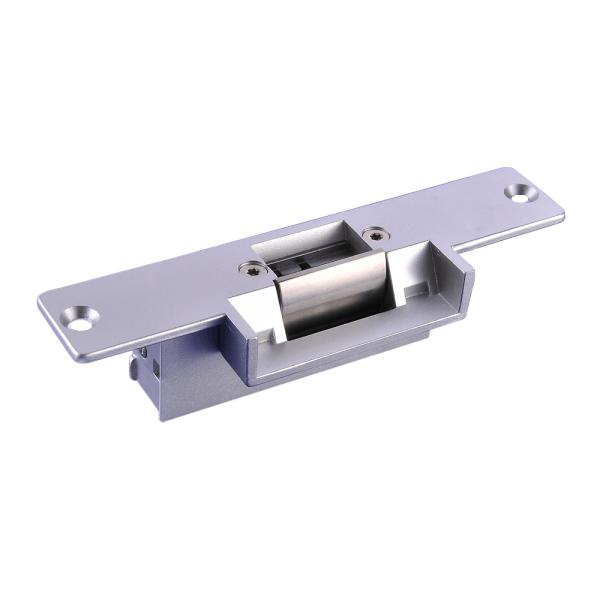

Stainless Steel 500KG 12VDC Electric Strike Lock For Door
Stainless Steel 500KG 12VDC Electric Strike Lock For Door
Stainless Steel 500KG 12VDC Electric Strike Lock For Door
Stainless Steel 500KG 12VDC Electric Strike Lock For Door
Specifications
Brand Name :
VIANS/OEM
Model Number :
VI-700
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T,,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
60pcs/carton
Lock size :
150*40*28
Holding force :
500kg
Lock structure :
Stainless steel
Input voltage :
DC12V+-10%
Working current :
200mA
Door type applicable :
Wooden door/metal door/PVC door
Signal output :
Optional
Security type :
Lock when power off
Waranty :
1 year
Description

Stainless Steel 500KG 12VDC Electric Strike Lock For Door

500KG Holding Force DC12V Input Fail Secure Electric Strike lock for Door

The electric strike lock has the similar working principle as the electric bolt lock, it must work with the mechanical lock, so the range of application is small. And it is often used for ordinary wooden door, with the notch of strike sucking the bolt of door, it can lock or open the door. By embedded installing, our products looks excellent. The electromagnetic part is made of high quality magnetic material and adopted specially technology processing, thereby there is no residual magnetism after long time working, then can prove the normal use of the strikes. Moreover, our strikes can support the door with 90 degree opened. At last, with hardness stainless steel material, our stike can bear 800kg impact pressure.

Stainless Steel 500KG 12VDC Electric Strike Lock For Door

Product Parameter

Product Parameter Parameter Description
Lock Size 150Lx40Wx28H(mm)
Certificate CE/FCC/ROHS
Input Voltage DC12V±10%
Working Current 200mA
Opening Mode 90 Degree Swing Door
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay NO
Signal output Optional
Security Type Locked when energized / open when energized
Weight 0.3KG

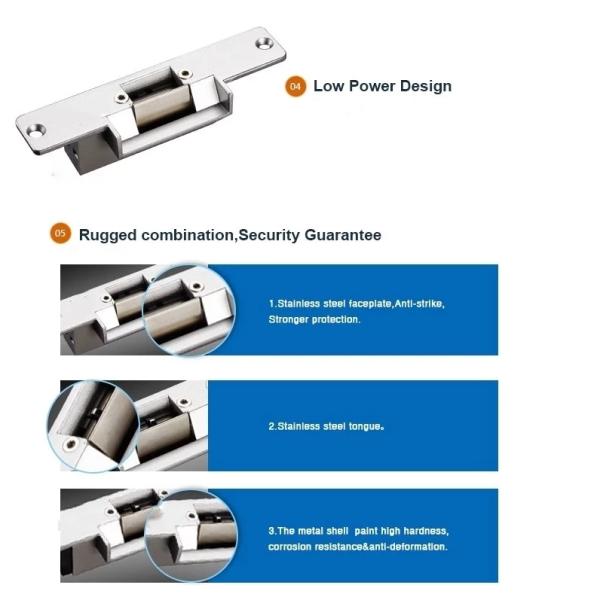

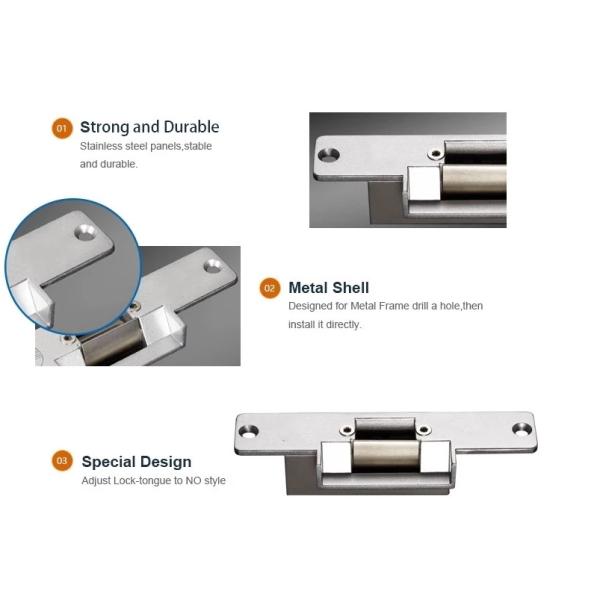

Product Details

Stainless Steel 500KG 12VDC Electric Strike Lock For Door

Stainless Steel 500KG 12VDC Electric Strike Lock For Door

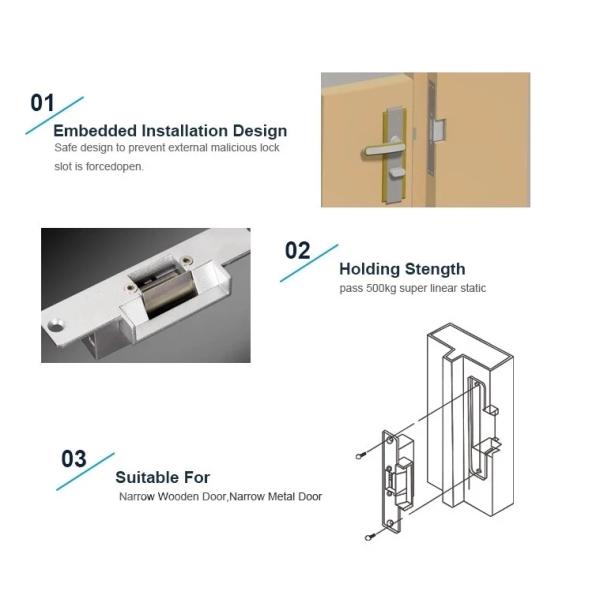

Installation drawing

Stainless Steel 500KG 12VDC Electric Strike Lock For Door
