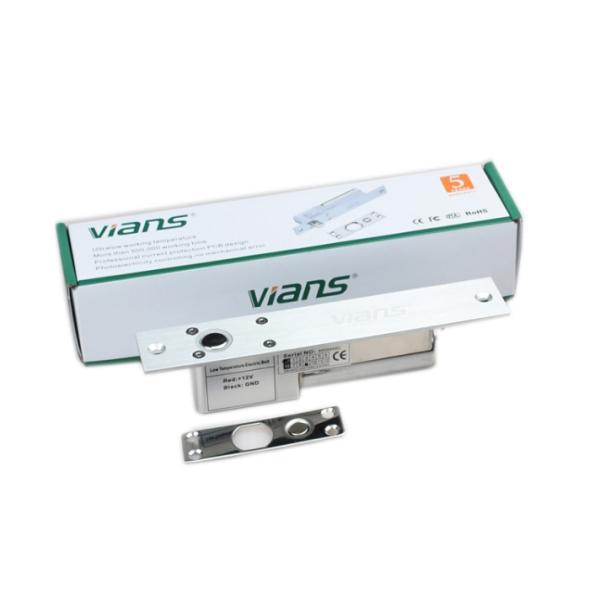

12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
12v Security Fail Secure FCC ROHS Electric Bolt Lock
Specifications
Brand Name :
VIANS
Model Number :
VI-802ST
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
30 pcs/cartons
Lock Size :
205 L X 35 W X 40 H(mm)
Strike :
90 L X 25 W X 2 H (mm)
Certifications :
CE,ROHS,FCC,MA
Security Mode :
unlock when power off
Autolock Time Delay :
0,3,6,9sec
Application Door :
metal doors, wooden doors, fireproof doors, glass door
Signal output :
YES
Time delay :
YES
Weight :
0.72KG
Description

12v Security Fail Secure FCC ROHS Electric Bolt Lock

What is electric bolt lock?

Electric bolt lock is designed mainly for glass door,wooden door and metal door,it's suitable

for bidirectional door and sliding door,becomes the best choice of access control automation

management.

Advantage of the products

◆ Photoelectric control technology, prevent mechanical failure.

◆ Ultra-low temperature design, Safer and more durable.

◆ Ultra-low-power design, More durable and more environmentally friendly.

◆ More than 500 000 working times.

◆ Built-in reverse current and prevention device (MOV).

◆ Intelligent single chip configuration, three types current application.

◆ High strength aluminum alloy lock body, stainless steel lock bolt.

◆ Products pass the EU CE and china MA ,ROHS qualified certification.

Product Parameter

Product Parameter Parameter Description
Lock Size 205Lx35Wx40H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 110mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Warranty 5 years
Time Delay YES
Signal output YES
Security Type Locked when energized
Weight 0.72KG

Installation drawing

12v Security Fail Secure FCC ROHS Electric Bolt Lock

12v Security Fail Secure FCC ROHS Electric Bolt Lock

12v Security Fail Secure FCC ROHS Electric Bolt Lock

Relates Products:

Here is our bolt lock series, Any questions Welcome contact us.

Model No Product Feature Picture
VI-807ST Lock Size:200L*24.5W*39H(mm)
Strike:90L*25W*2H(mm)
Input Voltage:DC12V±10% Security Mode:unlock when power off Autolock Time Delay:0,3,6,9sec
Working Current:80mA
Door Type Applicable: Wooden/Glass/Metal/Fireproof Door
Time Delay:Yes
Signal Output:Yes
Weight:0.75kg		 12v Security Fail Secure FCC ROHS Electric Bolt Lock
VI-806ST Lock Size:148.5L*24.5W*39H(mm)
Strike:148.5L*24.5W*2H(mm)
Input Voltage:DC12V±10% Security Mode:unlock when power off
Working Current；80mA
Door Type Applicable:Wooden/Glass/Metal/Fireproof Door
Time Delay:Yes
Signal Output:Yes
Weight:0.86kg		 12v Security Fail Secure FCC ROHS Electric Bolt Lock
VI-808ST Product Type:Fail safe electric bolt is for fully frameless glass door
Lock Size:148L*43W*39H(mm)
Strike:148L*43W*2.5K(mm)
Input Voltage:DC12V±10% Security Mode:unlock when power off Autolock Time Delay:0,3,6,9sec
Signal output:Yes
Time delay:Yes
Weight:1.6kg		 12v Security Fail Secure FCC ROHS Electric Bolt Lock

Packing

Vians brand packing

12v Security Fail Secure FCC ROHS Electric Bolt Lock

If you like to add your logo or OEM your own color box,we also could make for you.

Share you some examples.

12v Security Fail Secure FCC ROHS Electric Bolt Lock

FAQ

1. Q : Are you a factory?

A : Yes,we are a professional factory of electric lock in china.We are in security field for more than 10 years.

2. Q : Can you print our logo on the product?

A : Yes,we can print your logo on product,and it's free.We have been providing OEM servicefor many global brands

for many years.We're experienced meet your requirements.

3. Q : How can you control your product quality?

A : Quality is the priority.We always attach great importance to quality controlling from the very

beginning to the end.We have professional QC to inpect goods before shipping.If any quality

problem were to occur (though non have and we don't anticipate any) you would simple return

the product for a full refund.

4. Q : How to you ship the product?

A : If no special requirement from customers,we usually ship by express for small order,and ship by sed or air for big order.
