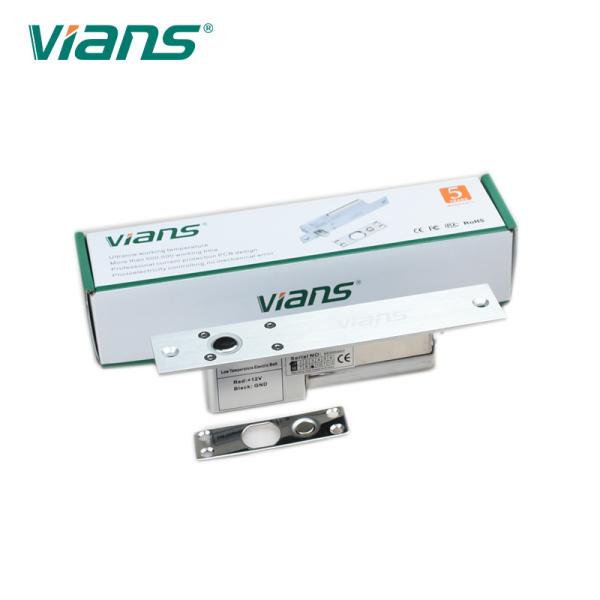

Fail Safe Electric Deadbolt Lock , Sliding Door Bolt Lock With Time Delay
Fail Safe Electric Deadbolt Lock , Sliding Door Bolt Lock With Time Delay
Specifications
Brand Name :
VIANS or customized logo
Model Number :
VI-801T
Certification :
CE/MA
Place of Origin :
Guangdong ,China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
30 pcs/cartons
Type :
drop bolt lock for access control
Brand :
VIANS or customized logo
Security Mode :
fail Safe
Application Door :
Glass /Metal /Wooden
optional function :
Time delay
Input Voltage :
DC12V+_10%
Description

Hot Selling Electric Bolt Lock with Signal Output Fail Safe Low Temperature

An electric drop bolt is a motor or solenoid actuated symmetrical deadbolt mechanism, used for specific applications where Electric Strikes and Electromagnetic Locks cannot be used. Such as double action 180 degree swing through or sliding doors. In many cases, Electric Drop Bolt are used as additional or secondary locking device.

Advantage of the products

◆ Photoelectric control technology, prevent mechanical failure.

◆ Ultra-low temperature design, Safer and more durable.

◆ Ultra-low-power design, More durable and more environmentally friendly.

◆ More than 500 000 working times.

◆ Built-in reverse current and prevention device (MOV).

◆ Intelligent single chip configuration, three types current application.

◆ High strength aluminum alloy lock body, stainless steel lock bolt.

◆ Products pass the EU CE and china MA qualified certification.

Product Parameter

Product Parameter Parameter Description
Lock Size 205Lx35Wx40H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 110mA
Door Type Applicable Wooden door , Glass door ,Metal door
Time Delay Optional
Signal output No
Security Type Fail Safe
Weight 0.72KG

Installation drawing

Fail Safe Electric Deadbolt Lock , Sliding Door Bolt Lock With Time Delay

Fail Safe Electric Deadbolt Lock , Sliding Door Bolt Lock With Time Delay

Fail Safe Electric Deadbolt Lock , Sliding Door Bolt Lock With Time Delay
