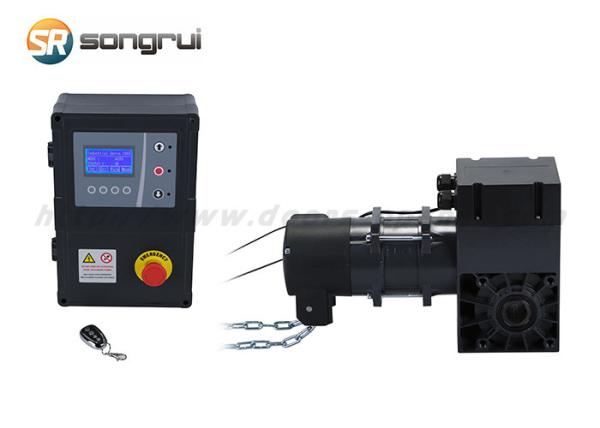

70N.M Single Phase 220V Brushless DC Motor Industrial Door Opener
70N.M Single Phase 220V Brushless DC Motor Industrial Door Opener
Specifications
Brand Name :
SONGRUI
Model Number :
INDUS70DC
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 WORK DAYS
Product Name :
Industrial Sectional Door Opener
Input voltage :
220V/50Hz; 110V/50Hz
Rated power :
400
Starting torque :
70N.m
Maximum door weight :
30m²
Load Rouning Time :
18min
Description




70N.M Single Phase 220V Brushless DC Motor Industrial Door Opener

The brushless motor can prolong the service life of the motor and reduce the running noise.

Technical features

1. Operate steadily, low rate heat, efficient

2. The speed of rise and fall is adjustable

3. Human-computer interaction, liquid crystal display,Chinese-English manu

4. Have slow start and slow stop function

5. Turn crossing protection, Prevents motor burn out

6. Automatic search O point after power failure, with built-in encoder

Specifications

Model
INDUS40DC
INDUS70DC
INDUS100DC
INDUS150DC
Power Supply
AC220V±10%
Rated Power
350W
400W
750W
750W
Torque
40N.m
70N.m
100N.m
150N.m
Output Speed Range
10-50RPM
10-50RPM
10-40RPM
8-30RPM
Max.Loading
(Door Area)
20m2
30m2
45m2
65m2
Encoder Type
Single Circle Absolute Encoder
Manual/Auto switch
Pull Cord Switch
Manual Release
Hand-Pulled Chain
Maximum Limit Travel
Output shaft rotates 19 rounds
Output Shaft Diameter
Φ25.4mm

Our service:

Welcome OEM&ODM orders:

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
