150 Watt 110V 500KG DKC500DC Automatic Door Openers
150 Watt 110V 500KG DKC500DC Automatic Door Openers
150 Watt 110V 500KG DKC500DC Automatic Door Openers
150 Watt 110V 500KG DKC500DC Automatic Door Openers
150 Watt 110V 500KG DKC500DC Automatic Door Openers
150 Watt 110V 500KG DKC500DC Automatic Door Openers
Specifications
Brand Name :
SONGRUI
Model Number :
DKC500DC
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Set/Sets per Month
Delivery Time :
5-8 WORK DAYS
Packaging Details :
37*25.5*32cm
Power supply :
220V/50Hz;110V/60Hz
Maximum gate weight :
500KG
Motor Power :
DC24V/150
Output torque :
14N.m
Limit switch :
Spring limit switch / Magnetic limit switch
Gate moving speed :
11-13m/min
Description


DC Motor Automatic Gate Opener for 500kg Sliding Gate DKC500DC

The DKC500DC gate opener designed for residential use, weight up to 500Kg and operating distance up to 8 meters.

Compact structure, novel appearance, easy installation.

Main Features:

  • DC 24V motor or AC motor with built-in control unit.
  • Optional connect backup battery. (DC motor)
  • Solar system compatible. (DC motor)
  • Keypad / single button interface.
  • Alarm lamp, photo beam & safety beam interface.
  • User can select auto-close function.
  • Soft start and slow stop. (Smart version)
  • Auto-reverse function when hitting obstacle during closing. (Smart version)
  • Manual key release design for emergency purposes.

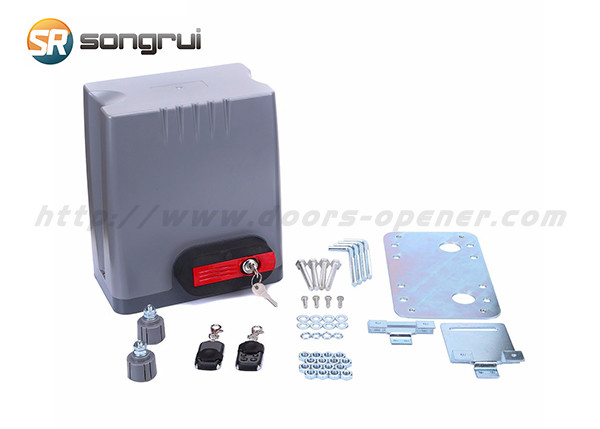

Standard unit:

  • Gate motor
  • Control board & box
  • 2pcs remote controls
  • Manual release key
  • User manual
  • Bolts & nuts

Main technical parameters:

Unit Model DKC500DC
Power Supply AC220V/50Hz
Maximum Gate Weight 500kg
Motor Power DC24V/150
Output Torque 14N.m
Output Shaft Height 46mm
Limit Switch magnetic limit switch or spring limit switch
Gate Moving Speed 11-13m/min
Remote Control Range ≥30md
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 20min
Noise ≤56db
Working Tempreature -20℃~+50℃
Backup Battery Optional
Driving Mode Gear
Package Weight 11kg

150 Watt 110V 500KG DKC500DC Automatic Door Openers150 Watt 110V 500KG DKC500DC Automatic Door Openers150 Watt 110V 500KG DKC500DC Automatic Door Openers

150 Watt 110V 500KG DKC500DC Automatic Door Openers150 Watt 110V 500KG DKC500DC Automatic Door Openers
