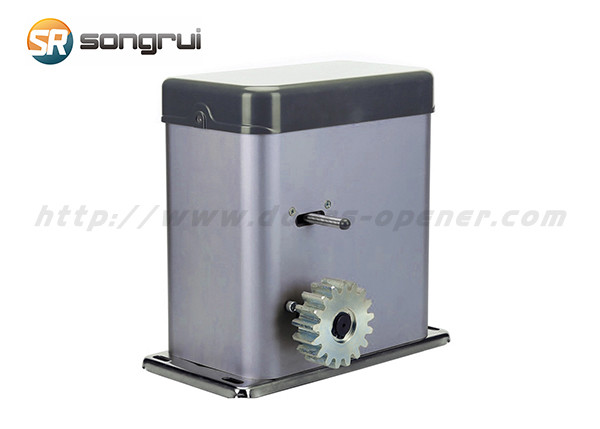

100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
Specifications
Brand Name :
SONGRUI
Model Number :
DKC300DC
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Set/Sets per Month
Delivery Time :
5-8 WORK DAYS
Packaging Details :
30*24*35.5cm
Max. Gate Weight :
300KG
Limit Switch :
Mechanical Limit Switch/Spring Limit Switch
Power Supply :
AC 220V/50Hz; AC 110V/60Hz
Motor's Power :
24VDC,100W
Material :
Aluminum Alloy Base
Remote Control :
433.92MHz rolling code
Description


Smart WiFi Remote Automatic Control DC Sliding Gate Opener Electric Gate Motor Operator DKC300DC

The DKC300DC gate opener designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.

Detailed Product Description

  • Brushed aluminum shell, novel appearance.
  • Built-in control board, without backup battery.

  • Intelligent charging system supplied.

  • MCU is supplied to control the gate opener.

  • DC24V motor with built-in control unit.
  • Optional connect backup battery.
  • Solar system compatible.
  • Keypad / single button interface.
  • Alarm lamp, photo beam & safety beam interface.
  • User can select auto-close function.
  • Soft start and slow stop.
  • Auto-reverse function when hitting obstacle during closing.
  • Manual key release design for emergency purposes.

Standard Unit

  • gate motor
  • control board & box
  • 2pcs remote controls
  • manual release key
  • user manual
  • bolts & nuts

Main Technical Parameters

Unit Model DKC300DC
Power Supply AC 200V/50Hz; AC 110V/60Hz
Maximum Gate Weight 300kg
Motor Power 24VDC, 100W
Output Torque 8N.m
Output Shaft Height 46mm
Limit Switch magnetic limit switch or spring limit switch
Gate Moving Speed 13m/min
Remote Control Range ≥30m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 30min
Noise ≤60db
Working Temperature -20℃~+50℃
Backup Battery Optional
Driving Mode Gear
Package Weight 8.50kg

100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener

100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener100 Watt 24VDC Automatic Door Openers , DKC300DC Smart Sliding Gate Opener
