Efficient Automatic 6 Meters 8W Boom Barrier Gate
Efficient Automatic 6 Meters 8W Boom Barrier Gate
Efficient Automatic 6 Meters 8W Boom Barrier Gate
Efficient Automatic 6 Meters 8W Boom Barrier Gate
Efficient Automatic 6 Meters 8W Boom Barrier Gate
Efficient Automatic 6 Meters 8W Boom Barrier Gate
Specifications
Brand Name :
SONGRUI
Model Number :
BG3009
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 WORK DAYS
Power supply :
C110V-264V/47-63HZ
Motor Power :
100W
Max.Power Consumption(Operating) :
100W
Max.Power Consumption(Standby) :
8W
Control Voltage :
24VDC/max.300mA
Service Life :
5-10 million times
Motor Speed :
0.9-2.5secs adjustable
Motor Speed without load :
3000r/min
Driving Method :
servo motor+Planetary reducer
Protection :Level :
IP54
Description

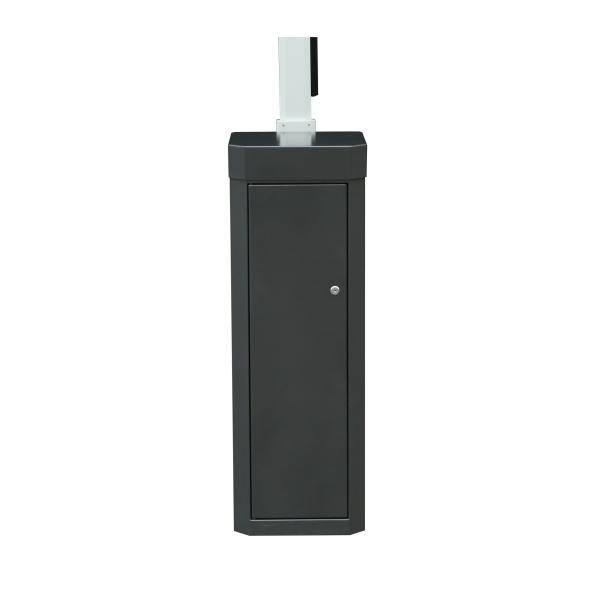

Efficient Servo Automatic Boom Barrier Gate Motor

The road brake is composed of reducer, motor, (or hydraulic) transmission mechanism, balancing device, chassis, brake rod bracket, brake rod and other parts.

Features:

1. Efficient Servo Motor

Low power high output, energy conservation and environmental friendly. The output is 100W;

2. Efficient and precise planetary reducer drive

Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.

3. Advanced servo controlling system

Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.

4. High Security

Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.

Auto-Reverse or Auto-Stop function when hitting obstacles.

5. Five “without” design

Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.

6. All-weather adaptability

Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.

7. Backup battery

Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.

Product Specification:

Unit Model BG3009 BG4014 BG5025 BG6035
Boom Length/Sectional Size

≤3.5m/ø75mm

Octagonal Bar

≤4.0m/ø75mm

Octagonal Bar

≤5.0m/ø75mm

Octagonal Bar

≤6.0m/ø75mm

Octagonal Bar
Open/close Time 0.9 sec 1.4 sec 2.5 sec 3.5 sec
Power 100W
Power Supply AC110-264V / 47-63Hz
Motor No-load Speed 3000r/min
Service Life 5-10 million times
Driving Method Servo Motor + Planetary Reducer
Protection Level IP54
Operating Temperature

-40℃~80℃

(temperature under -20℃should be equipped with electric heating plate)
Running Noise ≤50dB
Gross Weight 51KG

Our service
Welcome OEM&ODM orders:

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
