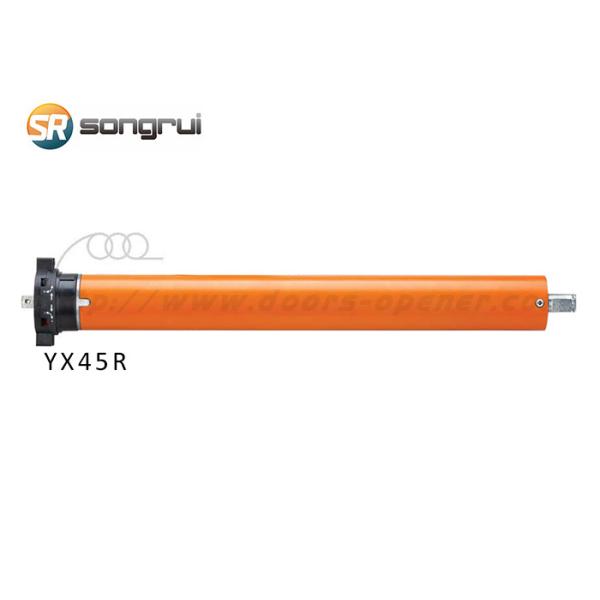

120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor
120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor
Specifications
Brand Name :
SONGRUI
Model Number :
YX45R-10/15
Certification :
CE
Place of Origin :
China
MOQ :
50 SETS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Set/Sets per Month
Delivery Time :
5-8 WORK DAYS
Product Name :
Tubular Motor
Type :
YX45R-10/15
Power Supply :
AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m) :
10
Rated Speed (rpm) :
15
Rated Power (W) :
125W
Description

45R AC Radio Type-Mechanical Limit + Build-in Receiver Rolling Door Motor Garage Doors

Detailed product description:

1. Radio Type-Mechanical Limit + Build-in Receiver.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.

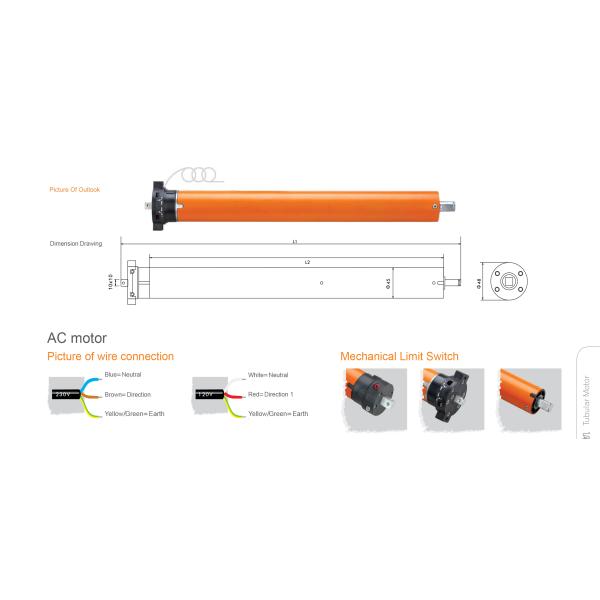

Main technical parameters:

YS45R

10N.m/20Kg

AC230V 50Hz

Type YX45R-10/15 YX45R-10/26 YX45R-15/15 YX45R-20/15 YX45R-20/26 YX45R-30/15 YX45R-40/15 YX45R-50/12 YX45R-60/8 YX45R-70/9
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 15 26 15 15 26 15 15 12 8 9
Rated Power (W) 125 150 140 150 215 200 215 230 235 244
Rated Current (A) 0.54 0.65 0.61 0.65 0.93 0.90 0.93 1.00 1.02 1.06
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36
L1/L2(mm) 555/480 555/480 555/480 555/480 655/580 655/580 655/580 655/580 655/580 675/600

AC120V 60Hz

Type YX45R-10/18 YX45R-10/31 YX45R-15/18 YX45R-20/18 YX45R-20/31 YX45R-30/14 YX45R-40/14 YX45R-50/14 YX45R-60/10 YX45R-70/11
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 18 31 18 18 31 14 14 14 10 11
Rated Power (W) 133 140 140 140 165 149 165 180 185 219
Rated Current (A) 1.05 1,.10 1.16 1.16 1.41 1.20 1.41 1.46 1..50 1.82
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36
L1/L2(mm) 574/500 574/500 574/500 574/500 685/610 685/610 685/610 685/610 685/610 705/630

Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor

120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor

120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor

120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor
