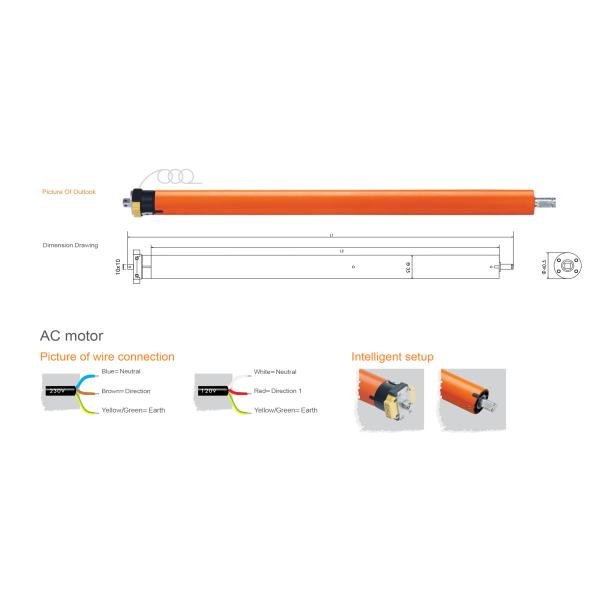

35E AC Rolling Door Motor Electronic Type-Electronic Limit+Build-in Receiver

The motor is hidden in the winding tube, and the transmission shaft is driven to rotate by the rotation of the motor, so as to realize the lifting of the rolling curtain. When it rises, the curtain is wound on the winding shaft, and when it falls, the curtain slides down along the inner side of the guide rail. Through the control of the remote control to achieve the curtain up, stop, down action. In addition, it has a power-off manual release system, in the case of power-off, the rolling shutter door can be lifted by manual rocker.

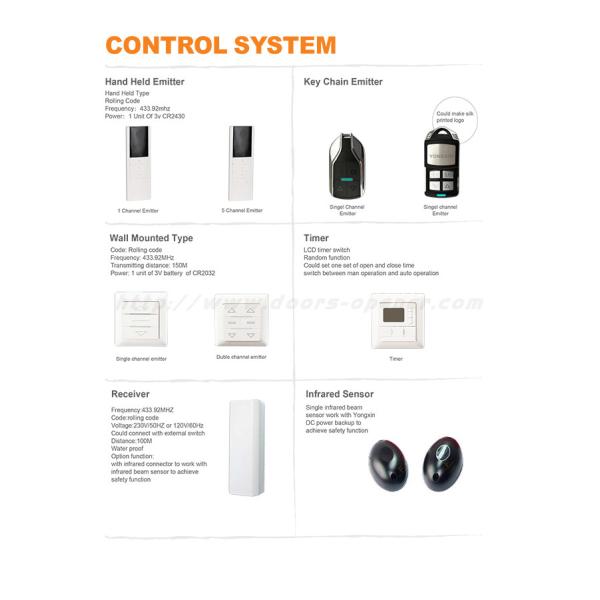

The rolling shutter door is mainly composed of door body, driver and control system. The door body is made of high-quality stainless steel and aluminum alloy special profiles. It is hinged on the principle of parallelogram, with flexible expansion and large stroke. The driver is driven by special motor, decelerated by worm and worm gear, and equipped with manual clutch. It can be opened and closed manually in case of power failure. The control system has control board and button switch.

It can also be equipped with intelligent infrared double probe anti-collision device, which can automatically return to operation when meeting people or foreign matters for 20-30cm, so as to ensure the safety of vehicles and pedestrians.

Detailed product description:

1. Electronic Type-Electronic Limit+Build-in Receiver.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.

Main technical parameters:

YS35E

10N.m/20 Kg

AC230V 50Hz

YS35E

10N.m/20 Kg

AC120V 60Hz
