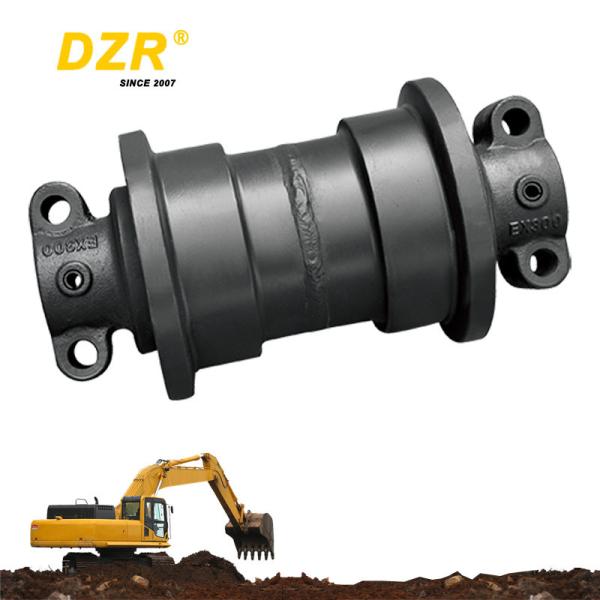

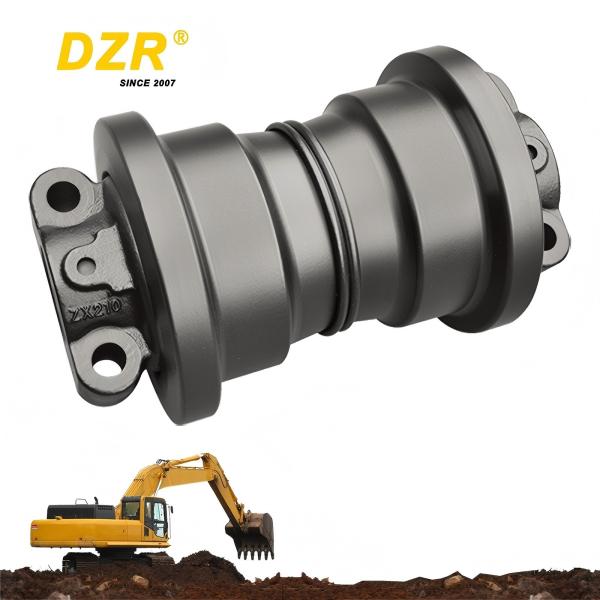

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516
ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516
ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516
ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516
Specifications
Brand Name :
D6D Track Roller
Model Number :
ZX210 ZAX330
Certification :
ISO、CE
Place of Origin :
China
MOQ :
5 pieces
Price :
$4.90 - $20.00/pieces
Payment Terms :
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Delivery Time :
FOB Xiamen or any Chinese port:25-30days . If there are any parts in stock ,our delivery time is only 7-10 days.
Specification :
Uesd for wheel loader
Max Digging Radius :
2400mm
Part Name :
bulldozer track roller / bottom roller
Body Material :
Steel
Machinery Test Report :
Provided
Certifiion :
ISO\CE
Package Contents :
1 Track Roller
Material :
40Mn2
Description
model Pavement diameter Overbore diameter BOLT CENTER X Y diameter of mounting recess Assembly length
ZAX330 n180 n216 366 116 n23 408
Detail Information
Material: 40Mn2 Steel Technique: Forging
Quality: Heat Treatment HRC 40-55 Dimension: Standard
P/N: CR6088/CR6089 OEM/ODM: Available
Highlight: D6R Bulldozer Bottom Track Rollers,

Bottom Track Rollers CR6088,

Double Flanged Track Rollers CR6089

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516

Product Description

ZAX330 ZX210 black Color Track Roller Excavator Spare Parts

1. What is a roller?

The track roller is designed to convey the excavator's weight to the ground. On uneven surfaces, track rollers face significant impact stress. Hence, their support capacity is immense. Furthermore, in dusty or poor-quality settings, robust sealing is essential to protect against damage caused by dirt, sand, and water.

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516
2.Advantages/Features

High Quality:

The floating oil seal is made of chrome aluminum alloy, with high hardness and good abrasion resistance, and equipped with rubber O-ring. Medium frequency quenching improves the wear resistance of track surface and ensures excellent durability.

High accuracy:

The shaft is composed of 45 # round steel and subject to double heat treatment (quenching heat and intermediate frequency surface quenching heat). The surface hardness reaches HRC52-60 and the penetration depth is 3-6mm. This demonstrates a commitment to precision and excellence.

Long life:

The support wheel body shall be accurately machined on the vertical numerical control lathe after welding to ensure the concentricity of the inner ring, integrated process, uniform contact, rapid wear prevention and extended product service life..

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516

3.Production Processes

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516​

4.Design/Structure/Main Dimensions of Installation

ZX210 ZAX330 Excavator Track Roller For Chassis Components Part No9184516

MAIN PARAMETERS

M o d e l A B G D Bolt General Model
EX100/120 250 90 190 16 DH130,R110,ZAX120
EX200-1/DH220 318 102 240 16*90thick UH07.DH180.DH220.EX220. (Available with DH220, different apertures).
EX200-2/3/5 290 102 240 18*90thick EX150-5.EX210-5.EX220-2/3.EX230-5.
EX200/3/5/6.ZAX200/220/225/230/240.EX(20T-24Tsame).
EX300-5/DH300 368.5 115 285 20*100thick EX300-2/3.EX330.DH300.DH350.ZAX330(22*110)
EX350 ZAX350-1.ZAX360.EX270.DH280-3.overall length412.
EX90 240 89 199 16*80
EX200-2 290 102 238 18*90
ZAX330/270 365 115 282 22*110thick electronic injection,ZAX360,ZAX350,ZAX270,EX270,overall length415
EX400 400 125 290 22*110thick "EX450-2/3/5,DH420,DH360,SH350
EC360(To the hole),EC460,R360,R485"
If you need other models, please feel free to submit inquiries or contact us via email.

5. Why choose us?

Supply Guarantee

With 18 years of experience, we rely on our large plants and 1400 square meters of warehouse to provide high-quality, customized products. In terms of quality and inventory, we provide solid support to ensure reliable product quality and sufficient inventory, making you free from worries.

Procurement

We provide a comprehensive and one-stop service from procurement to loading, aiming at creating an efficient and convenient procurement process for you. With our professional services, you can easily meet the challenges of the procurement process and achieve maximum cost effectiveness.

Delivery & After-Sales Service

We promise to provide you with exclusive one-to-one service. If you encounter oil leakage or wheel body damage during the warranty period of the product, just provide photos with our logo and we will immediately replace all wheels with new ones to ensure your consistent user experience.
