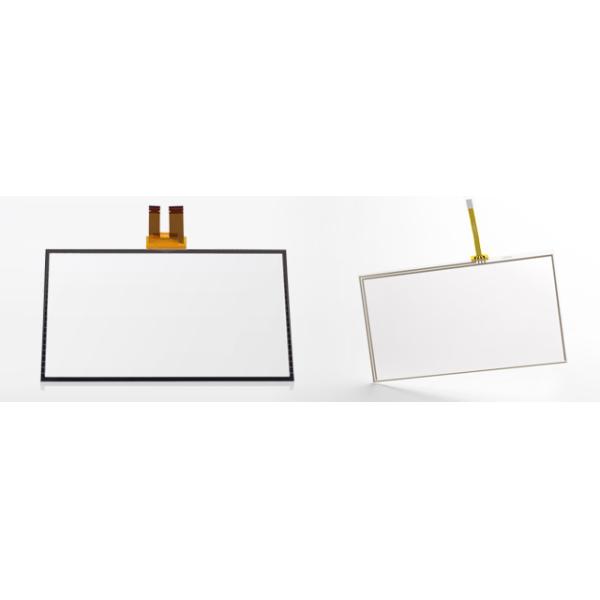

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Specifications

Place of Origin :

China

Brand Name :

Dopo touch

Certification :

CE,FCC,ROHS

Model Number :

DPT-4W-xxxxxx

MOQ :

10pcs

Packaging Details :

Standard export package

Delivery Time :

7-15 working days

Payment Terms :

T/T,westen union

Supply Ability :

60Kpcs/month

Description

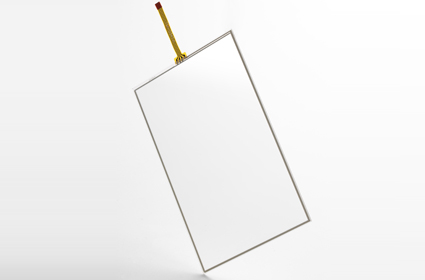

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Quick Detail:

1.Material: Glass + film

2.Aspect ratio: 4:3

3.Input method: Finger or touch pen

4.Thickness: ITO Glass:see below,ITO Film:0.188mm

5.Surface hardness: 3H

6.Detection method: Four wire Resistive

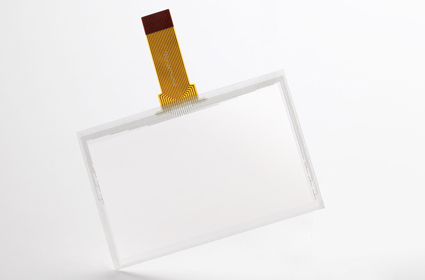

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Specification

1) 4.7" 4W-M047001

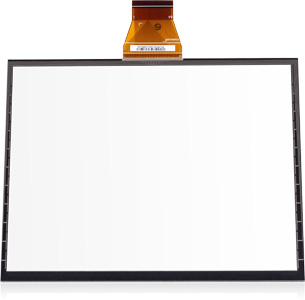

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M044701
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	113691mm
View Area	109*62mm
Active Area	104.7*60mm
TP Size (inch, diagonal)	4.7
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

2) 4.9" 4W-M049001

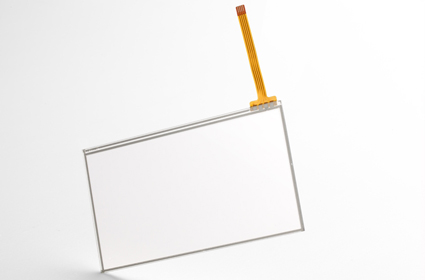

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M049001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	113651.5mm
View Area	109*59mm
Active Area	108.458.4mm .64.4mm
TP Size (inch, diagonal)	4.9
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	5V
Transmittance	>72%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

3) 5.5" 4W-M055001

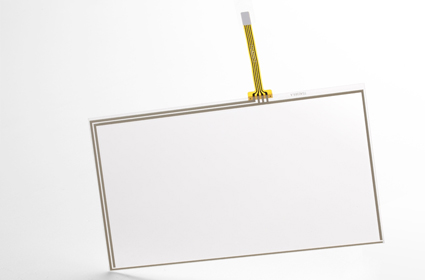

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M055001
Type	Digital resistive touch screen
Structure	ITO Film / ITO Glass
Outline Dimensions	137.1690.931.42mm
View Area	125.98*76.99mm
Active Area	121.5269.86mm .64.4mm
TP Size (inch, diagonal)	5.5
Connector	FPC
Input Method	Pen or finger
Input Force	≦100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

4) 7.0" 4W-M070001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M070001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	167.192.81.2mm
View Area	158*84.6mm
Active Area	156.483.12mm .64.4mm
TP Size (inch, diagonal)	7
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

5) 7.1" 4W-M071001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M071001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	161.1101.11.4mm
View Area	154.45*94.75mm
Active Area	154.4594.75mm .64.4mm
TP Size (inch, diagonal)	7.1
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

6) 8.5" 4W-M085001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M085001
Type	4-wire resistive touch screen (Analogue type)
Structure	ITO Film / ITO Glass
Outline Dimensions	182.7142.651.4mm
View Area	173.8*131.2mm
Active Area	171.8129.2mm .64.4mm
TP Size (inch, diagonal)	8.5
Connector	FPC
Input Method	Pen or finger
Input Force	80g～100g
Operation Voltage	3V～5V
Transmittance	>78%
Linearity	≦1.5%
Operation Temperature	-10℃～60℃
Operation Humidity	20%～90%RH
Storage Temperature	-20℃～70℃
Storage Humidity	20%～90%RH
Hitting life	1,000,000 times
Response Time	<15ms
ROHS, REACH, PTH, PAHs, NP

7) 10.4" 4W-104001

Item No.	4W-M104001
Type	Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	225.50176.30 2.13mm
View Area	214.23* 161.64mm
Active Area	211.73* 159.12mm
TP Size (inch, diagonal)	10.4
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g -80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C , humidity 10%~90%
	> 35°C to 50℃ , humidity 10%~60%
Storage Environment	-30°C to 35°C , humidity 10%~90%
	> 35°C to 70℃ , humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M time.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

8) 13.3" 4W-M133001

Item No.	4W-M133001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	307.60183.102.13mm
View Area	296.42*167.97mm
Active Area	295.42*166.97mm
TP Size (inch, diagonal)	13.3
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

9) 18.5" 4W-185001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M185001
Type	resistive Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	430.37254.602.13mm
View Area	413.20*233.80mm
Active Area	411*231.60mm
TP Size (inch, diagonal)	18.5
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M time.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

10) 19" 4W-M190001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M190001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	432.00278.002.13mm
View Area	416.42*258.50mm
Active Area	411.20*257.30mm
TP Size (inch, diagonal)	19
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

11) 20" 4W-M200001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M200001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	462.80272.002.13mm
View Area	445.80*252.20mm
Active Area	443.80*250.20mm
TP Size (inch, diagonal)	20
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

12) 23" 4W-M230001

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Item No.	4W-M230001
Type	Multi-Touch (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	533.203122.13mm
View Area	513.78*291.02mm
Active Area	509.18*286.42mm
TP Size (inch, diagonal)	23
Connector	FPC
Input Method	Touch stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

13 ) 23.6" 4W-M236001

Item No.	4W-M236001
Type	AMR (Analog type)
Structure	ITO Film / ITO Glass
Outline Dimensions	544.80320.52.13mm
View Area	523.50*295.50mm
Active Area	522.50*294.50mm
TP Size (inch, diagonal)	23.6
Connector	FPC
Input Method	stylus or finger
Input Force	30g-80g
Operation Voltage	5V
Transmittance	>78%
Linearity	± 1.5% error or less for X and Y axis.
Operation Environment	-10°C to 35°C, humidity 10%~90%
	>35°C to 50℃, humidity 10%~60%
Storage Environment	-30°C to 35°C, humidity 10%~90%
	>35°C to 70℃, humidity 10%~60%
Hitting life	Pen sliding: more than 100k times
	Pen hitting: more than 1M times.
	Finger Touch: more than 5M times.
ROHS, REACH, PTH, PAHs, NP

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Product tags

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

Name: Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller
Brand: Dopo touch
Price: 1 USD

Ask Latest Price

Product Detail

Place of Origin :

China

Brand Name :

Dopo touch

Certification :

CE,FCC,ROHS

Model Number :

DPT-4W-xxxxxx

MOQ :

10pcs

Packaging Details :

Standard export package

Contact Supplier

DOPO TECH GROUP LIMITED

Verified Supplier

13 Years

guangdong, shenzhen

Since 2005

Business Type :

Manufacturer, Distributor/Wholesaler, Importer, Trading Company, Seller, Other

Main Products :

Projected Capacitive Touch Panel, Custom Capacitive Touch Screen, TFT - LCD / LCM And TP Bonding

Total Annual :

>12 million

Employee Number :

>700

Certification Level :

Verified Supplier

Discover similar products

Glass To Film Resistive Multi Touch Screen Panel with USB Interface and Four

Contact Now
23.6 Inch USB Resistive Touch Panel TP for LCD Display Screen,plug and play

Contact Now
Unbreakable 4 Wire Resistive Touch Panel TP with 4:3 Aspect Ratio

Contact Now
Custom 32 Inch ITO Resistive Touchscreen Panel For Smart Home

Contact Now
37 Inch 4 Wire Resistive Touch Panel Controller , LCD Touch Screen Panel

Contact Now
4W 42" Wire Resistive Touch Panel With Black Frame , Transparent Touch Screen

Contact Now
46 Inch 4 Wire Resistive Touch Screen Panel with USB Interface And Controller

Contact Now
4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

Contact Now
10.4 Inch 5 Wire Resistive Touch Screen Controller / Multi Touch Screen Panel

Contact Now
Glass to Film 5Wire Resistive Touch Screen Panel For Smart Home / Kiosk and ATM

Contact Now

Watch related videos

Find Similar Products By Category:

Supplier Homepage Products Resistive Touch Panel

MachineU China Products Electrical Equipment & Supplies Industrial Controls Human Machine Interfaces & Industrial PC

touch panel input device

embedded touch panel pc

4 wire resistive touch screen controller

Multi Touch 4 Wire Resistive Industrial Touch Panel TP with USB Controller

DOPO TECH GROUP LIMITED

Glass To Film Resistive Multi Touch Screen Panel with USB Interface and Four

23.6 Inch USB Resistive Touch Panel TP for LCD Display Screen,plug and play

Unbreakable 4 Wire Resistive Touch Panel TP with 4:3 Aspect Ratio

Custom 32 Inch ITO Resistive Touchscreen Panel For Smart Home

37 Inch 4 Wire Resistive Touch Panel Controller , LCD Touch Screen Panel

4W 42" Wire Resistive Touch Panel With Black Frame , Transparent Touch Screen

46 Inch 4 Wire Resistive Touch Screen Panel with USB Interface And Controller

4 Wire F/F Resistive Touch Panel Screen for 52 Inch LCD Display / Computer

10.4 Inch 5 Wire Resistive Touch Screen Controller / Multi Touch Screen Panel

Glass to Film 5Wire Resistive Touch Screen Panel For Smart Home / Kiosk and ATM

Find Similar Products By Category:
