12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
12.1 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP
Specifications
Brand Name :
Dopo touch
Model Number :
GG-121010 GG-121020
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
10pcs for standard and 500pcs for customzied
Payment Terms :
T/T,westen union
Supply Ability :
20Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Description

12.1" 10 Point Projected Capacitive Industrial Touch Panel Controller PCT/P-CAP

№

Item

Specification Standard projected capacitive touch panel with controller

(interface:USB)

1

Item NO.

GG-121010 GG-121020

2

Detection method

Projected Capacitive

3

Size

12.1"

4

working area

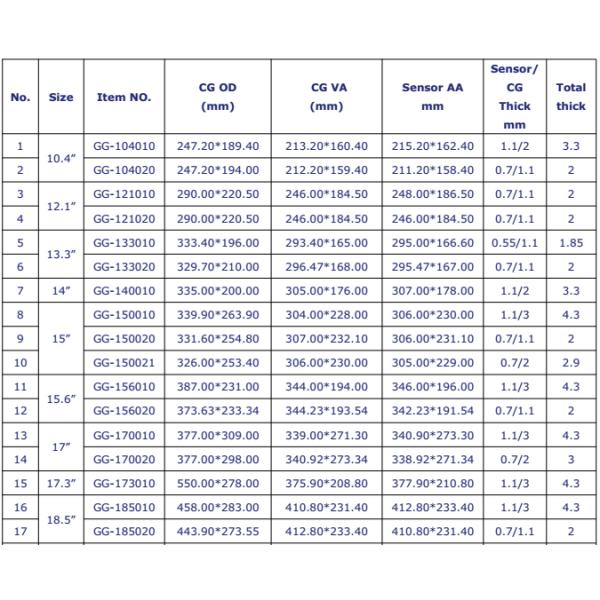

see drawing

5

Outline dimension

see drawing

6

Resolution

25ppi(min)

7

Input method

Finger

8

Touch action force

30~60g

9

Operating Voltage

5V adjustable

10

Operating current

2.5~10mA Depends on IC

11

Operating temperature

-10°C~60°C

12

Storage temperature

-15°C~65°C ,＜90%RH；40°C~70°C,＜60%RH

13

Humidity

10%~90%RH at 40°C, non-condensing

14

Relative humidity

10%~90%RH at 40°C, non-condensing

15

Response time

<35ms

16

Transparency

≥82% depends on the quantity of layers

17

Surface hardness

≥4H

18

Material structure

G+G.P+G,G+F+F

19

Thickness

0.7-1.1±0.15mm

20

Light transmission

92%~100%

21

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

22

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Finger Touch life

≥35,000,000 times

26

Warranty

1 year

12.1

12.1

12.1

12.1

12.1
