Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
Specifications
Brand Name :
STATEMED
Model Number :
STT3-HUS28
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Product name :
LCD Laptop Ultrasound Scanner
OB measurements :
BPD, GS, CRL, FL, AC, HC, etc
Scanning mode :
Convex/Linear/Trans-vaginal/Trans-rectal
Display modes :
B, B+B, B+M, M, 4B
Scanning depth :
240mm
Image conversion :
up/down, left/right, black/white
Gross weight :
7 KGS
Net weight :
5 KGS
Screen :
12 inch
probe connectors :
2
Description

Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat

Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video connector;


Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;


Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;


Standard configuration:

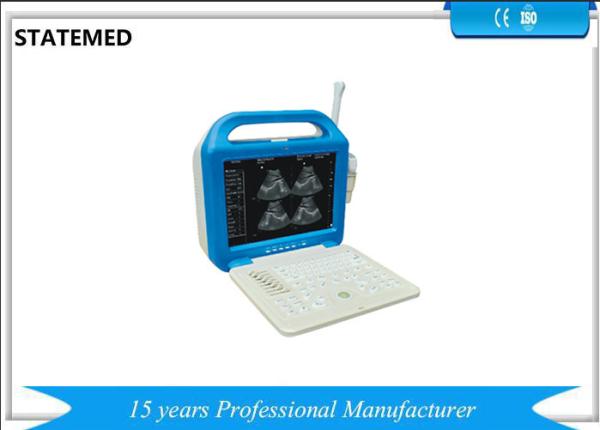

12 inches LCD main unit;
2.5-7.5MHZ Convex array probe;
two probe sockets;
USB,VGA,video,printer ports;


Options:
Linear array probe;
Micro-Convex array probe;
Trans-vaginal array probe;
Trans-rectal probe;
Mitisubishi Video Printer;

Inside battery

Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat

Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat

Portable veterinary equipment for cattl, cow,horse,sheep,dog,cat
