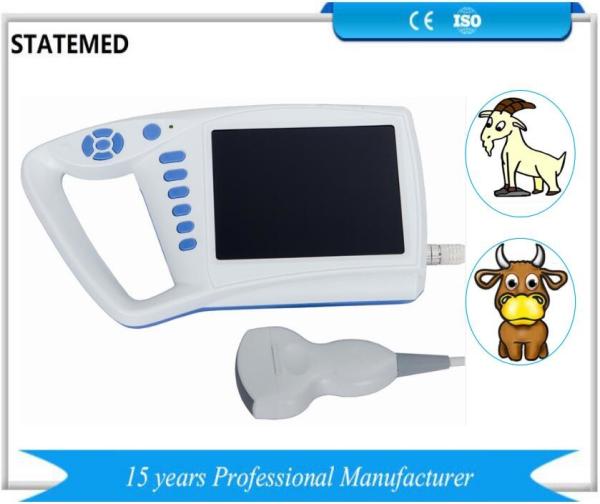

Pregnancy Portable Veterinary Ultrasound Scanner 3 Stage Frame Function
Pregnancy Portable Veterinary Ultrasound Scanner 3 Stage Frame Function
Specifications
Brand Name :
STATEMED
Model Number :
STT3-VUS29
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Scanning mode :
convex array,linear array and so on
Five display format :
B, B+B, 4B, B+M, M
L-zoom :
real-time partial amplification
Depth of detection :
≥180mm
Frame :
3-stage frame function
Image magnification :
×1.0, ×1.2, ×1.3, ×1.5, ×1.6, ×1.8, ×2.0
Gross weight :
3.0 KG
Net weight :
1.5 KG
Monitor :
7 inch led screen
Description

Portable veterinary ultrasound equipment cow / horse / goat / pig pregnancy ultrasound scanner echograph machine

Pregnancy Portable Veterinary Ultrasound Scanner 3 Stage Frame Function

1. Technical Parameters

Scanning mode: Electron convex array scanning,

Electron linear array scanning

Electron convex array

Five display format: B, B+B, 4B, B+M, M

Image magnification: ×1.0, ×1.2, ×1.3, ×1.5, ×1.6, ×1.8, ×2.0

L-zoom: real-time partial amplification

Depth of detection: ≥180mm

Image grey scale: 256 levels; 4-stageγcorrection

Frame: 3-stage frame function

Focus: Dynamic digital electronic focus point by point

Gain control: Full gain and 8-segment TGC

Probe Conversion: probe automatic identification

Frequency for Convex : 2.0MHz, 2.5 MHz, 3.0 MHz, 3.5 MHz, 4.0 MHz, 4.5 MHz, 5.0 MHz

Image:

Pregnancy Portable Veterinary Ultrasound Scanner 3 Stage Frame Function

2. Main Technical Features

2. 2. 1 performance of standard probe

2. 2. 1. 1 R=60 the center frequency of convex array probe: 3.5Mhz

2. 2. 1. 2 investigation depth: >=180mm

2. 2. 1. 3 Vertical resolution:<=1mm(depth<=130mm)

<=2mm(130mm<depth<=170mm)

2. 2. 1. 4 Lateral resolution:<=2mm(depth<=130mm)

<=3mm(130mm<depth<=160mm)

2. 2. 1. 5 Geometric position accuracy: Portrait<=5%; cross wise<=10%;

Dead zone: <=4mm

Slice thickness : <=5mm

Pupil deviation:<=+-20%

M mode display error: <=5%

performance Probe style and standard frequency
Standard frequency of probe 3.5 MHz 6.5MHz
Random error of frequency Deviation of Sound frequency and standard frequency should ≤±15%
Probe

linear,

R≥60mmconvex

linear(linear),

R≥60mm convex

R＜60mm convex
Investigation depth,mm ≥180 ≥70 ≥60
Axial resolution,mm

≤2 (depth≤80)

≤3 (80＜depth≤130)

≤1

(depth≤50)

≤1

(depth≤40)
Lateral resolution,mm

≤3 (depth≤80)

≤4 (80＜depth≤130)

≤2

(depth≤40)

≤2

(depth≤30)
Geometric position accuracy,%

crosswise≤10

Length wises≤5

crosswise≤5

Length wises≤5

crosswise≤10

Length wises≤5
Dead zone,mm ≤4 ≤3 ≤4
Slice thickness,mm ≤9 ≤5 ≤5
Pupil error,% ≤±20 ≤±20 ≤±20
M mode time error,% ≤5 -- --
M mode distance error,% ≤5 -- --

Certificate:

Most of our products have CE certificate.Some even has FDA certificate special for America market .Our medical products are manufactured under these certificates and strict quality control system to assure our product with superior quality and satisfaction.

Pregnancy Portable Veterinary Ultrasound Scanner 3 Stage Frame Function
