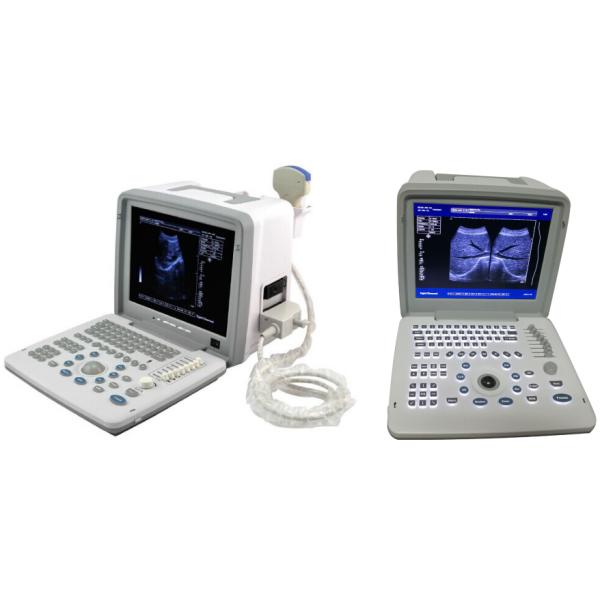

Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe
Specifications
Brand Name :
STATEMED
Model Number :
STT2-BWU73
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD950~1200/SET
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
500sets/month
Packaging Details :
1pcs/carton
Warranty :
12 Months
Screen :
12.1 Inch
Dimension :
450*350*450MM
Color :
Gray
Dynamic Range :
0~120dB ajustable
Gross weight :
8KGS
Standard Configuration :
1 PC convex probe
Net weight :
6.5KGS
Permanent Storage :
128 images
Description

Portable medical scanner ultrasound machines for pregnancy with probe for sale

Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe

Optional Probes:

1). 3.5MHz convex array probe

2). 7.5MHz high-frequency linear probe

3). 6.5MHz trans-vaginal probe

4). 7.5MHz high-frequency rectal probe

Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe

Busy Packing

Gray Portable Ultrasound Equipment , Medical Ultrasound Machine With Probe

Product Information

I.Specification:

Model LED Portable VET B Scanner
Display Modes

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M

5 MHz/R20 Dimpling array probe:B

6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B
Image Mutiplying Factor 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom magnify 2 times of real time image
Dynamic Range 0~120dB ajustable
Focus Position 1,2,3 and 4-segments dynamic electron focusing
Image Processing: γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Frequency Conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function hospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide 3.5MHz convex array probe can display puncture guide line in B mode
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Image Polarity left and right flip, black and white flip, up and down flip
Capacity Cine Loop real time display 256 consecutive images which are memorized successively
Image Playback series playback or check one by one
Permanent Storage: 128 images
Output Interface VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB Port

Offers storing images in USB flash disk

Action Now

Hot Promotion

1. Buy 1000$ get 5% discount.

2. Buy 2000$ get 20%discount express charge.

3. Support 7 Days refund without any CONDITIONS.

4. Refund all items did not sold out within 6 months.

5. Contact us for more details-whatsapp 0086 17326829806

Our Service


1.Your inquiry related to our products or prices will be replied in 24hrs.

2.We have well-trained and experienced staffs to co-operation with you.

3. Protection of your sales area, ideas of design and all your private information.

How to place order?
SEND INQUIRY- NEGOTIATION- PLACE ORDER- CONFIRM PROFORMA INVOICE- DO PAYMENT- PRODUCE AND INSPECT- DELIVERY BY EXPRESS, AIR OR SEA- CUSTOM CLEARANCE- RECEIVE&CHECK- START NEXT ORDER.

Payment:

  • we usually use T/T.
  • 100% LC at sight if see shipment.
  • Western Union
  • Paypal

Shipping:

  • If the quantity of the order is not very big, we could send to you by express delivery. Such as TNT, UPS, DHL, Fedex.
  • If the order is so big, we will advise you use Air Shipping or Sea Shipping through your nominated forwarder FOB China Port.
  • Freight collect if bulk shipment.

Welcome To STATEMED!

Professional supplier,your best choice!

Reasonal price,high quality!
