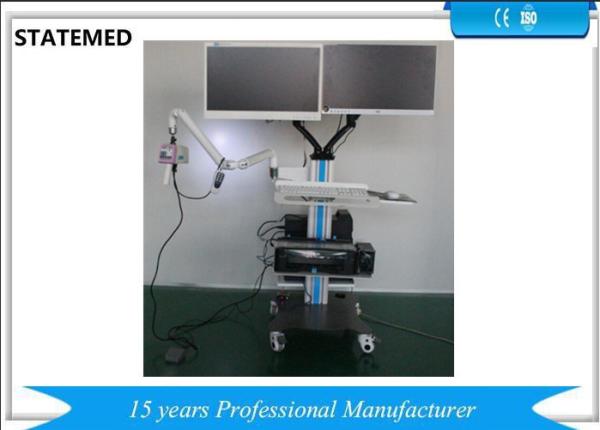

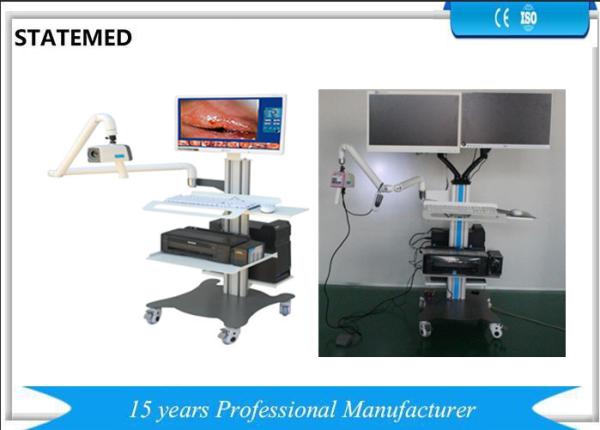

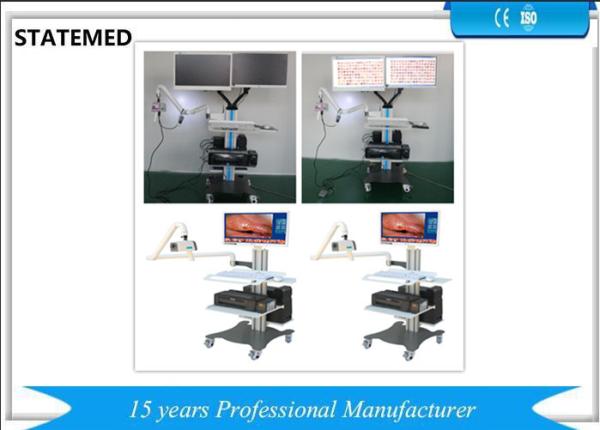

High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
Specifications
Brand Name :
STATEMED
Model Number :
STT9-CDI14
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Product Name :
HD Colposcope Digital Imaging System
Camera :
1/2.8" SONY CMOS
Total Pixels :
3,270,000 Pixels
SNR :
≥ 50dB
Horizon resolution :
≥1080TVL
Monitor :
22-inch LCD
Description

High Definition Medical Endoscope Camera System , Colposcope Digital Imaging System(HD Version)

Descriptions:

Main Function: Dynamic video processing It can display the input dynamic video image, freeze timing capture video, save picture, add falise color, display in full screen. The brightness, contrast, saturation of the image can be adjusted.

Static image processing: It can coding pseudo color and copy for a selected area. It can be partially enlarged, 90 ° rotation, mirror left and right, mirror up and down, negative function, and has 4 kinds of image enhancement methods including linearity, exponent, logarithm and balance. It can be note text by a certain point on the picture. Diameter, perimeter and acreage of the suspected lesion area can be measured. The generated report can be output, search and printed. Japanese SONY high-definition lens, LED cold light source backlight compensation, a variety of light intensity adjustment.

Technical Parameters:

Total pixel (PX):3,270,000 Pixels

Camera:1/2.8'' SONY CMOS

Frame rate:(1920*1080)25p

Signal-noise ration (SNR):≧50dB

Video Output:video signal

Horizontal resolution:≧1080TVL

Illuminate:≧1200Lux

field of vision/visual range: 2.5mm-20mm-320mm

Packing Details Remarks
CPU Dual-core 2.0G above Adjust according to customer needs
Memory DDR 2G or above
Hard disk 500G or above
Main board Intel H61 or above
Capture card VT600 medical specialty
Monitor 22-inch LCD
Printer EPSON continuous color ink supply system
Case+power ATX
Keyboard Standard 108 keyboard
Lens About 3.27 megapixel cameras
Software XP Version
Mouse Photoelectric Mouse
Carts Metal Car


High Definition Medical Camera Systems , HD Colposcope Digital Imaging System
