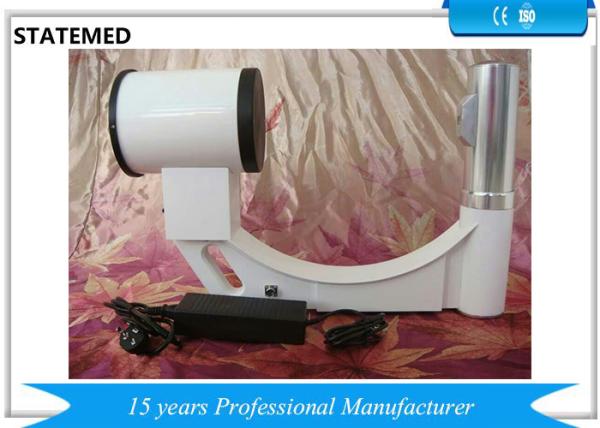

High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
High Definition Portable X Ray Imaging Scope One Click Operation For Hospital Orthopedics
Specifications
Brand Name :
STATEMED
Model Number :
STT13-PXM57
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
50 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Specifications :
50 LCD
Output Image size :
75*100 mm
Product Name :
Hand and foot surgery X Ray Imaging Scope
Resolution :
≥2.51p/mm
Weight :
4.55KG
Size :
160*540*380mm
Description

High frequency Stomatology LCD Portable X Ray Imaging Scope X Ray Machine

The 100mm LCD Portable X-Ray Unit is a high frequency X-Ray Imaging Scope which is based on CCD sensors imaging princle. Model is a unique device combining radioscopy and radiography functions. It is equipped with small display transmitting images to the computer, which by means of simple software can be recorded to digital media or printed out. The unit is indispensable in traumatology and orthopaedics for emergency diagnostics. 100mm LCD Portable X-Ray Unit is widely used in the radioscopy for knee joint, ankle ,femoral shaft and other thick parts.

Features

Stable and reliable

  1. High-frequency PWM circuit design
  2. High-strength ABS plastic body
  3. High-definition imaging design

Full Functioning

  1. Can be directly connected to the computer, stored or output through the printer, have recorded video function
  2. Built-in rechargeable battery, suitable for field operation
  3. High-resolution capture card, about 400 thousand pixels

Flexible and practical

  1. Streamlined design
  2. Light weight, suitable for carrying and use
  3. One-click operation

Application

  1. Hospital orthopedics, hand and foot surgery, pediatrics, dental and so on
  2. Fracture distal radius closed reduction, needle external fixation treatment
  3. Taking Foreign body from muscle
  4. Fieldwork, first aid site diagnosis
  5. Check contraceptive ring for birth control women

Parameter

Output Image size 100 mm
Survey Thinkness ≤300 mm
X-ray tube voltage 45-90KV
Tube current 0.25-0.5mA
Resolution ≥2.51p/mm
Grayscale ≥7 scale
Brightness ≥250lm/cm²
Generator working frequency 20Khz
Stand-Position Protection Area ≤0.33mGy/h
Power Consumption ≤200W
Power Supply AC220V±10%
Size 160*540*380mm
Weight 4.55Kg

Packing list:

1. X-Ray machine*1

2. Machine attachment:

  • Manual*1
  • Certificate*1
  • Warranty card*1
  • Power Adapter*1
  • Additional Protection Screen*1
  • Battery*1
