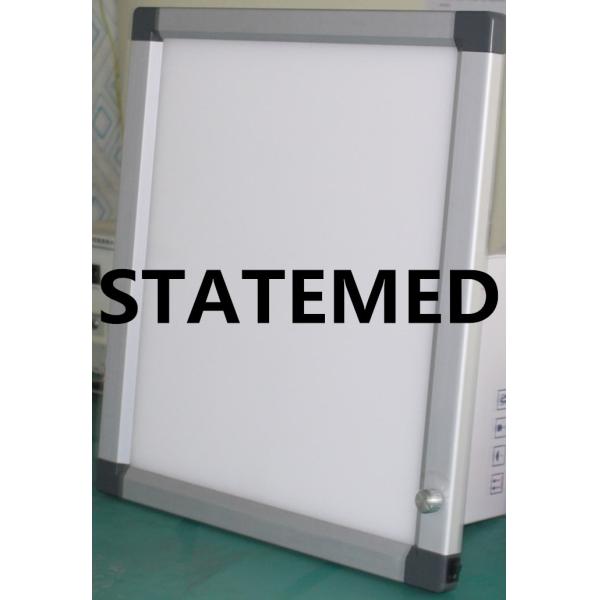

All-Metal Structure & Ultra-thin Medical Single LED X Ray Film Viewer 4KG

Performances

1. Inserted chip controlled
2. PWM digital dimming adjustable
3. Power supply optional

Functions

1. Inductive control type(bright once open)
2. Light dimmer type(scope:10-100%)
3. Normal type(fixed brightness)
4. Inductive control and light dimmer type(bright once open and light dimmer)
5. Subzone-inductive control and light dimmer type

Characteristics

1. Ultra-thin, the whole structure thickness is only 21mm
2. High brightness, max rated brightness over 4000cd/㎡, suitable for observing films of different density
3. Aluminum alloy frame:;decease light decay and color decay; sturdy and durable
4. Innovative film inserting; film inserts precisely; sturdy and durabl
5. Clipping instruction; self locking of roller pin and ball bearing
6. Light source: 5630 SMD LED from Germany OSRAM special for chip backlight is used, light efficiency over 100lm/w and use life up to one hundred thousand hours
7. Color temperature: 6500±K500; true white light without dazzling and protect doctor’s eyes
8. Light guide plate is edge-lit backlight; more uniform brightness distribution and uniform degree more than 90%; little light loss
9. Uniform brightness distribution without flickers, dark spaces, and eye strain
10. Control brightness through digital control key, it will shut down automatically with buzzer if no actions in 5 minutes; 0~9 stepless dimming; brightness memory
11. The screen size is same as film, which avoid light interference, even 14*17 film without light leakage
12. LED light bar is welded by automatic chip mounter without lead reflux, which avoid cold solder joint and LED damage because of high temperature during manual welding, and ensure product quality

Technical parameters
