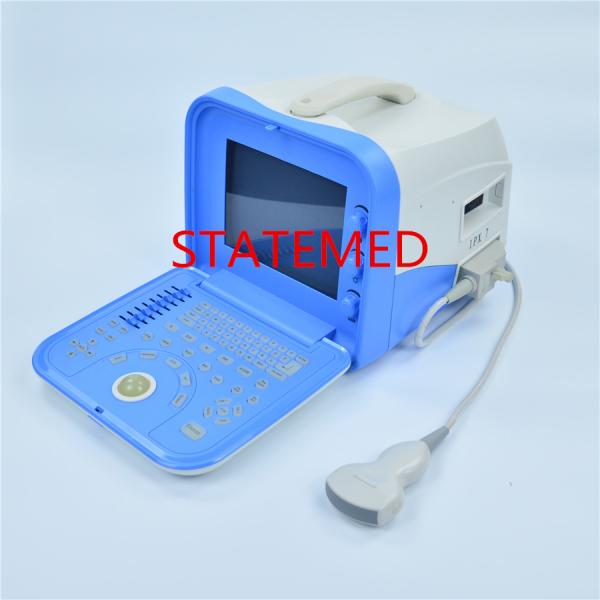

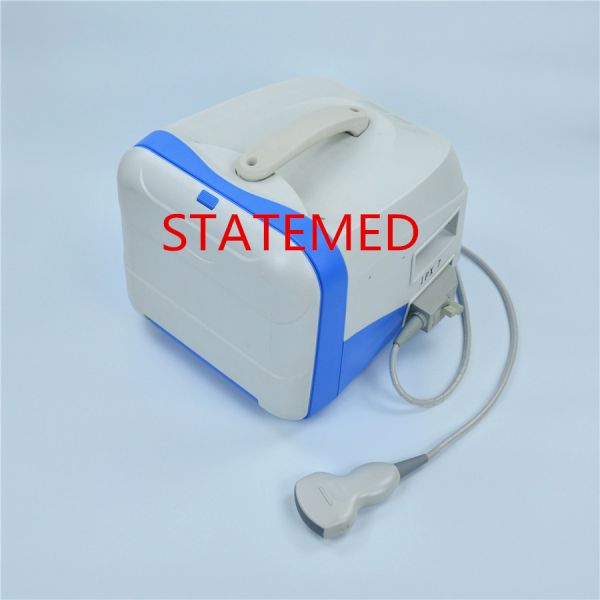

Portable Vet Ultrasound & Veterinary Portable Ultrasound Scanner

1. Requirement on Environment

1. Range of Ambient Temperature: +5℃～+40℃

2. Range of Relative Temperature: ≤80%

3. Range of Atmospheric Pressure: 800hpa～1060 hpa

4. Supplied voltage: AC 220V±22V or AC110v ±11v

5. Supplied frequency: 50Hz±1Hz or 60 Hz±1Hz

6. The screen should be far away from strong electric field, high magnetic field equipment and high pressure equipment, and direct sunshine shall be avoided. Sunshine should be avoided indoors, beneficial for image observation, ventilating, moisture proof and dust proof.

2. Requests of appearance

1. The surface of Diagnostic Equipment should be clean and beautiful color evenly; no scratches, dirt and oil damage. It is prohibited to have the bad phenomenon of blistering, peeling, cracking and white.

2. The characters and logos on the panel should be clear, durable. Besides this, the keyboard and mouse should be flexible and effective.

3. The control and adjusted parts should be flexible and reliable

3. Check-up after unpacking carton

After unpacking, the equipment should be inspected according to “Packing List”, and should be installed according to requirements and methods of the “Installation Procedure.”

4. Installation

● Power Connection

Inspect the equipment’s power source, after confirming it is within the range of power source, insert one end of the power line into the “Power Socket" on the back panel of the main frame (refer to figure 2), and connect another end to the single phase three-pin plug to ensure safe earth of the B Type Ultrasonic Diagnosis Equipment.

● Video Output

Connect Q9 plug, one end of the video line with the “video output” socket of the equipment’s back panel, and connect another end with the screen or the image processing equipment.

● Connection of RDL—96 Probe Connector

First, set the set bar on the probe connector to “Open” position, insert the location pin straight into the location hole on the gang socket, then set the set bar on the probe connector to “Lock” position, finishing the connection between the main frame and the probe.
