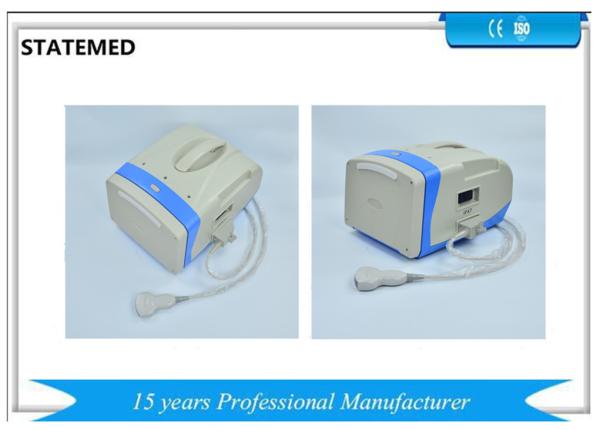

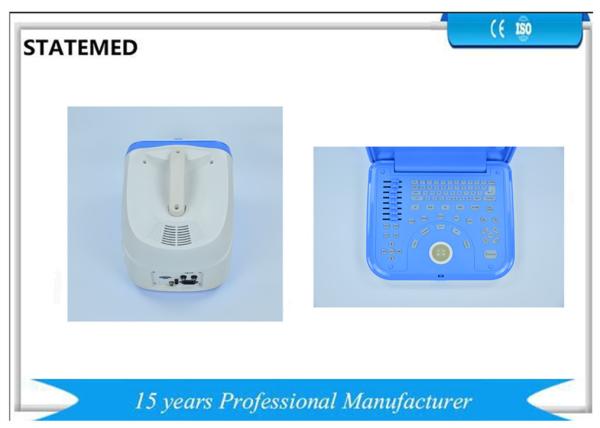

Portable Cow Veterinary Ultrasound Scanner Depth Display 190mm For Pregnancy Test
Portable Cow Veterinary Ultrasound Scanner Depth Display 190mm For Pregnancy Test
Portable Cow Veterinary Ultrasound Scanner Depth Display 190mm For Pregnancy Test
Portable Cow Veterinary Ultrasound Scanner Depth Display 190mm For Pregnancy Test
Specifications
Brand Name :
STATEMED
Model Number :
STT3-HUS26
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Depth display :
≥190mm
Frequency Conversion :
2.0MHz – 8.0 MHz≥190mm
Blind Zone :
≤4mm
Four display format :
B、B+B、4B、B+M、M
types of body :
Swine, Dog，Equine, Bovine, Sheep
Type of probe :
liner array
Description

Veterinary Portable Cow Ultrasound Scanner for Pregnancy Test STT-51353A-600B

1. Basic Principle

Ultrasonic Diagnosis Equipment is on the basis of different density and ultrasonic transmission speed, and different acoustic impedance (product of media density and velocity of sound), to regular electric impulse actuate piezoelectric wafer (transducer), ultrasonic at some frequency is produced, injecting the ultrasonic (sound wave) into body, reflection echo will be produced via different viscera’s interface, then the reflection echo can be absorbed by the transducer injecting such ultrasonic, when the transducer will convert the reflection echo (sound wave) to electric impulse, which after enlargement, examination and digital scanning, shall become standard video signal and display the intersection image of the organ on the screen of the monitor.

2. Technical Specification

The main functions of the main probe

2. 1. 1 The frequency of Electronic Convex Array probe is 3.5MHz(R=60)

2. 1. 2 Depth display: ≥190mm

2. 1. 3 Resolution (vertical direction): ≤1mm (depth ≤130mm)

≤2mm(130mm＜depth ≤160mm)

2. 1. 4 Resolution (cross direction) ≤2mm (depth ≤130mm)

≤3mm(130mm＜depth ≤160mm)

2. 1. 5 Precision of geometric position :cross direction≤10%; vertical direction≤ 5%

2. 1. 6 Blind Zone(mm): ≤4mm

2. 1. 7 The conversional frequency points of the main probe (3.5MHz Convex Array probe) are: 2.0MHz﹑3.5 MHz﹑4.5 MHz﹑5.0 MHz﹑5.5 MHz﹑6.5 MHz﹑7.5 MHz , the detailed requirements of the conversion frequency points are as follows:

The frequency of probe (MHz) f≤2.5 2.5＜f≤4.0 4.0＜f≤5.0 5.0＜f≤10
Type of probe

liner array ,

R≥60mm convex array

liner array ,

R≥60mm convex array

liner array ,

R≥60mm convex array

Superficial

R≥60mm convex array

(intra-cavityprobe )

R＜60mm convex

Array)

Resolution

(Lateral direction) mm

≤3 (depth)≤130)

≤4(130＜depth≤160)

≤2 (depth≤130)

≤3 (130＜depth≤160)

≤2

(depth≤60)

≤1

(depth≤60)

≤1

(depth≤40)

Resolution

(Vertical direction) mm

≤1 (depth≤130)

≤2 (130＜depth≤170)

≤1 (depth≤130)

≤2 (130＜depth≤170)

≤1

(depth≤80)

≤1

(depth≤80)

≤1

(depth≤40)
Blind zone,mm ≤4 ≤4 ≤3 ≤3 ≤5
Utmost depth display,mm ≥190 ≥190 ≥120 ≥80 ≥60
Precision of geometric position,%

Lateral≤10

Vertical direction≤5

Lateral≤10

Vertical direction≤5

Lateral≤10

Vertical direction≤5

Lateral≤5

Vertical direction ≤5

Lateral≤10

Vertical direction≤5

Portable Cow Veterinary Ultrasound Scanner Depth Display 190mm For Pregnancy Test
