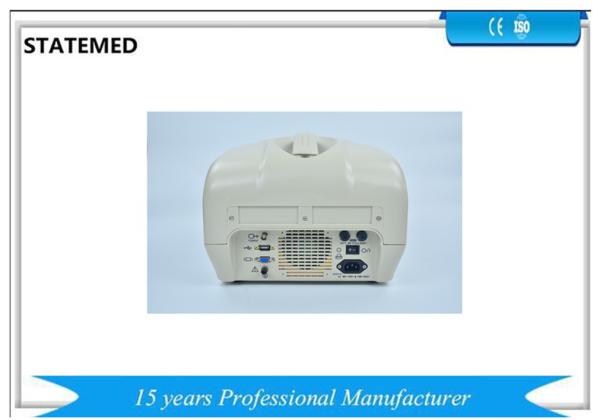

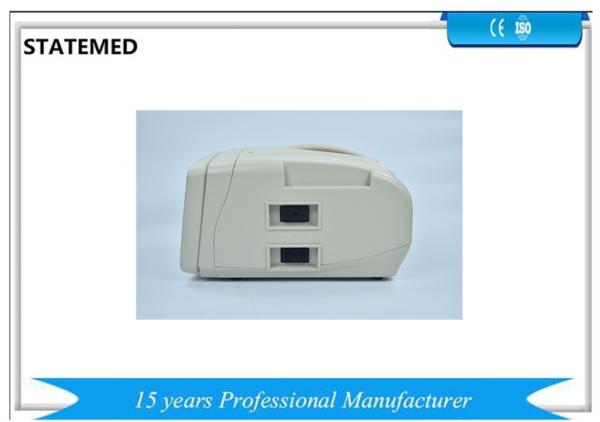

Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Laptop Swine Veterinary Ultrasound Scanner Machine Age Grey Scale 256 Levels
Specifications
Brand Name :
STATEMED
Model Number :
STT3-VUS69
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
competitive
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Four display format :
B、B+B、4B、B+M、M
Image grey scale :
256 levels
Frequency Conversion :
2.0MHz – 8.0 MHz
Blind Zone :
≤4mm
Vertical direction :
≤ 5%
Precision of geometric position :
cross direction≤10%
Description

Veterinary Ultrasound/veterinary Portable Ultrasound Scanner/cattle Pregnancy

1. Technical Specification

The main functions of the main probe

1. The frequency of Electronic Convex Array probe is 3.5MHz(R=60)

2. Depth display: ≥190mm

3. Resolution (vertical direction): ≤1mm (depth ≤130mm)

≤2mm(130mm＜depth ≤160mm)

4. Resolution (cross direction) ≤2mm (depth ≤130mm)

≤3mm(130mm＜depth ≤160mm)

5. Precision of geometric position :cross direction≤10%; vertical direction≤ 5%

6. Blind Zone(mm) ≤4mm

7. The conversional frequency points of the main probe (3.5MHz Convex Array probe) are: 2.0MHz﹑3.5 MHz﹑4.5 MHz﹑5.0 MHz﹑5.5 MHz﹑6.5 MHz﹑7.5 MHz , the detailed requirements of the conversion frequency points are as follows:

The frequency of probe( MHz) f≤2.5 2.5＜f≤4.0 4.0＜f≤5.0 5.0＜f≤10
Type of probe

liner array ,

R≥60mm convex array

liner array ,

R≥60mm convex array

liner array ,

R≥60mm convex array

Superficial

R≥60mm convex array

(intra-cavity probe )

R＜60mm convex

Array)
Resolution( lateral ) mm

≤3 (depth)≤130)

≤4(130＜depth≤160)

≤2 (depth≤130)

≤3 (130＜depth≤160)

≤2

(depth≤60)

≤1

(depth≤60)

≤1

(depth≤40)
Resolution (vertical direction)mm

≤1 (depth≤130)

≤2 (130＜depth≤170)

≤1 (depth≤130)

≤2 (130＜depth≤170)

≤1

(depth≤80)

≤1

(depth≤80)

≤1

(depth≤40)
Blind zone,mm ≤4 ≤4 ≤3 ≤3 ≤5
Utmost depth display,mm ≥190 ≥190 ≥120 ≥80 ≥60
Precision of geometric position,%

Lateral≤10

Vertical direction≤5

Lateral≤10

Vertical direction≤5

Lateral≤10

Vertical direction≤5

Lateral≤5

Vertical direction ≤5

Lateral≤10

Vertical direction≤5

2. The optional probes

1. 6.5MHz(R=13) Intra-cavity probe : 5.5 MHz﹑6.5 MHz and 7.5 MHz.

2. 7.5MHz Linear surface probe : 7.5 MHz﹑8.5 MH and 10.0 MHz.

3. Power

When AC 220V±22V or 110V±11V is changed , the equipment can also be operated as usual.

4. Working time

The continental working time for the Ultrasonic Diagnosis Equipment is more than 8 hours.

5. Selective configurations

The medical image work station can be connected with the ultrasonic if the function index of the former satisfies the requirements of the standard.

6. Safety

There are 60 items of Security Detection Project adapts

to the portable Ultrasound in the appendix A.

7. Environmental adaptation

It shall satisfy all the requirements of Climate environmental testing group Ⅱ and Mechanical environmental group Ⅱwhich are specified in the GB/T14710.
