B Mode Veterinary Instrument Ultrasound Scanner For Big Animal

Installation

● Power Connection

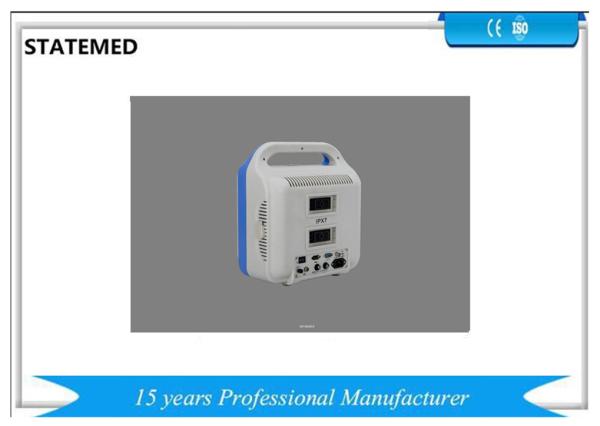

Inspect the equipment’s power source, after confirming it is within the range of power source, insert one end of the power line into the “Power Socket" on the back panel of the main frame (refer to figure 2), and connect another end to the single phase three-pin plug to ensure safe earth of the B Type Ultrasonic Diagnosis Equipment.

● Video Output

Connect Q9 plug, one end of the video line with the “video output” socket of the equipment’s back panel, and connect another end with the screen or the image processing equipment.

● Connection of RDL—96 Probe Connector

First, set the set bar on the probe connector to “Open” position, insert the location pin straight into the location hole on the gang socket, then set the set bar on the probe connector to “Lock” position, finishing the connection between the main frame and the probe.

Warning:

1. Don’t move or insert the plug of the connector for fear of damaging the probe and main frame; once the probe and the main frame are connected, please do not move or insert the probe for fear of causing loose contact. Moving or inserting the probe can be conducted only when the machine is shutdown.

2. For double probe faucet machine, the lower one of the two faucets is the standard probe opening, the higher one is the selective probe opening. Misconnection should be avoided by all means.

● Installation VGA Output

The equipment, equipped with DSTN processing module, can display image on colorful screen by inserting VGA input plug of the colorful screen or line-by-line screen into the “VGA Output” socket on the back panel and tightening it, and then inserting the power source plug into the standard three pins socket of the power source.
