ENT Workstation With Imaging System , Powerful Suction Pump ENT Opd Treatment Unit
ENT Workstation With Imaging System , Powerful Suction Pump ENT Opd Treatment Unit
ENT Workstation With Imaging System , Powerful Suction Pump ENT Opd Treatment Unit
ENT Workstation With Imaging System , Powerful Suction Pump ENT Opd Treatment Unit
Specifications
Brand Name :
STATEMED
Model Number :
STT-3202H
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
10 working days
Packaging Details :
standard export wooden case
Product Name :
ENT Workstation With Imaging System
Compressor pump :
2.5kg/cm2 (Optional imported parts)
Suction pump :
740mmHg(max),Optional imported parts
Larynhoscope preheater :
450W(adaptive control system,adjustable time)
Desk top :
1 pc Marble
Consumption: :
1200VA
Description

Hospital Deluxe Single Station ENT Treatment Unit,Ear,Nose,Throat Workstation with Imaging System

Characteristic:

  1. Powerful suction pump and low noise pump block with oil free suction motor.
  2. Exquisite spray tips make pulverization for liquid of medicine,rational design,convenience of detection and long life.
  3. Stable performance of preheating system,setting heating time to off automatically.
  4. Applicable in many ways through ENT chair,computer,endoscope,etc

Applications

It is applicable to ENT section checking and treating patients in every hospital.

The environment and condition of usage

Temperature: 10℃～35℃

Humidity: ≤80%

Pressure: 86kpa～106kpa

Working condition

Power supply: 220V±10% ;50 Hz -60 Hz;

Consumption: 1200VA

Duration: continuous running time ≥8h

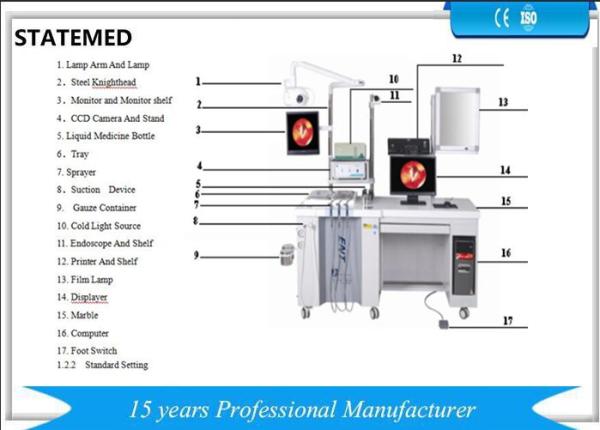

Standard Equipment
Desk top 1pc
Compressor pump 1pc
Suction vacuum pump 1pc
Main suction apparatus 1pc
Larynhoscope preheater 1pc(Time is adjustable)
projection lamp (LED) 1pc
Computer 1pc
Image processing system software 1pc
Printer 1pc
Cold light source (LED) 1pc
Monitor (LED) 1pc
CCD camera 1pc
X-ray viewer (LED) 1pc(optional LED)
Endoscope 3pcs
Sprayer 3pcs(curved 1pc,straight 2 pcs)
Suction device 1pc
Tray 2pcs
Cotton can 2pcs
Liquid medicine bottle 6pcs
Control panel 1pc
Technical Parameter
Desk top Marble
Positive pressure 2.5kg/cm2 (Optional imported parts)
Negative pressure 740mmHg(max) (Optional imported parts)
Main suction apparatus 2500CC
Larynhoscope preheater 450W(adaptive control system,adjustable time)
LED projection lamp ≥8 W ; illuminate≥1×104
Sprayer Pressure: 0.1MPa～0.15MPa (adjustable)
Suction device ≥0.07MPa (adjustable)
Temperature 10℃～35℃
Voltage 220V
Frequency 50/60HZ
Optional:
Endoscope
Endoscope imaging system
Imaging management system
ENT operating chair
Doctor chair
Cold light source

Image Processing System
1. Camera(standard definition )
Image sensor SONY SUPER HAD CCD
Pixel output PAL:795(H)*598(V)
Horizontal definition ≥700 line
Scanning System PAL:752 lines,50fied/sec
White balance Automatic/manual lock white balance
Synchronous system internal synchronization
Video output CVBS*2
Gamma correction 0.45
Signal-noise ration ≧55dB
White balance range 200—15000‘K
Electronic shutter 1/50—1/100000(second consecutive)
Camera IPX7 level (waterproof,can be
Soak disinfection)
2. Cold light source
Colour temperature 3000K--7000K
Illuminate ≥1400000lux
Luminous Flux Output 1800Lm
Noise ≦55dB(A)
Color rendering index ≧90
Powder/voltage AC100-240V 50/60Hz
LED power 60W
Effective optical power ≧100mW
Temperature 5℃~40℃
Spectral range 400-700nm
Light transmitting bundle 4mm*250mm F20
3. Monitor
Size 19"
Proportion 4:5
Resolution ratio 1280×1024
Chroma 16.7M
Contrast 1400:1
Visual angle 178/178
The response time 5ms
Distance 0.294mm*0.294mm
4. Print system
computer Tsinghua Tongfang/Dell
printer Canon 2880
5. Endoscope
Ear endoscope 0°
Sinuscope 0°
Laryngoscope 90°

Wooden case Package:
