Many kinds of ultrasound scanners with high definition images in our shop available for QUICK SHIPPING ,SPECIAL PRICE AND NICE QUALITY are waiting for you.

[ FACTORY DIRECT PRICE - QUICK SHIPPING - NICE QUALITY]

Vaginal Ultrasound Equipment

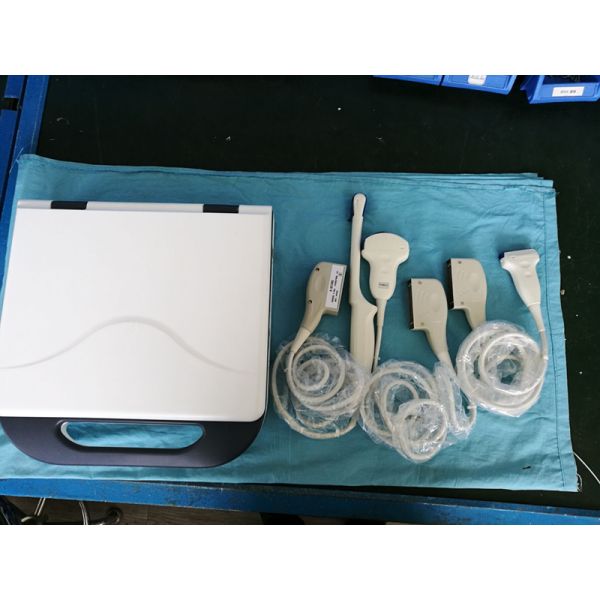

1. REAL SHOT FOR QUICK SHIPPING:

2. Product Specification:

Application:Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/SmallParts/Vascular/Pediatrics/Musculoskeleta.

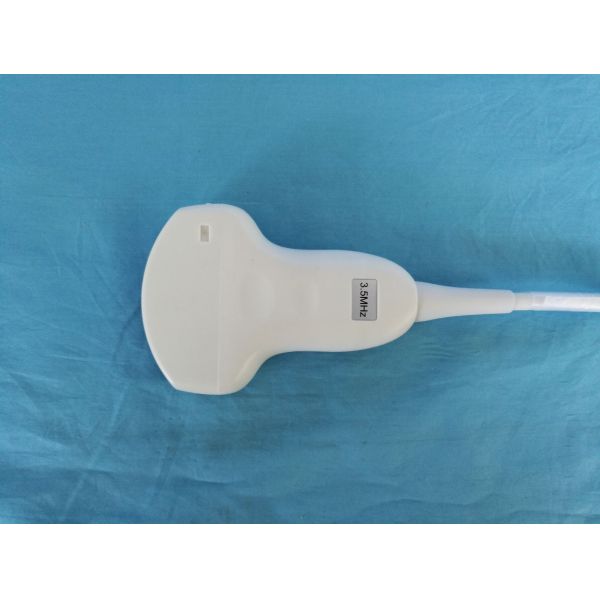

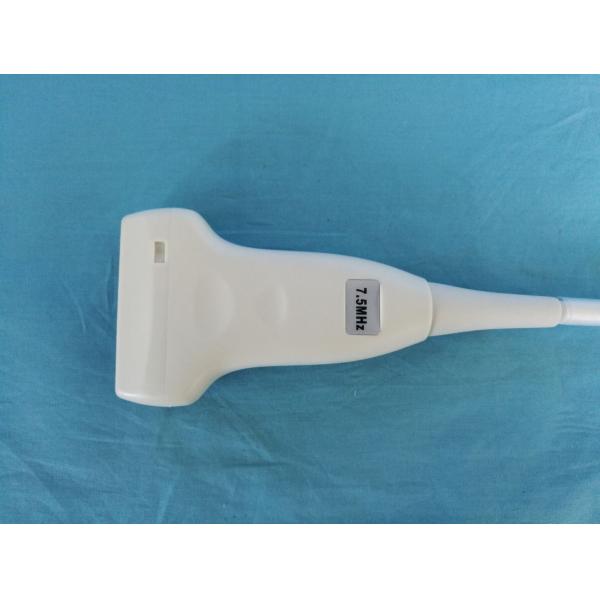

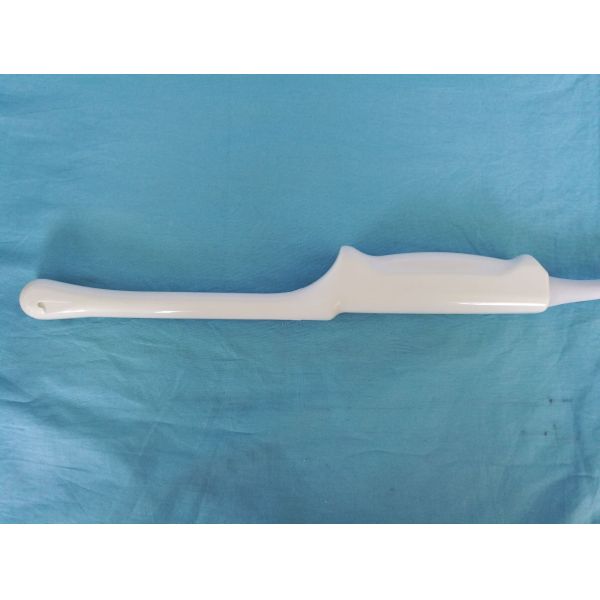

Scanning mode: Convex array,Trans vagina, high-frequency linear array, Micro-convex;4D array;

Dynamic range: 0~120dB adjustable;

Display mode: B,B/B,M,B/M,CFM,CFM/B,PDI,B/PW, total eight mode; B/D dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color processing:16 kinds of pseudo color encoding can optional;

Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

Image magnification: picture in picture zoom in and zoom part function;

Image processing:

Edge enhancement: Multilevel adjustable

Frame average: Multilevel adjustable

Line average: Multilevel adjustable

Focus Optimization: Multilevel adjustable

Gray Restrain: Multilevel adjustable

Gamma correction: Multilevel adjustable

Contrast: Adjustable

Brightness: Adjustable

Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check condition, reduce the adjusting operation keys;

One-click optimization function: preset several parameters adjusting focus on a Key, a key to realize image fast optimization;

Measurement and calculation: B mode routine measurement:Distance, circumference, area, volume, angle, ratio, and stenos rate.M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.

Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.

Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).

Cardiology measurement: LV measurement.

Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.

PW measurements: Time, speed, Heart Rate, RI, PI, etc.

Other measurement: Slice volume measurement, hip joint angle measurement.

Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;

Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation;

Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;

Display:15 inch high definition progressive no flicker color medical monitor

Gray scale:256 levels

Depth display:≥250mm

Dynamic range: 0~120dB adjustable,real-time display

Electrical Power: Voltage:100V~240V

Power:DC19V10A

Frequency:50/60Hz

Equipment size: 369mm(Length)x380mm(Width)x79mm(Height)

Equipment weight: 6.5kg

Operating Temperature:5℃~40℃

Humidity:≤80%

Pressure:700hPa~1060hPa

Storage Temperature:-5°C~40°C

Transducer Ports:1

USB Ports:1
