Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy
Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy
Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy
Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy
Specifications
Brand Name :
STATEMED
Model Number :
STT2-CDU31
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
competitive
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Type :
Portable Medical Color Doppler Ultrasound Scanner
Imaging mode :
4D,Free-hand 3D
Specialty ode :
Abdomen/Cardiac/Obstetrics
Function :
3D Ultrasound scanner
Scanning mode :
Convex array
Display Mode :
M
Gain adjusts :
8 segments TGC
Probe :
Linear probe
Description

Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy

State (Beijing) Medical Technology Co., Ltd. established in 2002, is a High-tech medical products enterprise combining R&D, production ,sales and after-sale together, specialized in Medical Ultrasonic Instruments, ENT Workstation, Medical Endoscope Imaging Systems, Colposcope, Spectral Instrument for gynecology, Plasma Air Disinfection Machine, X-ray machines and etc. We constantly develop high-quality electric medical devices by adopting the domestic advanced technical facilities to blend the computer information process technology and clinical medicine research perfectly.

I. Specification:

ElectricalPower Voltage: 100V~240V
Power: DC19V10A
Frequency: 50/60Hz
Physical Specifications Equipmentsize:369mm(Length)x380mm(Width)x79mm(Height)
Equipment weight: 6.5kg
Conditions Operating Temperature:5℃~40℃
Humidity: ≤80%
Pressure:700hPa~1060hPa
Storage Temperature:-5°C~40°C
Connectivity/Media
/Peripherals Transducer Ports:1
USB Ports:1
Hard Disc:120GB(SSD),120G/256GBSSD(Optional)
Foot switch:USB
External Display:VGA,HDMI
USB Printer
Digital Laser Printer
Digital B/W Thermal Printer
Cine/ImageMemory

Cine Memory: 512 frames
Cine Review Speed: 1,2,4,8
Cine Review Loop
Cine Capture Function
DICOMConnectivity DICOM 3.0 Compliant
ImageStorage Storage Format:PNG,AVI,BMP,JPEG,DICOM
Export Video Format:AVI
Export Image Format:PNG,JPEG,BMP
DICOM
USB Flash Drive

2. The performance of each probe in grayscale imaging mode:

Performance Probe type and nominal frequency
2.0≤f＜5.0 5.0≤f＜8.0 5.0≤f＜10.0
a) robe type, model Convex array (model TC60A) Cavity (model TC10A) Line array (model TL40A)
b) robe nominal frequency (MHz) 3.5 5.5 7.5
c) robe depth(mm) ≥160 ≥80 ≥50
d) Lateral resolution (mm)

≤3(depth≤80)

≤4(80＜depth≤130)

 ≤2(depth≤40) ≤2(depth≤40)
e) Axial resolution (mm)

≤2(depth≤80)

≤3(80＜depth≤130)

 ≤1(depth≤40) ≤1(depth≤50)
f) Blind zone (mm) ≤5 ≤5 ≤3
g) Horizontal geometric position accuracy (%) ≤15 ≤20 ≤10
h) Longitudinal geometric position accuracy (%) ≤10 ≤10 ≤5
i) Slice thickness (mm) ≤7 ≤5 ≤5
j) Perimeter and area measurement deviations (%) ≤±20 ≤±20 ≤±20
k) M mode time display error (%) ≤±10 ≤±10 ≤±10

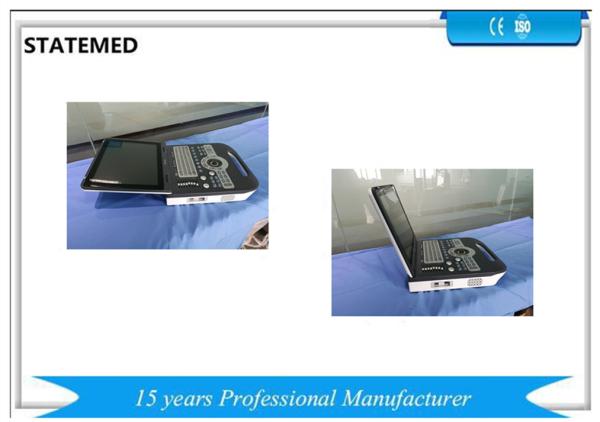

Product pictures:

Portable Medical Color Doppler Ultrasound Scanner System Full Digital For Pregnancy
