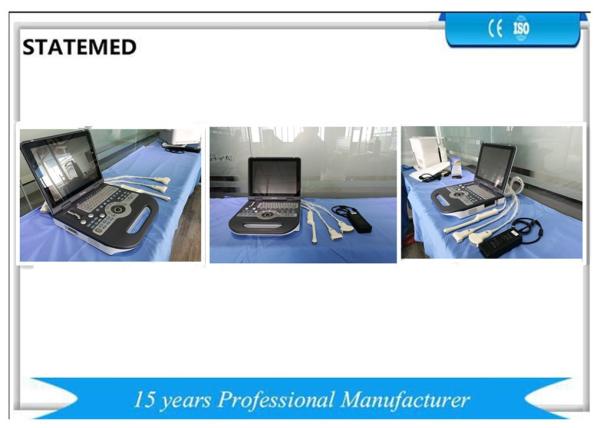

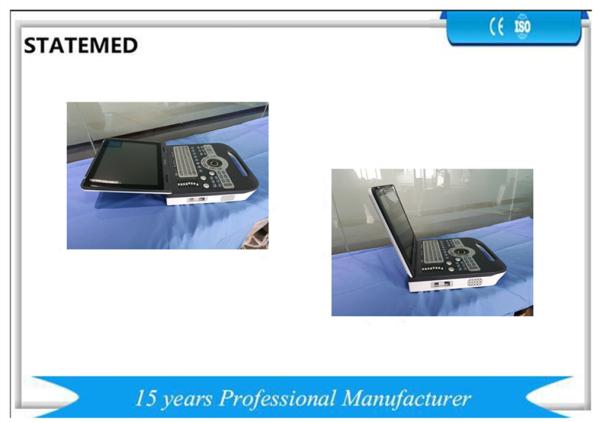

Human Color Doppler Ultrasound Scanner With 80 E / 128 E High Definition Image

The Main Function:
With all-digital beamforming technology.
Scanning methods: convex array, linear array, cavity
Dynamic Range: Dynamic Range: 0 ~ 120dB adjustable, real-time display
Display mode: B, B / B, M, B / M, CFM, CMF / B, PDI, B / PW, a total of eight
Application mode: with abdomen, gynecology, obstetrics, superficial organs, urology, heart, user-defined 1, user-defined 2,
User-defined 3, user-defined a total of 10 kinds of modes
Acoustic output: Acoustic output: real-time display of mechanical index and thermal index
Sound power: sub-file adjustable, real-time display
Grayscale: 256 levels
Display depth: ≥ 250mm
B / D and use: Line: B / PWD; convex array: B / PWD.
Pseudo-color processing: 15 kinds of pseudo color coding optional
Gain adjustment: 8-stage TGC gain adjustment, B / M / D / C independently adjustable, TGC curve automatically displayed and hidden.
Image enlargement: with picture in picture enlargement and partial enlargement function.
Image processing: adjustable scanning angle; image can be black / white reversal, left / right, up / down flip; statistical histogram, edge enhancement,
Gamma correction, frame averaging, line averaging, line density, image brightness and contrast are adjustable.
Automatic optimization function: Built-in a variety of inspection types, for different inspection organs, preset the best image inspection conditions,
Reduce the operation of the key adjustment.
A key optimization: preset a variety of parameter adjustment focused on a button, to achieve a key image quickly optimized.
Measurement Software Package: Software package for abdominal, cardiac, obstetric, gynecological and superficial organ measurements. Vector drawing easy to operate,
Can be arbitrarily selected to modify a measurement items, mobile operations, images can be dynamic and static measurements.
Image Management: Support dynamic and static image acquisition, storage, playback and transmission, built-in hard disk capacity ≥ 160GB.
Case Management: Built-in patient information database, patient information can be stored, retrieved and managed.
Report system: automatic report generation system, full-screen Chinese characters and editors.
Output Interface: SR323, USB, DICOM interface.
