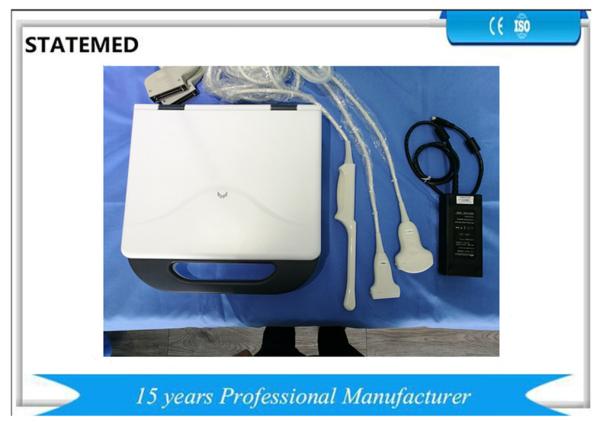

Portable 100 v - 240 v Gynecology 3 D Or 4 D Color Doppler Ultrasound Scanner

About the Eqipment:

Scanning mode: Convex array,Trans vagina, high-frequency linear array, Micro-convex;4D array;

Dynamic range: 0~120dB adjustable;

Display mode: B,B/B,M,B/M,CFM,CFM/B,PDI,B/PW, total eight mode;

B/D dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color processing:16 kinds of pseudo color encoding can optional;

Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;

Image magnification: picture in picture zoom in and zoom part function;

Image processing:

Edge enhancement: Multilevel adjustable

Frame average: Multilevel adjustable

Line average: Multilevel adjustable

Focus Optimization: Multilevel adjustable

Gray Restrain: Multilevel adjustable

Gamma correction: Multilevel adjustable

Contrast: Adjustable

Brightness: Adjustable

Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check condition, reduce the adjusting operation keys;

One-click optimization function: preset several parameters adjusting focus on a Key, a key to realize image fast

optimization;

Measurement and calculation: B mode routine measurement:Distance, circumference, area, volume, angle, ratio, and

stenos rate.M mode routine

measurement: Heart rate, time, distance, speed, ratio, etc.

Gynecology measurement: Uterus, cervix, endometrial,

ovary, follicular.

Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).

Cardiology measurement: LV measurement.

Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.

PW measurements: Time, speed, Heart Rate, RI, PI, etc.

Other measurement: Slice volume measurement, hip joint

angle measurement.

Image storage: Image storage, video storage, cine loop,

disk storage capacity≥160G;

Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation;

Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English

editor;

If any questions,please feel free to contact me!
