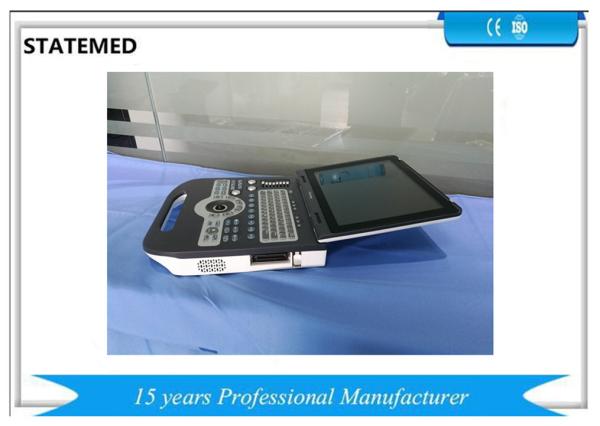

Urology Laptop 4D USB Color Doppler Ultrasound Scanner 4D Array Scanning Mode

Specification:

Application
Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/SmallParts/Vascular/Pediatrics/Musculoskeleta.
Scanning mode: Convex array,Trans vagina, high-frequency linear array, Micro-convex;4D array;
Dynamic range: 0~120dB adjustable;
Display mode: B,B/B,M,B/M,CFM,CFM/B,PDI,B/PW, total eight mode;
B/D dual-purpose:linear array: B/PWD; convex array: B/PWD;Pseudo color processing:16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
Image processing:
Edge enhancement: Multilevel adjustable
Frame average: Multilevel adjustable
Line average: Multilevel adjustable
Focus Optimization: Multilevel adjustable
Gray Restrain: Multilevel adjustable
Gamma correction: Multilevel adjustable
Contrast: Adjustable
Brightness: Adjustable
Self-motion optimize function: Built-in multiple check type, according to different in spection organs, preset best image check condition, reduce the adjusting operation keys;
One-click optimization function: preset several parameters adjusting focus on a Key, a key to realize image fast
optimization;
Measurement and calculation: B mode routine measurement:Distance, circumference, area, volume, angle, ratio, and
stenos rate.M mode routine
measurement: Heart rate, time, distance, speed, ratio, etc.
Gynecology measurement: Uterus, cervix, endometrial,
ovary, follicular.
Obstetrics measurement: EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement: Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint
angle measurement.
Image storage: Image storage, video storage, cine loop,
disk storage capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation;
Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English
editor;
ElectricalPower:Voltage:100V~240V
Power:DC19V10A
Frequency:50/60Hz
Physical Specifications Equipmentsize:369mm(Length)x380mm(Width)x79mm(Height)
Equipment weight:6.5kg
Conditions Operating Temperature:5℃~40℃
Humidity:≤80%
Pressure:700hPa~1060hPa
Storage Temperature:-5°C~40°C
Connectivity/Media
/Peripherals
Transducer Ports:1
USB Ports:1
Hard Disc:120GB(SSD),120G/256GBSSD(Optional)
Foot switch:USB
External Display:VGA,HDMI
USB Printer
Digital Laser Printer
Digital B/W Thermal Printer
Cine/ImageMemory

Cine Memory:512 frames
Cine Review Speed:1,2,4,8
Cine Review Loop
Cine Capture Function
DICOMConnectivity DICOM 3.0 Compliant
ImageStorage Storage Format:PNG,AVI,BMP,JPEG,DICOM
Export Video Format:AVI
Export Image Format:PNG,JPEG,BMP
DICOM
USB Flash Drive
