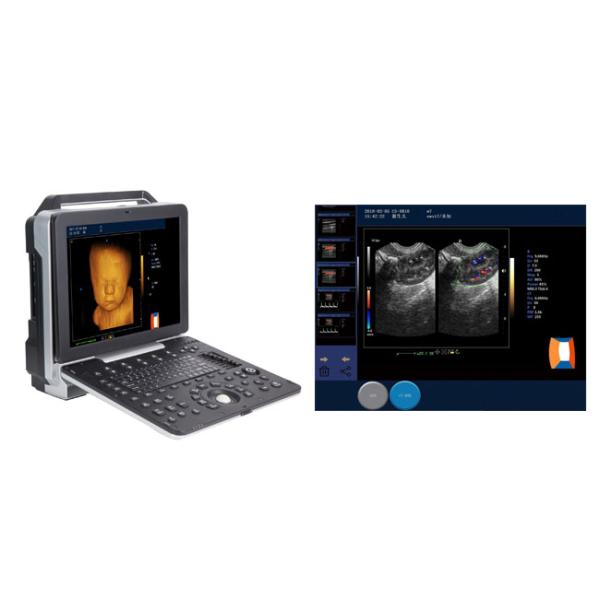

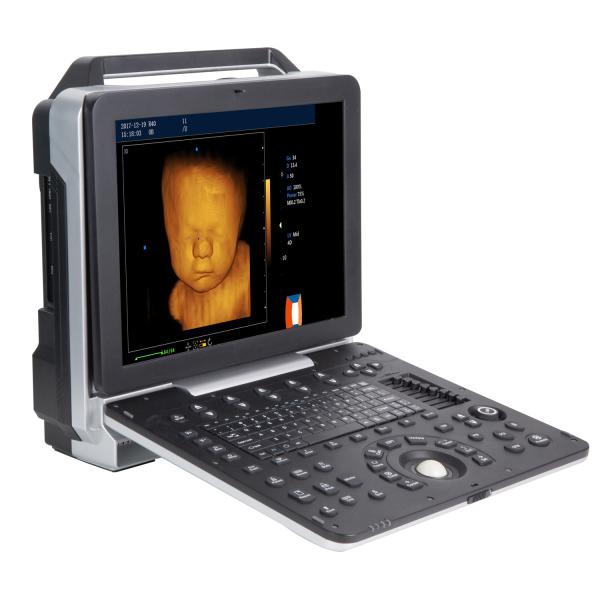

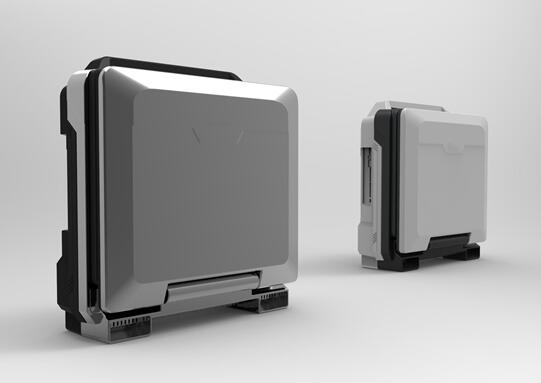

Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function
Specifications
Brand Name :
STATEMED
Model Number :
STT3-CDU83
Certification :
CE
Place of Origin :
Beijng China
MOQ :
1 set
Price :
competitive
Payment Terms :
T/T, Western Union, Alibaba Trade Assurance, MasterCard, E-checking, Visa
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
Aluminum foil box, carton with foam
Product name :
Portable 3D 4D Real Time Ultrasound Machine Color Doppler THI PW CW Multi Function Ultrasound Machine
Display :
15 inch high resolution medical LCD
Probe connectors :
2
Color frequency :
≥3 kinds, visible and adjustable
Gray Map :
≥16 level, visible and adjustable
Dynamic range :
20-280db
Resolution :
Horizontal≤1mm; Vertical≤0.5mm
STC gain control :
≥8 segments
Line density :
≥256, visible and adjustable
Scanning angle :
50°-100°, visible and adjustable
Description

Portable 3D 4D Real Time Ultrasound Machine Color Doppler THI PW CW Multi Function Ultrasound Machine

Multiple probe configuration:
1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°～85°, visible and adjustable.
2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging technology and 2D beam deflection technology
3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°～160°, visible and adjustable.
4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.
5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function

Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function

Doppler mode:
1With Pulse Wave Doppler (PW) and Continuous Wave Doppler (CW)
2 PW blood flow measurement speed: min speed: ≤0.2 cm/s, max speed: ≥1500cm/s
3 CW blood flow measuremnet speed: min speed: ≤0.6cm /s , max speed: ≥7000cm/s
4 Sampling volume size: 1mm-20mm, visible and adjustable
5 Sampling angle correction: -80—80 °
6 Spectral Gain: adjustable
7 PW Doppler frequency: ≥3 kinds, CW Doppler frequency: ≥15 kinds, visible and adjustable
8 Real-time automatic Doppler envelope mapping and automatic measurement and analysis
9 Baseline: Zero shift adjustable

Color blood flow imaging mode:
1 Color gain: adjustable
2 Color frequency: ≥3 kinds, visible and adjustable
3 Sampling frame: size and position adjustable
4 Color blood flow steer: ≥3 angles adjustable
5 Color map: 1—9 level
6 Color persist: 0—6 level
7 B/C split display: available

Portable 3D 4D Real Time Color Doppler Ultrasound Scanner Multi Function

Multiple probe configuration:
1 Convex probe frequency: 2.0-5.0MHZ(multi-frequency, Harmonic frequency≥5 ), probe scanning angle 20°～85°, visible and adjustable.
2 Linear probe frequency: 6.0-12.0MHZ(multi-frequency, harmonic frequency ≥4 ), probe scanning with trapezoidal imaging technology and 2D beam deflection technology
3 Trans-vaginal probe frequency: 5.0-9.0MHZ(multi-frequency, harmonic frequency ≥2 ), probe scanning angle 20°～160°, visible and adjustable.
4 Real time 3D (4D) volume probe frequency: 2.0-6.0MHz, 4 segments multi-frequency.
5 Phased array probe frequency: 2.5-4.0MHz, 3 segments multi-frequency.

If you have anymore questions, don't hesitate to contact us.
