64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
Specifications
Brand Name :
STATEMED
Model Number :
STT2-BWU73
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union,Alibaba Trade Assurance
Supply Ability :
300 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Name :
Portable 2D ultrasound machine for pregnancy with good price
Dynamic Range :
0~120dB ajustable
Permanent Storage :
128 images
Focus Position :
1,2,3 and 4-segments dynamic electron focusing
E-zoom :
magnify 2 times of real time image
body marks :
64 body marks
Description

Portable 2D ultrasound machine for pregnancy with good price

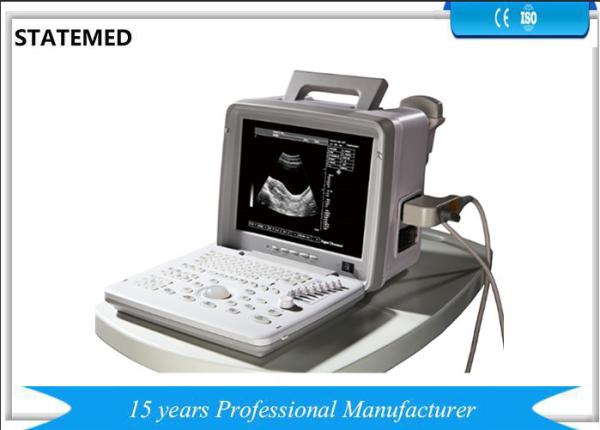

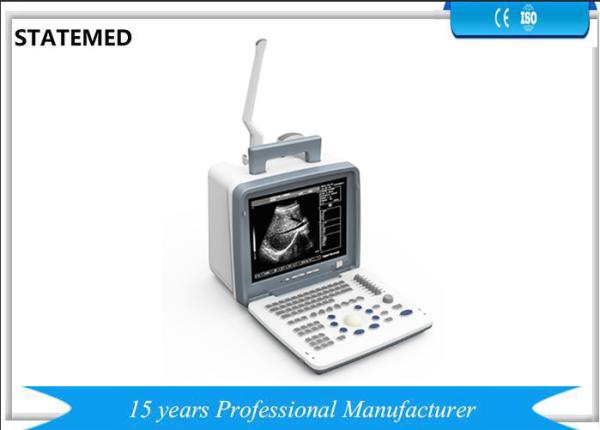

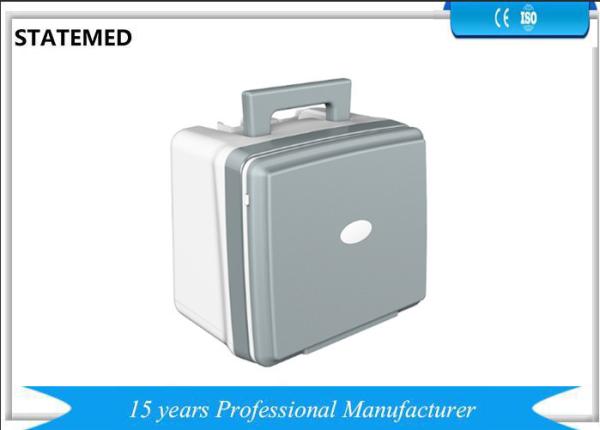

1. Product Photos:

64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images

2. Product Information

I.Specification:

ModelSTT2-BWU73 LED Portable VET B Scanner
Display Modes

3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M
5 MHz/R20 Dimpling array probe:B
6.5MHz/R13 Dimpling array probe:B
7.5 MHz/L40 Line array probe:B

Image Mutiplying Factor3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
( 6modes)x0.8, x2.0 (display penetration depth)
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoommagnify 2 times of real time image
Dynamic Range0~120dB ajustable
Focus Position1,2,3 and 4-segments dynamic electron focusing
Image Processing:γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Frequency Conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring FunctionDistance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Functionhospital name, patient’s name, age and gender
64 body marks (with probe’s position);
Full-screen character annotation; Real-time clock display
Puncture Guide3.5MHz convex array probe can display puncture guide line in B mode
Gain Control8 segments TGC and overall gain can be adjusted respectively
Image Polarityleft and right flip, black and white flip, up and down flip
Capacity Cine Loopreal time display 256 consecutive images which are memorized successively
Image Playbackseries playback or check one by one
Permanent Storage:128 images
Output InterfaceVGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc
USB PortOffers storing images in USB flash disk

II Application: 64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
III Features:
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 1 SVGA video outputs and 1 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.

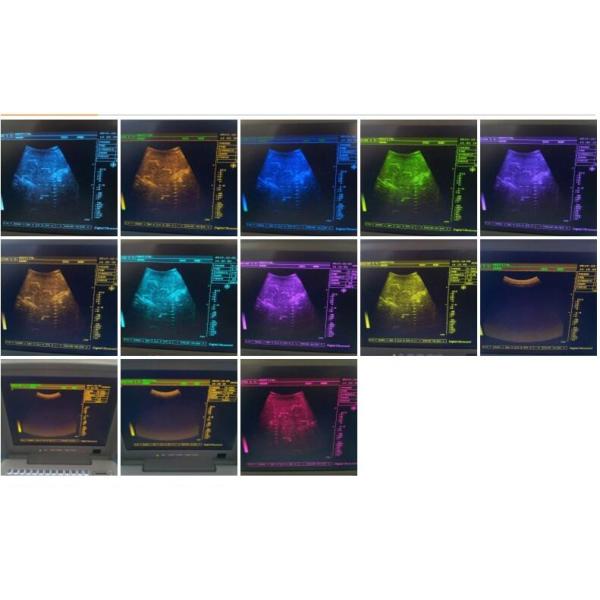

pseudo color photo:

64 Body Marks Portable 2D Ultrasound Machine For Pregnancy 128 Images
