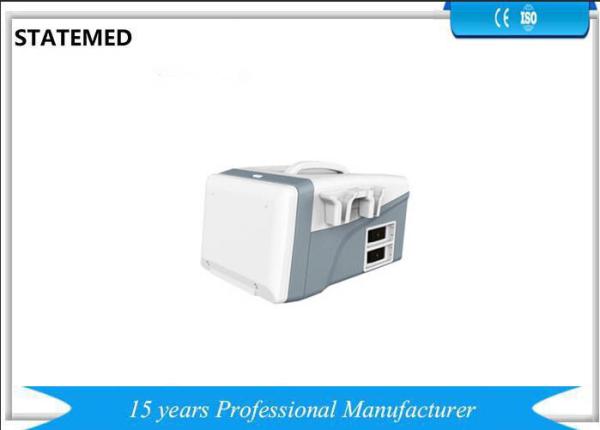

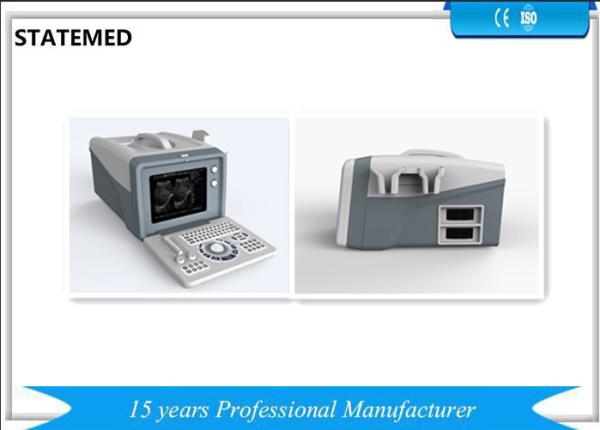

Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements
Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements
Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements
Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements
Specifications
Brand Name :
STATEMED
Model Number :
STT2-BWU72
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union,Alibaba Trade Assurance
Supply Ability :
300 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Name :
Ultrasound Scanner for Pregnancy Test
Display :
10 inch LED monitor
Elements :
80 elements
Frequency Conversion :
2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz
Permanment storage :
128 images
Gray Scale :
256 levels
Description

Medical Equipment Cheap Portable Ultrasound Scanner for Pregnancy

We can offer kinds of ultrasound machines which all passed European CE safety certification, portable ultrasound machine, trolley type, USB ultrasound probe and wireless ultrasound probe. Quality is our culture, we can offer you a competitive advantage products.

1. Product Description

I Specification:

Model STT2-BWU72
Probe 80 elements R60, 3.5MHz multi-frequency convex probe
Probe automatic identification
Focus 4 segments dynamic electron focusing
double encoder regulations
Frequency Conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz /5.0MHz
Image processing Variable aperture
dynamic apodization
Dynamic filter
Edge enhancement
Digital space-time filter
8γ corrections
16 pesudo colors
Line correlation
Frame correlation
point correlation
linear interpolation
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Measurement and Note Distance
circumference/area(method of ellipse,method of loci)
heart rate
gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC)
expected date of confinement and fetus weight,etc.
full-screen character annotation,with report page
Gray scale 256 levels
Gain Control 8 segments TGC and overall gain can be adjusted respectively
Permanment storage 128 images
Cine loop: 256 frames or check one by one
Output interface: 2 SVGA video outputs and 2 PAL video outputs
Extended Function: Optional USD function,priter fuction,.5MHz trans-vaginal probe, 7.5MHz linear probe, 7.5MHz rectal probe, mobile trolley, video printer, and ulatrasonic image workstation, etc.

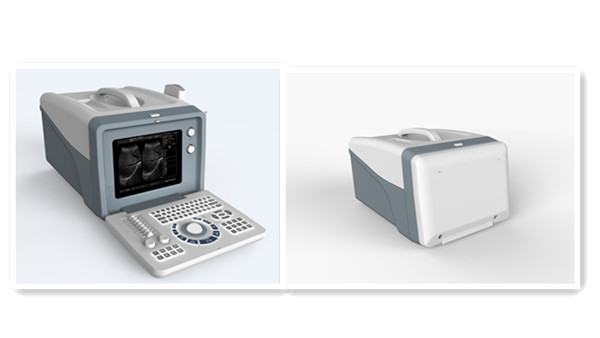

Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements

II.Standard Configuration:

1. One host machine

2. One convex array probe:F=3.5MHZ

3. USB port

4.10 inch CRT displayer

III Optionals probes

Medical Equipment Portable Ultrasound Machine For Pregnancy 80 Elements

IV Package size

Gross Weight/NET WEIGHT:13/10kg

Size:480X380X410(mm)
