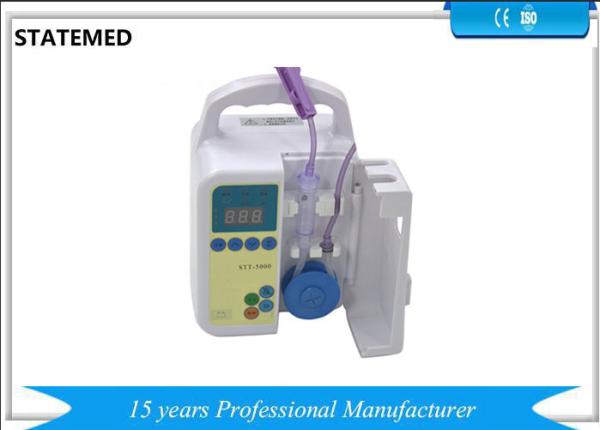

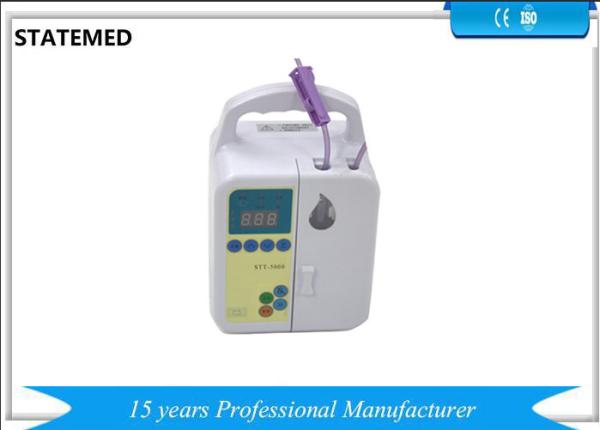

CE Approved 1.6 kg Medical Portable Enteral Feeding Pump For Patient

Descriptions:

Enteral Feeding Pump is for ambulatory enteral patients.Lightweight with a 14-hour battery,used with disposable feeding bag enteral feeding pump provides feeding and flushing in a completely portable device. This feeding pump is the first hydrating and ambulatory enteral device available. It assures clinicians of accurate and reliable function while providing patients with freedom and mobility.

Features:
Feeding sets are DEHP-free and latex-free
Safe-T-Valve on feeding sets are designed to protect against runaway feeding if set is improperly loaded or becomes dislodged from pump
Free-Flow Alarm: Stops flow and alerts caregiver to free-flow condition when set is properly loaded
Smart Pump: Dial settings designed to take the guesswork out of pump programming—making operation easy to learn, easy to use, and easy to teach
Programmable Hold: If caregiver desires HOLD for other than 5 minutes for patient care, another interval (1 to 90 minutes) may be selected
Lockout Features: Allows caregiver to temporarily disable SET RATE, SET DOSE, and CLEAR VOLUME dial settings to prevent unauthorized or accidental changes

Important Safety Information
THIS PUMP IS FOR ENTERAL USE ONLY - NOT FOR IV USE
Confirm proper placement and function of patient's enteral feeding tube (nasogastric, jejunostomy, gastrostomy, etc) and verify the following before initiating feeding:
1. Only an t Nutrition Enteral Pump Set is being used
2. Flow rate is set at the prescribed mL/hr
Pump set and container should be replaced as needed, or at least every 24 hours, to avoid fluid-contamination problems.
See Pump Operating Manual for Complete Safety Information and Instructions for Use.

Working Theory:

Enteral feeding pump consists of shell,control panel,pump cover and peristaltic pump.Through peristaltic pump squeeze pump tubs to reach delivery nourishment.There is a microcomputer in the pump,it can control pump work status,flow rate,required volume and complete alarm,stop pump function.

Main Technique Parameters:

a) Infusion rate:0ml～999ml,≤±10%

b) Total volume:0.1ml～999ml,≤±10%

c) flow rate:1ml/h～300ml/h；

d) Infusion accuracy:At 1ml/h～50ml/h,range:1ml/h,≤±10%；

At 50ml/h～300ml/h,range 5ml/h,≤±10%

e) Power consumption:13VA

f) Size: 193mm×130mm×105mm

g) N.W:1.6kg

h) Feeding tube:Special feeding tube

Working Conditions:

a) Ambient temperature:5℃～40℃；

b) Relative humidity:30％～80％；

c) Barometric:860～1060hPa；

d) Power supply:AC220V,50Hz

e) Battery:Ni-H2 battery group 9.6V,1600mAh

Maintenance

1) Daily cleaning:Using wet cloth dip a little detergent wipes the shell,then wipe off the detergent with a clean cloth.Finally, wipe with a dry cloth to dry.

2) Replace the fuse:Unscrew 4 screws in the back pump cover open pump,then unscrew the fuse casing to replace fuse.Fuse size:0.2A(Φ5×20).

3) When don't use,Please cleaning pump case and placed on dry shelf.

4) Please full charged for don't use for long time.And examination battery before next use,to ensure the battery can work.
