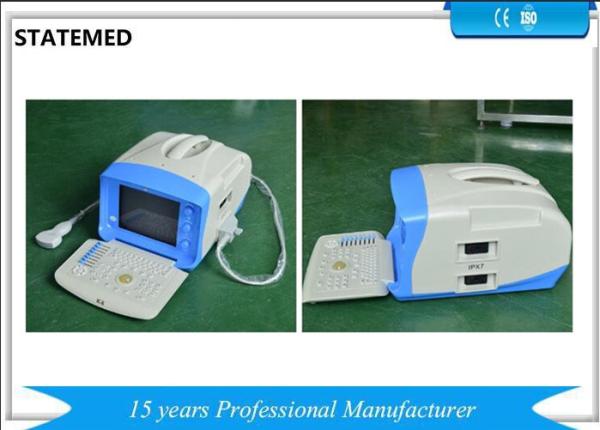

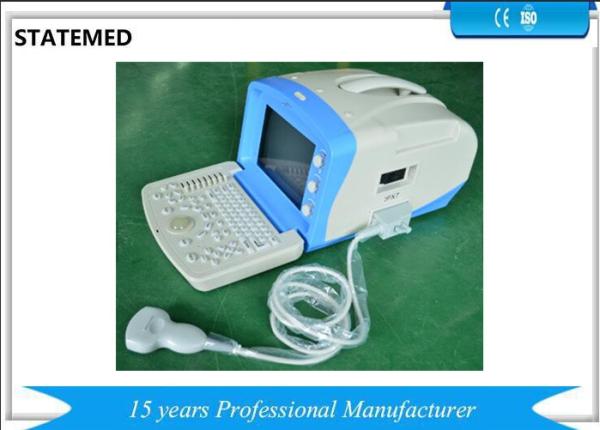

Cheap Portable Vet Ultrasound Machine CE Approved Black / White Ultrasound Scanner

Main Features:

Powerful measurement & calculation software packages

8-Segment TGC ABD Trackball adjustment

10 inch VGA monitor

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Main Technical Specification:

Scanning mode: Convex/Linear/micro-convex/Trans-rectal;

Display modes: B, B+B, B+M, M, 4B;

Scanning depth: 240mm;

Gray scales: 256;

Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;

Image conversion: up/down, left/right, black/white;

Function of puncture guide;

Max dynamic range>=100db;

Detecting depth>=190mm, scanning depth>=240mm;

The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;

Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm

Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm

Gamma: 4 gray scale Gamma transform function;

Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;

Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.

Fixed characters and real-time clock and calendar display;

Software reset function;

Printer function: can connect laser printer and Video printer directly;

Comment: Date, Name, Sex, Age, Hospital, Annotation;

Zooming: *1.0, *1.2, *1.5, *2.0;

Port: USB 2.0, VGA, Video connector;

USB Function of image store: more than Sixteen thousand images;

Power supply: AC 110V-240V, 50HZ/60HZ;

Probe connector: 2;

USB/VGA/ print ports;

Video connector;

Measurement:

Wide application: Dog and Cat: GS, HD, CRL, BD

Equine: CD, SD

Cattle: CRL, HD, HL, TD

Pig: HD, BD

Sheep: HD, TD

Standard configuration:

10 inches CRT main unit 1set;

60R/3.5MHZ Convex array probe 1pc;

Power line 1pc;

Ground line 1pc;

Fuse 4 pc;

User’s manual in English 1pc;

Warranty card 1pc;

Options:

L40/7.5MHZ Linear array probe;

20R/5.0MHZ Micro-Convex array probe;

7.5MHZ Trans-rectal probe;

Mitisubishi Video Printer P93
