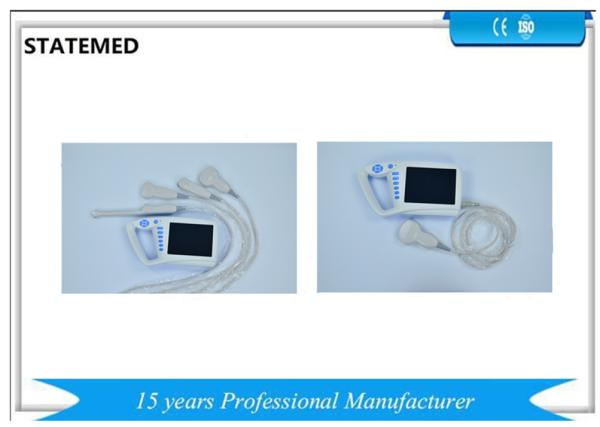

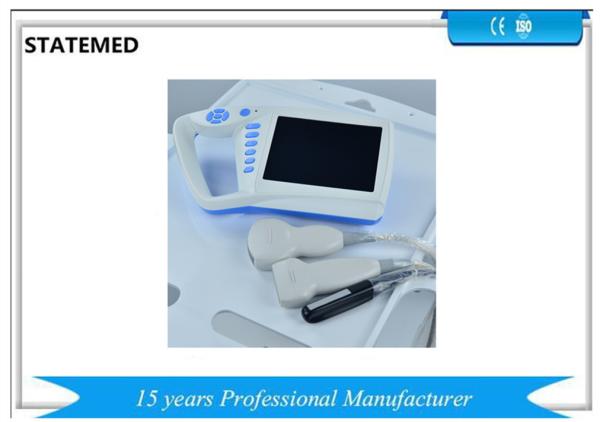

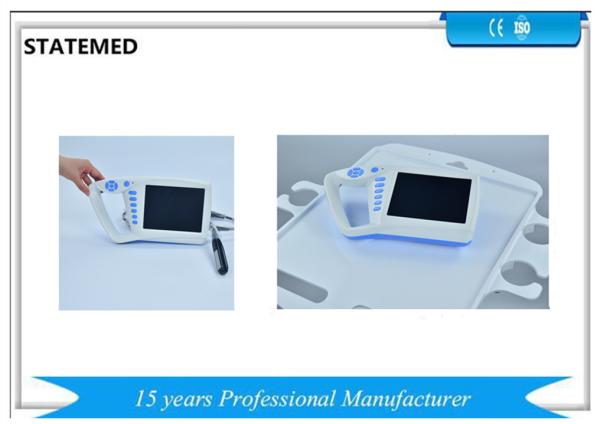

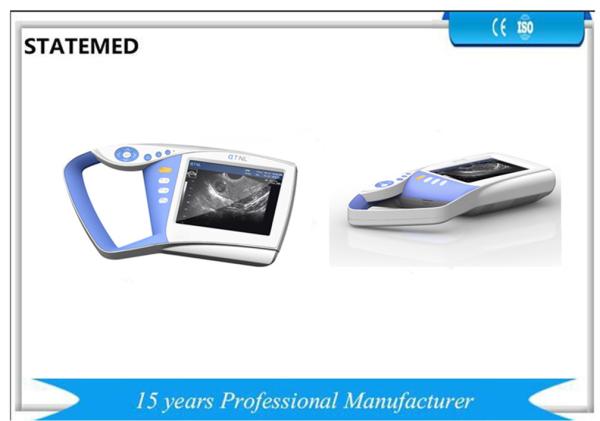

Portable Echographic Scanner/cheap Portable Veterinary Ultrasound System

Technical Parameters

Scanning mode: Electron convex array scanning,

Electron linear array scanning

Electron convex array

Five display format: B, B+B, 4B, B+M, M

Image magnification: ×1.0, ×1.2, ×1.3, ×1.5, ×1.6, ×1.8, ×2.0

L-zoom: real-time partial amplification

Depth of detection: ≥180mm

Image grey scale: 256 levels; 4-stageγcorrection

Frame: 3-stage frame function

Focus: Dynamic digital electronic focus point by point

Gain control: Full gain and 8-segment TGC

Probe Conversion: probe automatic identification

Frequency for Convex : 2.0MHz, 2.5 MHz, 3.0 MHz, 3.5 MHz, 4.0 MHz, 4.5 MHz, 5.0 MHz

Note: Hospital name, age, sex; organ automatic annotation function; Partial and full-screen character annotation function.

Display: English/Chinese conversion function; Fixed characters, real-time colock, calendar display.

Veterinary Body Mark : 5 kinds

Puncture function: puncture guide line displayed in B mode.

Measurement function: Bovine: BPD , CRL; Equine :BPD, GSD; Ovine: BPD, CRL; Canine: CRL, BD;

Feline: BD, HD. Image display: image freeze, real-time, up/down, left/right, black/white reverse.

Cine loop: 512-frame cine loop and storage.

Image storage: store 16 thousand image by USB flash.

Printing function: connect with laser printer or video printer

Power saving function

Output interface: USB interface, standard mini port (and trapezoidal interface), video printer interface

Print: machine can connect any video printers directly.

Equipment for the injection shell structure. The host uses non-frequency transformer switching power supply, and adopt to the programmable devices and surface mount technology (SMT). The whole machine with high degree of integration, excellent performance.
