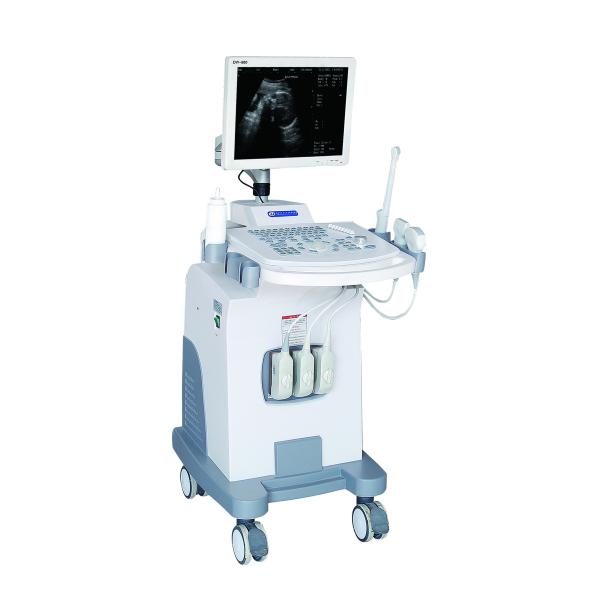

B/W Trolley Ultrasound Machine Diagnostic System for General Abdomen Scanning

Trolley based B/W full digital ultrasound, with three probe connectors, much clearer image and convenient to operate.
* 15 inch LED/LCD display

* THI and Histogram function

* Support OB Report

Display mode:

Technical Specifciations

Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format

Image reversal: up/down, left/right, black/white

Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement

OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI

OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

Various Probes:
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)

Probe frequency:

Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5.0MHz

Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】

Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm(Not finalized)】

Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,7.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm(Not finalized)】

Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm(Not finalized)】

Application

Abdomen / Obstetrics / Gynecology /

Urology / Andrology / Small Parts / Vascular /

Pediatrics / Musculoskeletal

Imaging

OB Report

Shipping and Packing

Wood carton or paper carton optional, by courier Fedex, DHL, UPS, EMS, TNT or by sea or by air

Why Choose Us

Competitive price

Strict QC system

Timely after-sale service

Fast delivery
