Specifications
Brand Name :
STATEMED
Model Number :
STT6-TBW76
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
competitive
Payment Terms :
L/C, T/T, Western Union, Alibaba Trade Assurance
Supply Ability :
100 sets per month
Delivery Time :
10 working days
Packaging Details :
carton, wooden case
Product name :
Ultrasound Machine for Pregnancy
Display mode :
B,2B,4B,BM,M
Screen :
15 Inch LED Screen
Elements :
96
Warranty :
24 month
Weight :
27KG
Certificate :
CE ISO
Main Application :
Abdomen
Probe Interface :
2
Description

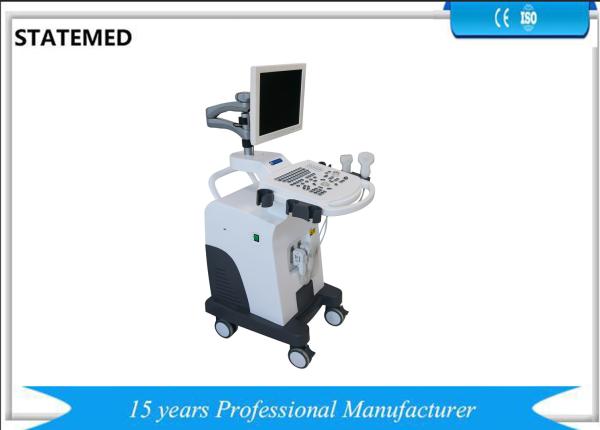

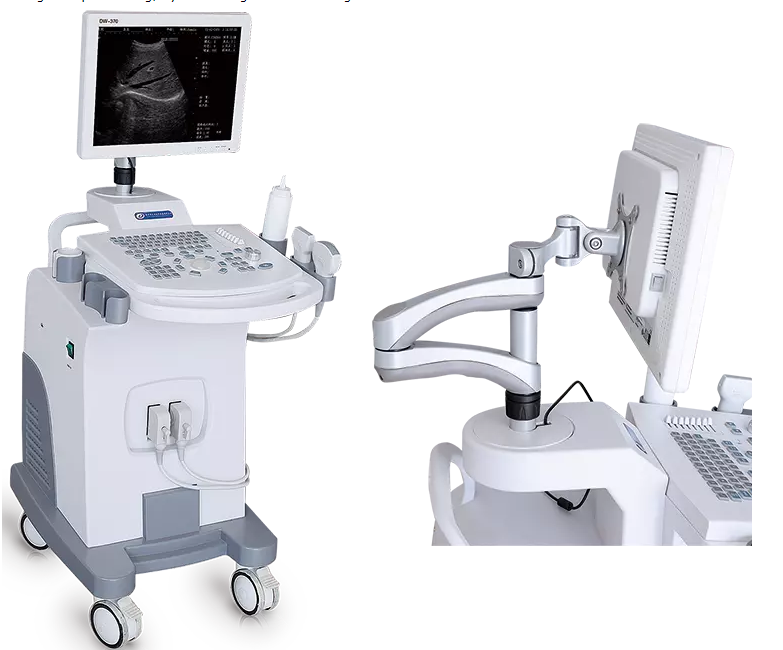

Veterinary Clinic B/W Trolley Ultrasound Diagnostic System for Small Dogs and Cats

General description

Technical Specification :
Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED

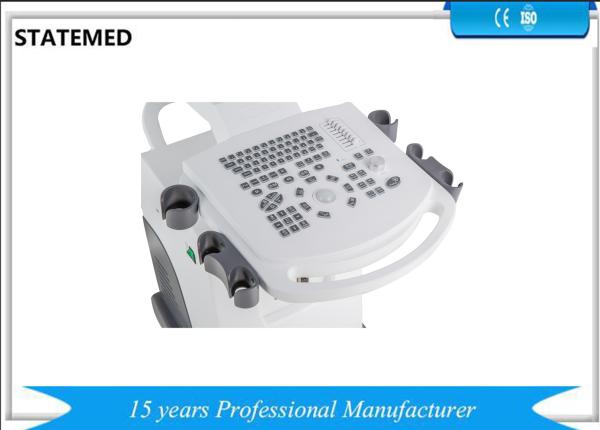

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode:

1 B
2 B+B
3 B+M
4 4B
5 M


Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks
Probe interface: 2
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function

Veterinary Clinic B/W Trolley Ultrasound Diagnostic System For Small Dogs And Cats

Interfaces

Veterinary Clinic B/W Trolley Ultrasound Diagnostic System For Small Dogs And Cats

Shipping and Packing

Wood carton or paper carton optional, by courier Fedex, DHL, UPS, EMS, TNT or by sea or by air

Payment

Veterinary Clinic B/W Trolley Ultrasound Diagnostic System For Small Dogs And Cats
