High Elements Trolley Full Digital Veterinary Ultrasound Disagnostic System​

General description

Probe for option:

Features:

Full digital image formation technology

Advanced all dynamic focusing

USB port: storable and readable

High-accuracy DSC digital scan conversion

Humanized ABS injection mould, unibody chassis

Intelligentized 8-segment TGC adjustment

Progressive SMT components technology

Unique 4B imaging modes

Reliable backlit, silica gel keyboard, photoelectric-tracking control

Specification:

Scanning mode: convex / linear / micro-convex

Probes: 80 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe

Monitor: 15 inch high resolution LED

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation

Display mode: B, B+B, B+M, M, 4B

Detecting depth: ≥242mm

Resolution: lateral≤2mm, axial≤1mm

Blind Zone: ≤3mm

Geometry precision: lateral≤5%, axial≤5%

Gray scale: 256

Electronical focusing: 2 focuses combination randomly

Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback

USB port: storable and readable

Image storage: 8

Local zoom can be used at real time.

Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)

Body marks: 30

Probe interface: 2

Pseudo color: 7

Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).

Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.

Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.

Output interface: PAL-D, SVGA (SVGA color monitor), USB port .

With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz

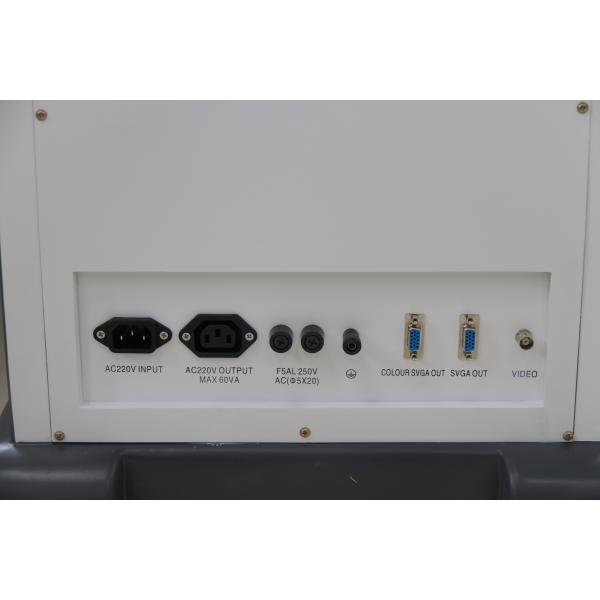

Interfaces

Scope of application

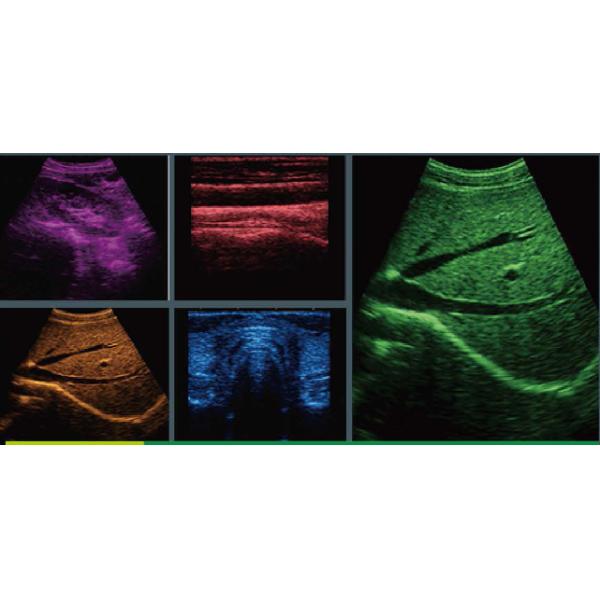

Imaging gallery

Package and Shipping

For small orders, we usually ship by air or courier, for large order, we can ship by sea
