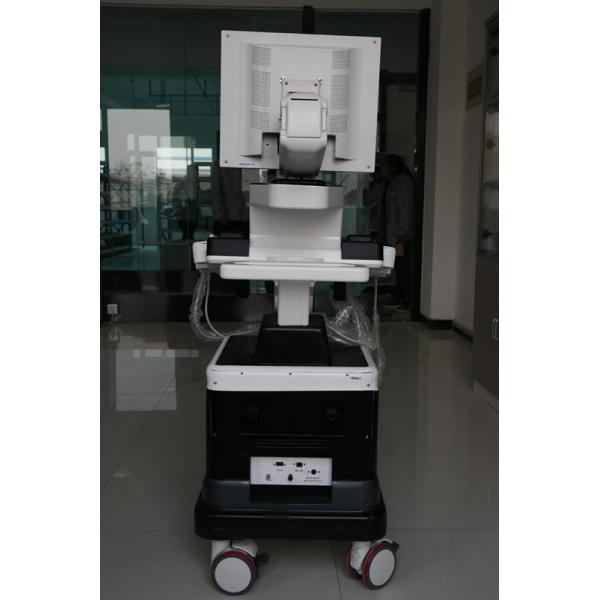

19 Inch Medical Monitor 2D 3D 4D Trolley Ultrasound Machine

Computer specs:

Windows Embedded operation system (CN,EN language)

19’’ medical monitor(1280*1024)+10.4’’ touch monitor

Intel i5 processor

4G RAM

120G SSD+500G HDD

Weight/Dimension: 119KG/97*69*141cm, 48*44*27cm

Imaging Modes: 2D, 3D, 4D, Color/PW/CW/Power/Directional Color Power Doppler,
Tissue Doppler, Color M-Mode, Free Steering
(Anatomical) M-Mode

Features:

Compound Imaging,
Speckle Reduction Imaging,
Tissue Harmonics Imaging,
4D,
Automatic Image Optimization,
Tissue Doppler,
Image optimization, Multi-Beam, IMT, Trapezoidal imaging

iBank database

DICOM Modes: Store, Print, Working list, Storage Commitment, Structured Reports

Export Options: DICOM, Ethernet, JPG/BMP/PNG,AVI,
Network Storage, USB Memory Stick.
USB DVD/CD+R(W)

Input/Output: HDMI, 2 USB Ports, Ethernet, Dicom, Built-in speakers

Transducer Types: Convex, Linear, Sector Phased, Micro Convex,
4D Volume Convex, Endocavity, Veterinary linear

Applications: Abdominal, OB/GYN, Urology, Cardiac, Vascular,
Small Parts, Pediatric, MSK

Probe Ports: 4 Active

Probe Specifications

Convex probe- Adult abdomen application

Frequency: 2.5, 3, 3.5, 4, H4, H5MHz

Power:5-100% (arithmetic progression of 5: 5,10,15...100)

Gain:0-100

Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)

Gray map:0-7

Frame correlation:0-4

Filtering:0-4

Image denoising:0-14

Scanning depth:3-27.3cm

Body mark:17

Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)

Focus point:6

Pseudo color map :0-11

Linear density:64,128,256

TSI: normal, fat, fluid, muscle

Reversal:up/down, left/right

Compound frequency: on/off

Automatic optimization: on/off

Space compound: on/off

Linear probe-Carotid application

Frequency: 6, 7.5, 8.5, 10, H10 MHz

Power:5-100% (arithmetic progression of 5: 5,10,15...100)

Gain:0-100

Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)

Gray map:0-7

Frame correlation:0-4

Filtering:0-4

Image denoising:0-14

Scanning depth:2-11cm

Body mark:13

Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)

Focus point:5

Pseudo color map :0-11

Linear density:64,128,256

TSI: normal, fat, fluid, muscle

Reversal:up/down, left/right

Steering: left/right

Trapezoid Imaging: on/off

Compound frequency: on/off

Automatic optimization: on/off

Space compound: on/off

Trans-vaginal probe:

Frequency: 4.5, 6.0, 7.0, 9.0, H8.0MHz

Power:5-100% (arithmetic progression of 5: 5,10,15...100)

Gain:0-100

Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)

Gray map:0-7

Frame correlation:0-4

Filtering:0-4

Image denoising:0-14

Scanning depth:3-11.1cm

Body mark:26

Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)

Focus point:6

Pseudo color map :0-11

Linear density:64,128,256

TSI: normal, fat, fluid, muscle

Reversal:up/down, left/right

Compound frequency: on/off

Automatic optimization: on/off

Space compound: on/off

Cardiac probe- Adult cardiac application

Frequency: 2.5, 3, 3.5, 4, H3, H4 MHz

Power:5-100% (arithmetic progression of 5: 5,10,15...100)

Gain:0-100

Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)

Gray map:0-7

Frame correlation:0-4

Filtering:0-4

Image denoising:0-14

Scanning depth:3-27.3cm

Body mark:7

Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)

Focus point: 5

Pseudo color map :0-11

Linear density:64,128,256

TSI: normal, fat, fluid, muscle

Reversal:up/down, left/right

Compound frequency: on/off

Automatic optimization: on/off

Space compound: on/off

4D probe - Obstetrics applications

Frequency: 2, 3, 4.5, 6, H5 MHz

Power:5-100% (arithmetic progression of 5: 5,10,15...100)

Gain:0-100

Dynamic range: 20-280% (geometric progression of 2 start from 20: 20,40,60...280)

Gray map:0-7

Frame correlation:0-4

Filtering:0-4

Image denoising:0-14

Scanning depth:3-27.3cm

Body mark:7

Scanning range:50-100% (arithmetic progression of 10 start from 50: 50,60,70...100)

Focus point: 6

Pseudo color map :0-11

Linear density:64,128,256

TSI: normal, fat, fluid, muscle

Reversal:up/down, left/right

Compound frequency: on/off

Automatic optimization: on/off

Space compound: on/off
