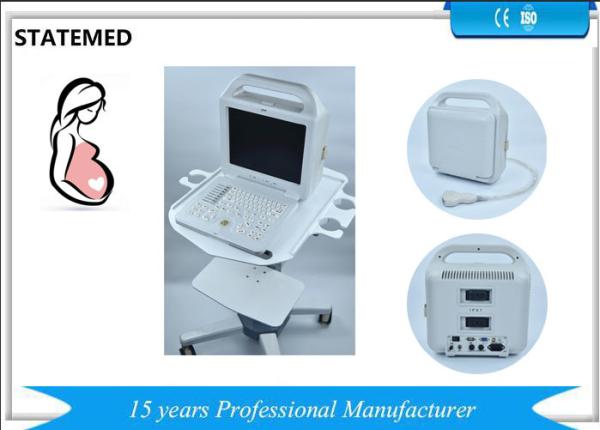

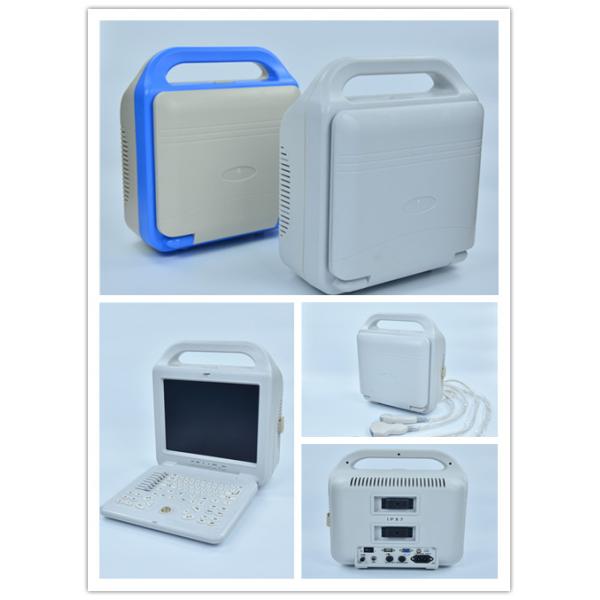

Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector
Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector
Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector
Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector
Specifications
Brand Name :
STATEMED
Model Number :
STT3-HUS28
Certification :
CE
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Price :
competitive
Payment Terms :
T/T, Western Union, trade assurance order throung alibaba
Supply Ability :
300 sets per month
Delivery Time :
10 working days
Packaging Details :
export carton
Product Name :
Human Use black and white ultrasound machine
Probe connector :
2
Disply Size :
12 inch
Port :
USB 2.0, VGA, Video connector
Scanning depth :
240mm
Scanning mode :
Convex/Linear/Micro-convex/ Transvagional
Description

Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector

Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector

Main Features:
Powerful measurement & calculation software packages
8-Segment TGC ABD Trackball adjustment
12 inch LCD monitor
Permanent function of image store: 32 images
Back-lit keyboard
OB measurements: BPD, GS, CRL, FL, AC, HC, etc

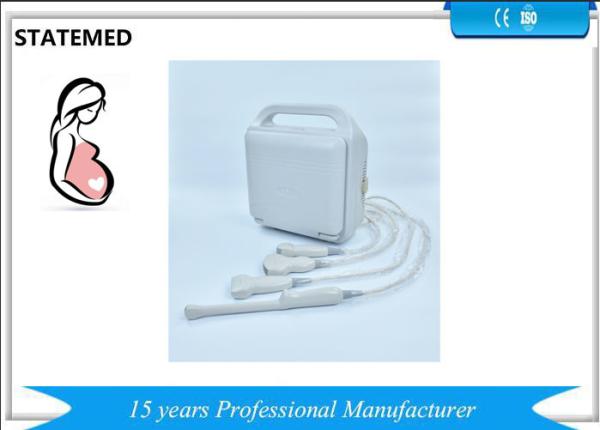

2 probe connectors
Probe automatic identification
Main Technical Specification:
Scanning mode: Convex/Linear/Micro-convex/ Transvagional;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);
Gamma: 4 gray scale γ transform function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;
　
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video printer connector;

Human Use 12 Inch Laptop black and white ultrasound machine with 2 Probe Connector
