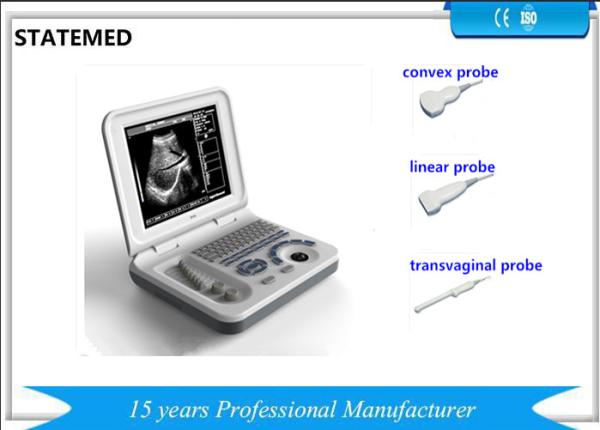

Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test
Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test
Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test
Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test
Specifications
Brand Name :
STATEMED
Model Number :
STT2-BWU74
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
competitive
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
500sets/month
Packaging Details :
1set/carton
Product name :
Mini ultrasound scanner
Display mode :
B;B/B;4B;B +M;M
Dynamic range :
0~120db adjustable
Focus position :
Dynamic electron focusing
Permanent storage :
128 images
Output interface :
USB port
Description

Medical Multi Language Pregnancy Test Portable Ultrasound Scanner for Hospital

Main technical specification:

Display mode B;B/B;4B;B +M;M
Display size 10.4inch LED displayer
Image multiplying factor 3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom: Magnify 2 times of real time image
Dynamic range 0~120db adjustable
Focus position Dynamic electron focusing
Image proessing 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function: Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Permanent storage 128 images
Output interface USB port
Standard configuration Ultrasound machine with 3.5Mhz convex array probe and power adapter
Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test
Hospital Medical Portable Ultrasound Device Multi Language For Pregnancy Test

We can offer

1. Professional manufacture more than 15 years
2. All models in stock
3. Fast delivery by any available shipping, delivery express DHL, TNT, Fedex, UPS, etc., by Sea, by Air
4. Flexiable payment, by credit card(visa & master card), e-Checking, Paypal, Westunion, bank transfer, etc.
