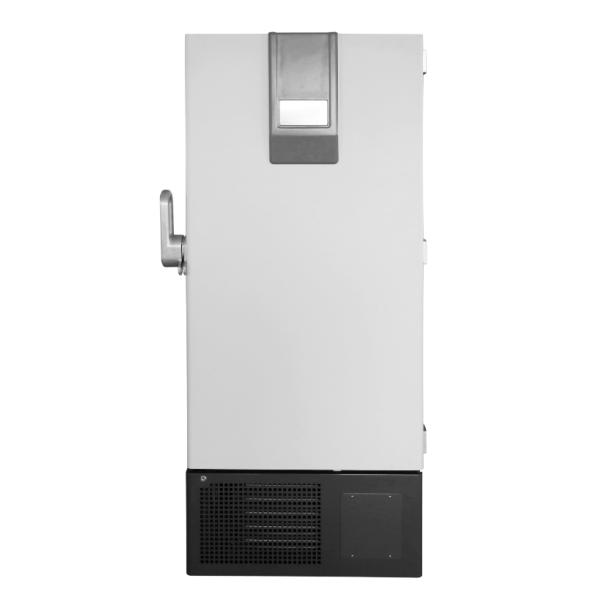

Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand
Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand
Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand
Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand
Specifications
Brand Name :
STATEMED
Model Number :
STT-86L480
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD1500-5000/set
Payment Terms :
T/T, L/C, Western Union, Credit Card, MoneyGram
Supply Ability :
600 sets / month
Delivery Time :
15-30 days
Packaging Details :
Wooden carton or Paper carton for Deep Freezer
Type :
Freezer
Capacity :
280L, 360L, 480L, 590L, 840L
Refrigerant :
CFC-Free
Temperature :
-40~-86 degree
Dispay :
Digital LED Display
Cooling Type :
Direct Cooling
Power supply :
220v/50Hz
Controller :
Micro Processor
Alarm Mode :
Sound and Light alarm, Remote alarm
Description

480L Upright Stand Laboratory Ultra Low Temperature Deep Freezer -86 Degree

-86 degree celsius ultra low temperature freezer is specially designed for long term storage of various biological products like virus, germs, erythrocytes, leukocytes, sperm, skeleton, skin, and other biological products. It is also widely used for ULT storage of ocean products, electron devices and other special materials.

Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand

1. Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high efficient refrigeration effect;

Specially designed Heat Exchanger, heat transfer high efficient, save Energy;

CFC-Free overall situ polyurethane foaming insulation;

CFC-Free refrigerant

2. Temperature Control

Microprocessor control, digital display of inner temperature, the inner temperature can be adjustable at the range of -10℃~-86℃;

LCD running status and alarm information;

Over temperature alarm system, set the alarm temperature as requirements.

3. Safety Control

Malfunction malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, Door jammed, low valtage of backup battery;

Two alarming methods: buzzer alarming and digital flashing alarming;

Protection function: power-on delay, time between stops.

4. Ergonomic Design

Safety door lock, preventing unauthorized access;

Wide voltage design from 187V to 242V;

Maintenance free condensor design;

25mm access port;

Pressure-balanced port design, easy to open the door;

Heavy type caster and locking adjustable screw, easy to move and fix.

Technical Parameters of -86 Degree Cryogenic Upright Freezers

Model STT-86L480
Technical Data Cabinet Type Vertical
Climate Class N
Cooling Type Direct cooling
Defrost Mode Manual
Refrigerant CFC-Free, Mixing
Performance Cooling performance(℃) -86
Temperature Range(℃) -40~-86
Material Exterior Material Galvanized steel powder coating
Interior Material Galvanized steel powder coating/stainless steel
Insulation Material PUF+VIP
Dimensions Capacity(L) 480L
Interior Dimensions(W*D*H) 600x580x1310
Exterior Dimensions(W*D*H) 780x780X1920mm
Thickness of Cabinet Foamed Layer Four walls and top with 90mm, bottom with 130mm
Thickness of Door 90mm
Capacity for 2 inch boxes 320
Inner door 2
Power Supply(V/Hz) 220V/50Hz(110V/60Hz)
Controller Functions Display 7’’ LCD touch screen
High/Low Temperature Y
Remote Alarm Y
Hot Condenser Y
Power Failure Y
Sensor Error Y
Low Battery Y
High Ambient Temp Y
Door Ajar Y
Accessories Caster Y
Test Hole Y
Shelves(stainless steel) 3
Chart Temperature Recorder Optional
Door locking device Y
Handle Y
Pressure balance hole Y
USB Interface Y
Racks & Boxes Optional

Application Scene
Blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.
Packing

Standard shock-proof paper carton, with wooden carton for sea shipment.

Wood carton package is available.

Customized package welcomed.

Laboratory Ultra Low Temperature Deep Freezer -86 Degree 480L Upright Stand

Our Advantages

1. Skilled international sales team with more than 10 years

2 ISO9001, ISO13485 certified factory, most freezers are CE, UL certified

3. OEM, ODM service welcomed, professional technical team

4. Competitive price for high quality product

5. Return policy

6. Warranty for 24 months

7. 7*24 hours pre-sales and after-sales services
