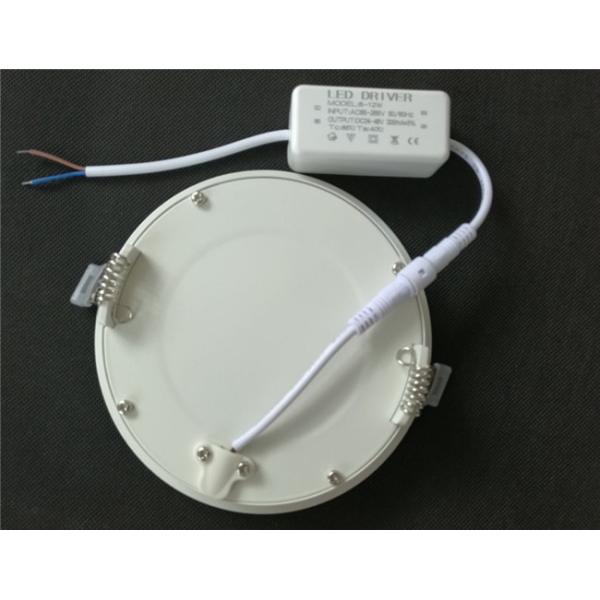

Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving
Specifications
Brand Name :
Xiangteng
Model Number :
XT-FSAZ-9W
Certification :
BIS CE
Place of Origin :
China
MOQ :
1000pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Power factory :
0.5
Input :
AC85-265V 50/60Hz
Output :
DC24-48V 300mA±5%
TC :
85℃
TA :
40v
Wattage :
9W
Description

9W Anti-Glare Flicker Free Round/ Square LED Panel Light for LED lighting


SLIM ANTI-GLARE LED PANEL SERIES

It has an anti-glare diffuser with excellent unified glare rating (UGR).

Slim profile light panels are fast replacing the traditional fluorescent recessed ceiling fittings and offer a massive 50% saving on energy .

As the light panel fits flush to the ceiling, there is no light loss or shadows .

In addition the panels are only 8mm deep and therefore offer no restrictions for ceiling void where space is at a premium.

All panels come with a standard 2-year trusted warranty .

Features

• Edge lit design provides uniform light delivery

• Seamless white-powder coated frame adds to the appearance

• Enhanced visual comfort via highly transmissive light guide plate

• Slim profile creates elegant look for surface mount & suspended installations

• Extruded aluminium housing provides effective heat sinking

• High colour rendering of CRI>80

• 4000K & 5000K CCT standard with 3000K & 6000K optional


Specification

Model No Power

Dimmension
(mm)

Cut Size
(mm)

 Power Factor

Light Eifficiency
(lm/w)

 CRI
XT-FXAZ-5W.R 5W Ø90 * 30 Ø75 0.5 >80 >70/80
XT-FXAZ-9W.R 9W Ø120 * 30 Ø105 0.5 >80 >70/80
XT-FXAZ-12W.R 12W Ø140 * 30 Ø125 0.5 >80 >70/80
XT-FXZA-16W.R 16W Ø175 * 30 Ø155 0.5 >80 >70/80
XT-FXZA-22W.R 22W Ø225 * 30 Ø205 0.5 >80 >70/80
XT-FXAZ-5W.SQ 5W Ø90*90*30 75*75 0.5 >80 >70/80
XT-FXAZ-9W.SQ 9W Ø120*120*30 105*105 0.5 >80 >70/80
XT-FXAQ-12W.SQ 12W Ø140*140*30 125*125 0.5 >80 >70/80
XT-FXAQ-16W.SQ 16W Ø175*175*30 155*155 0.5 >80 >70/80
XT-FXAQ-22W-.SQ 22W Ø225*225*30 205*205 0.5 >80 >70/80

Anti Glare 9 Watt Led Panel Light Flicker Free Round Square DC 24-48V Energy Saving


Anti glare panel light Application

Anti-glare LED panels are perfect for use in offices , meeting rooms , hotels and hallways .etc
