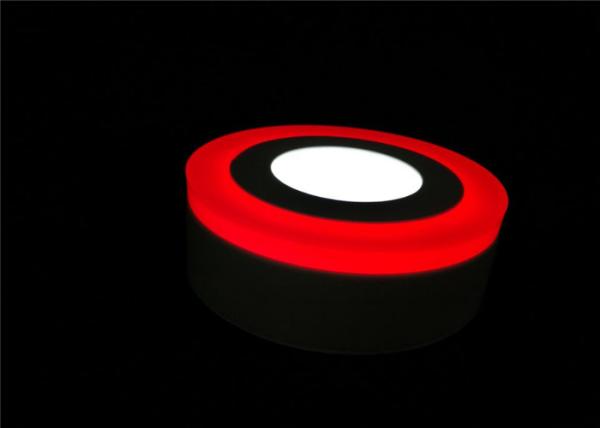

Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Surface Mount Round Slim Led Panel Light Two Color Eco Friendly White With Red Edge Lit
Specifications
Brand Name :
Xiangteng
Model Number :
Surface Double color panel light
Certification :
BIS
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Input :
AC85*-265V 50/60Hz
Output 1 :
DC6-20V 300±5%D
Output 2 :
DC6-20V 300±5%D
Ta :
50 ℃
Tc :
80 ℃
Lamp Power :
6W
Mounted Method :
Surface
Description

Surface Mounting Round 3W+3W Two Color Eco-friendly White with Red Edge Lit

Double color panel light features

1. More compact structure, cuter appearance

2. Excellent heating sink, better cooling performance

3. Combine COB and SMD light source , widely usage

4. Multiple color options : white , red , blue , green , pink , and warm white for circle light

5. No Mercury and other hazardous materials, fully RoHS-compliant

6. Constant lighting protects your eyes

Specification for 3+3W White + Red Panel Light

Item No: XT-SSM-3+3W
Item Name: Red Edge Ring 10.5cm 6W LED Ceiling Panel Light
Lamp Power: 6W
Dimensions: Ø105mm ˣ 40mm
Cutout Size: Ø105mm
Material: Die cast aluminium + PC
Luminous Flux: White Light : 180-210 lms
Input Voltage: AC85-265V
Output1: DC6-20V 300±5%
Output2: DC6-20V 300±5%
Frequency Range: 50/60Hz
LED Type: 2835 SMD
Color Rendering Index(CRI): Ra>70/80
Power Factor(PF): >0.5
Beam Angle: 120°
Working Lifetime(Hour) : >40000 hrs
IP Rate : IP40
CCT: 6000K
Luminous Efficiency: 60-75lm/w
TC: 80°C
TA: 50°C (max)
Warranty: 2 years

Attention

1. The product should be installed by trained electricians

2. Product and flammable materials to ensure at least 0.2m distance , to ensure that the installed zenith

There are 2 centimeters high gap , lamps are installed in the ceiling which cannot be touched

3. Non professional personnel shall not disassemble , repair , we have the right to dismantle , repair

Products for replacement or warranty service

Parameter Table

Wattage 3W+3W 6W+3W 12W+4W 18W+6W 24W+12W 36W+36W
Product Size Ø105×40 Ø145×40 Ø190×40 Ø240×40 Ø320×40 Ø390×40
Lumens 180-210lms 420-480lms 840-960lms 1260-1440lms 1680-1920lms 2520-2880lms
Driver Isolated
Dimmable: No
Light Colours Cool white / blue / green / pink / red / warm white

Decorative Applications

1. Conference / meeting rooms

2. Factory / office

3. Commercial purposes

4. Residential / institution buildings

5. Schools , colleges and universities

6. Supermarket lighting
