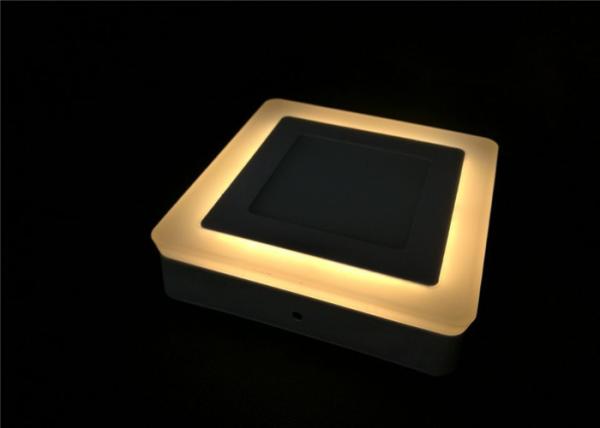

Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Ceiling Double Color Led Panel 9W Surface Spotlight White + Yellow Edge Lit
Specifications
Brand Name :
Xiangteng
Model Number :
Double color panel light
Certification :
BIS
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Product :
Colored Panel
Size :
145mm * 145mm
Bulb Type :
LED
Operating Voltage :
Driver Supplied
Light Color :
white / warm white / green / pink / red / blue
Power :
6W+3W
Dimmable :
No
Use :
Indoor use only
Description

9W LED Surface Dual Color Ceiling Light Panel Spotlight White+Yellow Edge Lit

Advantages for 6W+3W Surface Square Dual-Color LED Panel Light

• Super bright inside square white light + soft outside edge warm white light , perfect lighting for stores, supermarkets , exhibitions , dance halls , hotels , restaurants , bars , kitchen , parlor , bedroom and other lighting and decoration.

• 3 Modes: White light on; edge light on; dual color light on.

• Beam Angle: 120 degrees

• More than 3 times energy saving compare to traditional energy saving bulb
• Long life span more than 40,000hrs. 85% Energy-saving and environment-friendly.
• Safe and easy to install, no warm up time required, no noise and no flickering.

Specification Table

Item No: XT-SSM-6+3W.SQ
Item Name: Yellow Edge Square Surface 9W LED Panel Light
Lamp Power: 6W(cool white) + 3W(warm white)
Dimensions: 145mm (W) ˣ 145mm (L) ˣ 40mm(H)
Colours Optional white+pink / white+green / white+red / white+warm white
white+blue / white+white
Material: Die Cast Aliminium + PC
Luminous Flux: Spot White Light : 420-480 lms
Input Voltage: AC85-265V
Output1: DC 6-20V 300±5%
Output2: DC 15-28V 300±5%
Frequency Range: 50/60Hz
LED Type: 2835 SMD
Color Rendering Index(CRI): Ra>70/80
Power Factor(PF): >0.5
Beam Angle: 120°
Working Lifetime(Hour) : >40000 hrs
IP Rating : IP40
Color Temperature: 6000K
Luminous Efficiency: 65-80lm/w
TC: 80°C
TA: 50°C (max)
Warranty: 2 years

Particulars
• In dual colour 3 switch modes
• Simple yet elegant design for both home and commercial use
• Professional high quality panel
• 2 year warranty
• Use good quality LED , resistance light falling
• Highly-efficient electronics ballast ensure to long lifespan using
More Watt to meet your full demand

Shape Installation Model No Wattage (W) Size (mm)

Round

Surface

 XT-SSM-3+3W.R 3W+3W Ø105×40
XT-SSM-6+3W.R 6W+3W Ø145×40
XT-SSM-12+4W.R 12W+4W Ø190×40
XT-SSM-18+6W.R 18W+6W Ø240×40
XT-SSM-24+12W.R 24W+12W Ø320×40
XT-SSM-36+36W.R 36W+36W Ø390×40

Square

Surface

 XT-SSM-3+3W.SQ 3W+3W 105×105×40
XT-SSM-6+3W.SQ 6W+3W 145×145×40
XT-SSM-12+4W.SQ 12W+4W 190×190×40
XT-SSM-18+6W.SQ 18W+6W 240×240×40
XT-SSM-24+12W.SQ 24W+12W 320×320×40
XT-SSM-36+36W.SQ 36W+36W 390×390×40

Application

• Living room , bedroom , kitchen,

• Conference , meeting room , show room , showcase

• School , university , hospital , hotel

• Supermarket , department store

• Emergency and security lighting , advertisement sign lighting

• Decorative lights for holiday , event , and show exhibition
