Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Ceiling Surface Mounted Led Panel Light Double Color White Green Square 6W 3W
Specifications
Brand Name :
Xiangteng
Model Number :
Double color panel light
Certification :
BIS
Place of Origin :
China
MOQ :
500pcs
Supply Ability :
5000pcs/day
Delivery Time :
30 days
Packaging Details :
color box, standard export carton
Material :
Die Cast ALuminium +Light Guide Plate + Diffuser Plate
LED Type :
SMD 2835
Operating Temperature :
-10℃ - +50℃
Centre Color :
Cold White / Nature White / Warm White
Working Voltage :
AC 85-265V
Light Angel :
120 degrees
IP Rate :
IP40
Edge Colors :
white / warm white / green / red / pink / red / blue
Description

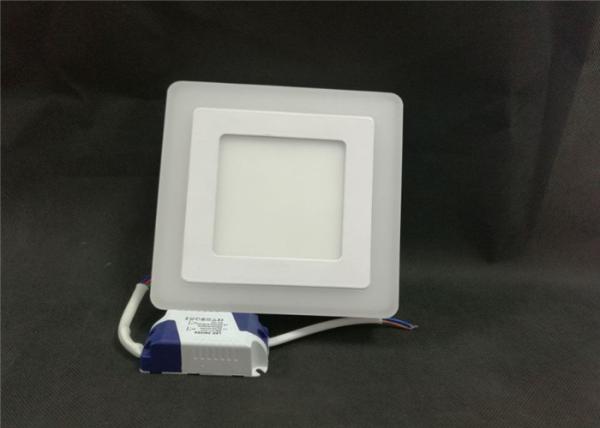

Ceiling Led Panel Light Double Color White+Green Square Surface Mounting 6W+3W

Superb Features for 6W + 3W Square Green Edge Surface Mount LED Panel Light

Yes , it’s incredible ! just to switch on this light and you’ll achieve a stunning Green and white LED lighting display , to flick the switch once more for a dazzling white alone , and again for just Green. Double color panel lights are used specially for special lighting such as decorative lights for holiday , event , show exhibition , hotels , clubs , and shipping malls .

The most importance is that you can choose the light way you like , its fitting will actually save you energy . Indeed, the inner LED will consume just 6 watts while the outer ring requires 3 watts making a total 9 watts for all these great features.

Unlike traditional bulbs , you won’t have to worry about replacing these built-in LEDs because they have an incredibly long life expectancy. Yes, with a 40,000 hour lifespan, it can work for about 14 years according to 8 hours each day.

This creates a highly modern effect, cemented by the fact that you can choose whether you want each one on or not! When you switch it on, both lights will be on. Switch it off and back on, and only the cool white (6000K) light will be on.

Specification Table

Item No: XT-SSM-6+3W.SQ
Item Name: Green Edge Square Surface 9W LED Panel Light
Lamp Power: 6W(cool white) + 3W(green)
Dimensions: 145mm (W) ˣ 145mm (L) ˣ 40mm(H)
Colours Optional white+pink / white+green / white+red / white+warm white
white+blue / white+white
Material: Die Cast Aliminium + Light Guide Plate
Luminous Flux: Spot White Light : 420-480 lms
Input Voltage: AC85-265V
Output1: DC 6-20V 300±5%
Output2: DC 15-28V 300±5%
Frequency Range: 50/60Hz
LED Type: 2835 SMD
Color Rendering Index(CRI): Ra>70/80
Power Factor(PF): >0.5
Beam Angle: 120°
Working Lifetime(Hour) : >40000 hrs
IP Rating : IP40
Color Temperature: 6000K
Luminous Efficiency: 65-80lm/w
TC: 80°C
TA: 50°C (max)
Warranty: 2 years

Attention

1. The product should be installed by trained electricians.
2. Product and flammable materials to ensure at least 0.2m distance, to ensure that the installed zenith .
There are 2 centimeters high gap , lamps are installed in the ceiling which cannot be.
3. Non professional personnel shall not disassemble or repair this unit.
4. For indoor lighting only

More Watt to meet your full demand

Shape Installation Model No Wattage (W) Size (mm)

Round

Surface

 XT-SSM-3+3W.R 3W+3W Ø105×40
XT-SSM-6+3W.R 6W+3W Ø145×40
XT-SSM-12+4W.R 12W+4W Ø190×40
XT-SSM-18+6W.R 18W+6W Ø240×40
XT-SSM-24+12W.R 24W+12W Ø320×40
XT-SSM-36+36W.R 36W+36W Ø390×40

Square

Surface

 XT-SSM-3+3W.SQ 3W+3W 105×105×40
XT-SSM-6+3W.SQ 6W+3W 145×145×40
XT-SSM-12+4W.SQ 12W+4W 190×190×40
XT-SSM-18+6W.SQ 18W+6W 240×240×40
XT-SSM-24+12W.SQ 24W+12W 320×320×40
XT-SSM-36+36W.SQ 36W+36W 390×390×40
