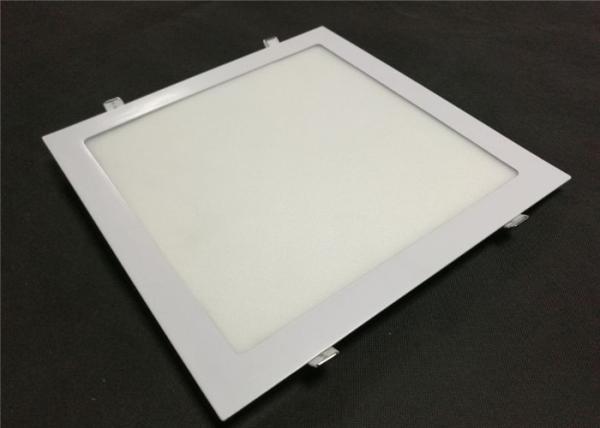

Super Bright Ultra Slim Square Flush mount 24 watt 30x30cm Led Panel Lighting
The same technology that drives LED flat panels is now being used to bring new options to the recessed product lines . These ultra-thin LED recessed lights can be used to light everything from attics to basements as well as office spaces and corridors . Their thin design lets them fit in even the tightest spaces and they can be installed from below , saving countless man hours and having to crawl around in attics .
Xiangteng has recently added the full line of Star LED's ultra-thin recessed panel lights . These are available in sizes from 2.5" to 12" with some models coming in both round and square versions . You can use the small ones to add accent lighting to living or office spaces while the larger ones can be used to quickly add ample lighting to bathrooms , closets and corridors .
Design Features
• Beam angle: 120°
• Power: 3W 4W 6W 9W 12W 15W 18W 20W 22W
• Voltage: AC 85-265V
• Shape: Square
• Color Temperature: 3000K 4000K 5000K 6000K
• 2 years warranty
Product Advantages
LED based Lighting Solution : Long lasting LED lighting solution with energy saving > 50%*
Pressure die cast aIuminum housing : Epoxy White Powder coated Light weight corrosion resistant surface mounted diecast aluminum housing luminaire with mid power LED
High Efficiency Diffuser : High quality PMMA diffuser with highly reflective Light Guiding Plate for glare free & uniform light distribution
Long Life : Long Life of 50,000 Hrs at L70 with easy installation & low maintenance
Mounting : Suitable for Surface mounting.
|
|
Model |
|
Actual watt (±5%) |
Dimmesion |
Cut Size |
LED QTY (pcs) |
Input volt (V) |
Output Volt (V) |
Output Current (mA) |
|
CRI |
Lumen |
lm/w |
|
|
2.5" |
3W | 2.8W | 88*88*18.5 | 70*70 | 15 |
|
9-12V | 250-260 |
|
|
115-141 | 45 |
3" |
4W | 3.8W | 110*110*18.5 | 90*90 | 20 | 12-24V | 260-270 | 154-188 | 45 | |||||
3.5" |
6W | 5.7W | 118*118*18.5 | 100*100 | 30 | 12-24V | 260-270 | 257-314 | 50 | |||||
4" |
9W | 8.6W | 145*145*18.5 | 130*130 | 46 | 18-36V | 270-280 | 423-517 | 55 | |||||
5" |
12W | 11.5W | 170*170*18.5 | 150*150 | 60 | 24-50V | 270-280 | 667-815 | 65 | |||||
6" |
15W | 14.5W | 193*193*18.5 | 170*170 | 76 | 36-63V | 280-290 | 834-1019 | 65 | |||||
8" |
18W | 17W | 223*223*18.5 | 200*200 | 90 | 36-63V | 280-290 | 1077-1317 | 70 | |||||
9.5" |
20W | 19W | 235*235*20 | 225*225 | 100 | 45-80V | 280-290 | 1197-1463 | 70 | |||||
12" |
24W | 23W | 300*300*22 | 275*275 | 120 | 54-84V | 280-290 | 1436-1756 | 70 |
Applications
Living Room , Bathroom , Dining Room , Home Office / Study , Bedroom , Kitchen
